FRS24ZGHW3 06 – CONTROLS

FRS24ZGHW3 06 – CONTROLS

Written by

in

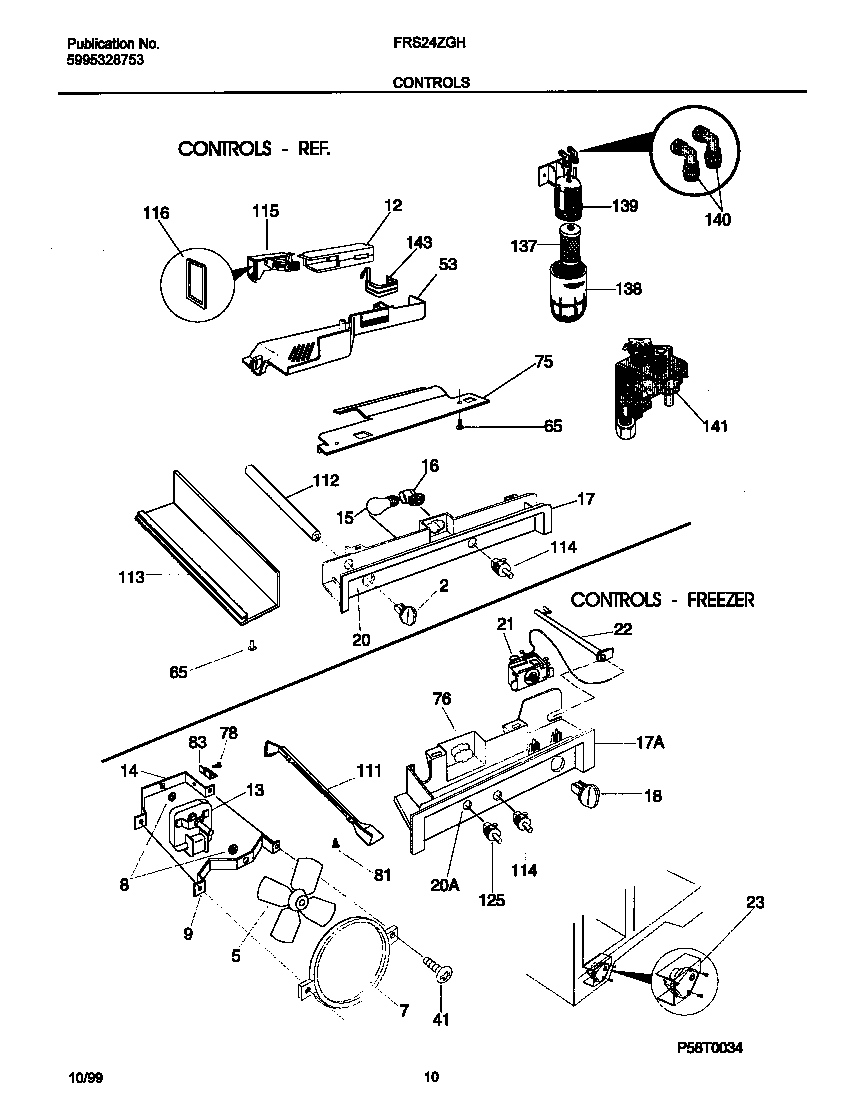

FRS24ZGHW3 06 – CONTROLS

Products

PositionProduct
*124325304455649 Frigidaire Refrigerator Screw
*12429215474201 Frigidaire Refrigerator Washer
*12434NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*12433SHIELD-DEFROST TIMR,BTM
*12430WCI 218731102
*12435WIRING HARNESS,FILTER HEATER
*12431COVER-DEFROST TIMER, TOP
2WCI 5303307883
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
12WCI 215809600
13WCI 215426200
14BRACKET-MOTOR MTG, REAR
15316538904 Frigidaire Oven Lamp Light
16241559801 Frigidaire Light Socket Refrigerator
17ACONTROL BOX, FRZR
17BSCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000,REFR/FRZR
17WCI 218468701
18WCI 5303307882
20WCI 5303307888
20WCI 5303307884
21WCI 5303300027
22WCI 5303319683
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
415308000039 Frigidaire Refrigerator Screw
53WCI 215809511
65WCI 5303001361
75WCI 218465101
76WCI 218225800
785304455651 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
111WCI 5303297842
112WCI 215277102
113COVER – DMPR ROD EXT
1145303289051 Frigidaire Refrigerator Light Switch
115WCI 215011502
116WCI 215011400
137WCI 215334201
138240434401 Frigidaire Refrigerator Water Filter Cup Primary
139WCI 218893201
140WCI 218518700
141A218832401 Frigidaire Water Inlet Valve
141BScrew-solenoid valve,hx hd-slot wshr ,12-24 x 3/4
143WCI 218696700
