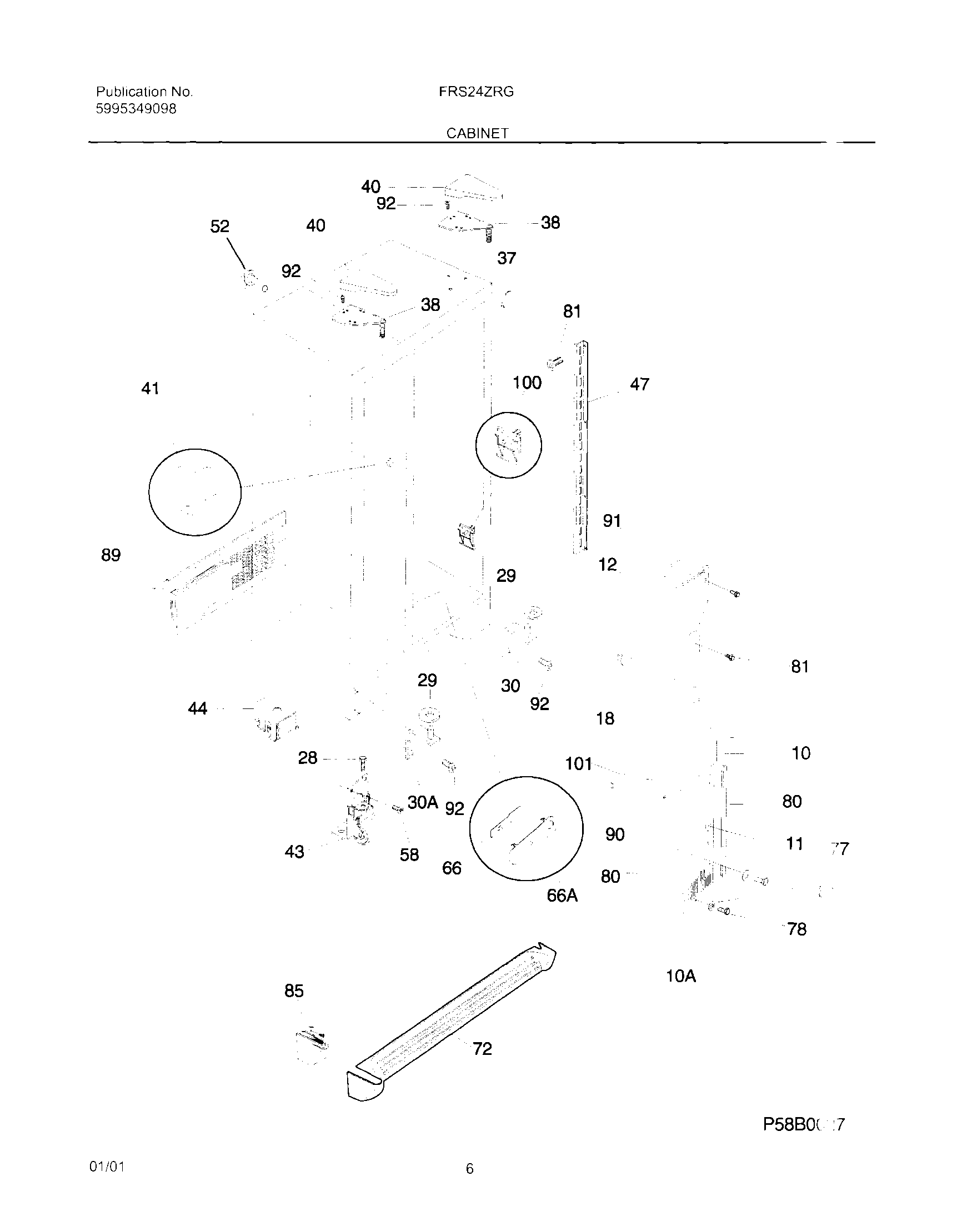

FRS24ZRGW1 07 – CABINET

Products

Position	Product
NI	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
NI	WCI 218730800
NI	WASHER, .28 X .62 X .19, NYLON
NI	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
NI	WCI 5303322647
NI	SUPPORT-AIR DUCT CVR,1.83“ LONG
NI	PLUG, BUTTON, CABINET LINER (NI)
NI	5303321319 Frigidaire Refrigerator White Touch Up Paint
NI	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
10	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10	WCI 215637602
10	WCI 215637401
11	5303208309 Frigidaire Refrigerator Plug Hole
12	5303001147 Frigidaire Refrigerator Plug-Harness Hole
18	WCI 5303289043
28	WCI 5303289062
29	WCI 215003200
29	WCI 215314301
30	WCI 218730700
30	BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30	WCI 215009000
37	WCI 5303321081
38	WCI 218215213
38	BRACKET-UPPER HINGE, WITH CLOSER, WHITE, LH
40	WCI 5303318773
41	5304509705 Frigidaire Refrigerator Grommet
43	WCI 218615300
44	WCI 218738300
47	WCI 218659500
52	TUBE-WATER,ICE MOLD FILL ,ELBOW
66	WCI 218171301
66	WCI 215050201
71	218515401 Frigidaire Refrigerator Clip
72	WCI 218359601
77	WASHER-NYLON,3/16 X 5/8 OD
78	5304455651 Frigidaire Refrigerator Screw
80	WCI 218249802
81	5304455650 Frigidaire Refrigerator Screw
85	WCI 218359801
89	WCI 215176300
90	WCI 215022602
91	WCI 218836401
92	241710601 Frigidaire Refrigerator Screw
100	SUPPORT-PAN COVER
101	WCI 215305702
