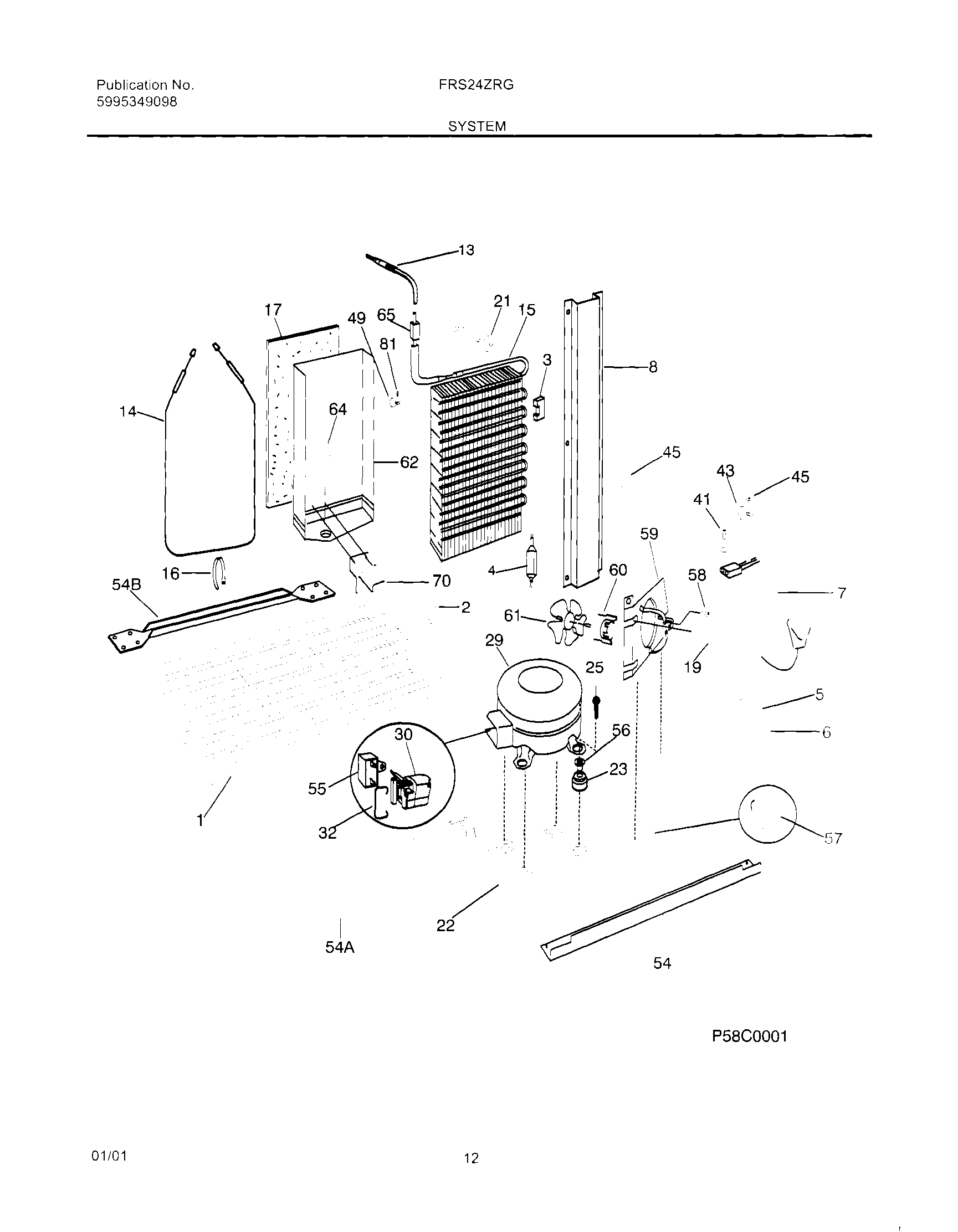

FRS24ZRGW1 13 – SYSTEM

Products

Position	Product
NI	TUBE-INLET (NOT ILLUSTRATED)
NI	WCI 5303917166
NI	SPACER-COND TUBE,BLACK
NI	WIRING HARNESS,FRZR CONTROLS
NI	SCREW,HEX HD SER WSHR ,8-18 X 0.375
NI	WIRING HARNESS,REFR CONTROLS
NI	SPACER TUBE
NI	5308000133 Frigidaire Refrigerator Clamp
NI	5304455852 Frigidaire Refrigerator Screw
NI	WCI 215004700
NI	WIRING HARNESS,FILTER HEATER
NI	WCI 215004800
1	WCI 218787900
2	WCI 5303289029
3	WCI 218679603
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	WCI 218646100
6	Wiring Harness,w/valve diodes
7	WCI 215459201
8	WCI 218803400
13	WCI 215746800
14	218169802 Frigidaire Refrigerator Defrost Heater
15	WCI 218691301
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	WCI 5303289496
19	WCI 218631200
21	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22	WCI 218811100
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	WCI 218773500
29	WCI 5303917933
30	WCI 216008903
31	WCI 5303322093
32	218762900 Frigidaire CLAMP
41	5308000039 Frigidaire Refrigerator Screw
43	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
45	5304455651 Frigidaire Refrigerator Screw
45	WCI 218769200
49	WCI 215506900
54	WCI 5303289292
54	WCI 5303289311
54	WCI 5303289027
55	CAPACITOR-RUN,210-230 VAC ,15 MICROFARAD
56	WCI 218769300
57	WCI 218247300
58	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59	WCI 5303289031
60	WCI 215501901
61	WCI 5303289032
62	WCI 215048701
64	241957901 Frigidaire Refrigerator Tube-Drain
65	WCI 5303289301
70	WCI 5303289041
81	5304455650 Frigidaire Refrigerator Screw
