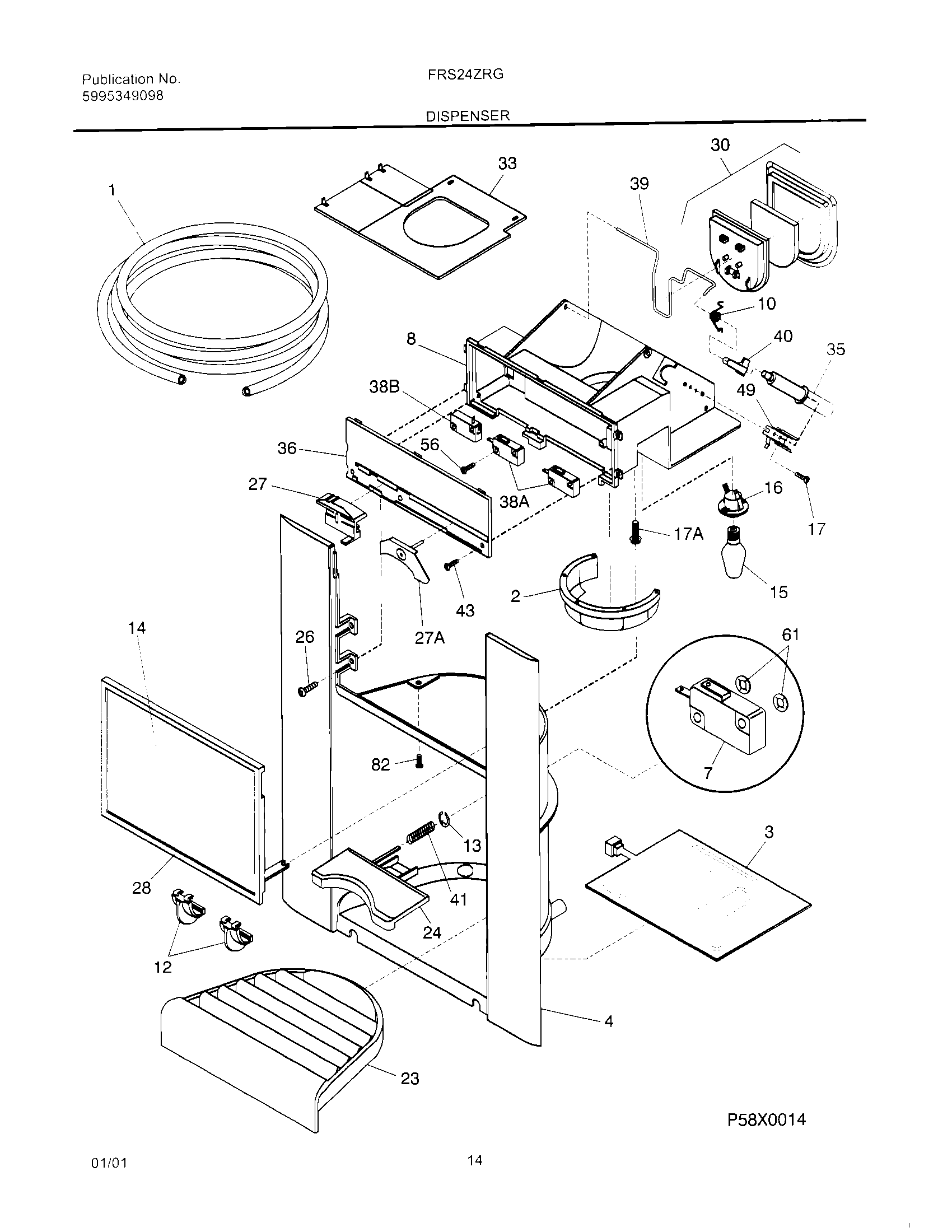

FRS24ZRGW1 15 – ICE DISPENSER

Products

Position	Product
NI	SHIELD-MICRO SWITCH (NOT ILLUSTRATED)
NI	WCI 218432502
NI	WCI 5300460947
NI	WCI 215294101
NI	WCI 215781700
NI	WCI 218832301
NI	WCI 218859901
1	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
2	WCI 218505301
3	WCI 215484300
4	WCI 218432101
7	WCI 218841901
8	WCI 218835701
10	WCI 218209800
12	WCI 218836201
13	WCI 215748101
14	WCI 218416153
15	WCI 218284900
16	240548901 Frigidaire Refrigerator P-1 Socket
17	WCI 215794400
17	WASHER-FLAT
17	WCI 215840700
23	WCI 5303297844
24	WCI 218796501
26	215503203 Frigidaire Refrigerator Door Handle Screw
27	WCI 218432600
27	WCI 218814901
28	WCI 218700601
30	DOOR ASSY-ICE CHUTE, W/GASKET, INSUL
33	WCI 218870201
35	WCI 218740003
36	WCI 218835601
38	WCI 218479900
38	241689106 Frigidaire Refrigerator Micro Switch
39	5304401778 Frigidaire Refrigerator Ice Door Wire
40	WCI 218284500
41	WCI 215765400
43	WCI 215760300
49	WCI 215794000
56	WCI 218434300
61	WCI 215766000
82	WCI 215296300
