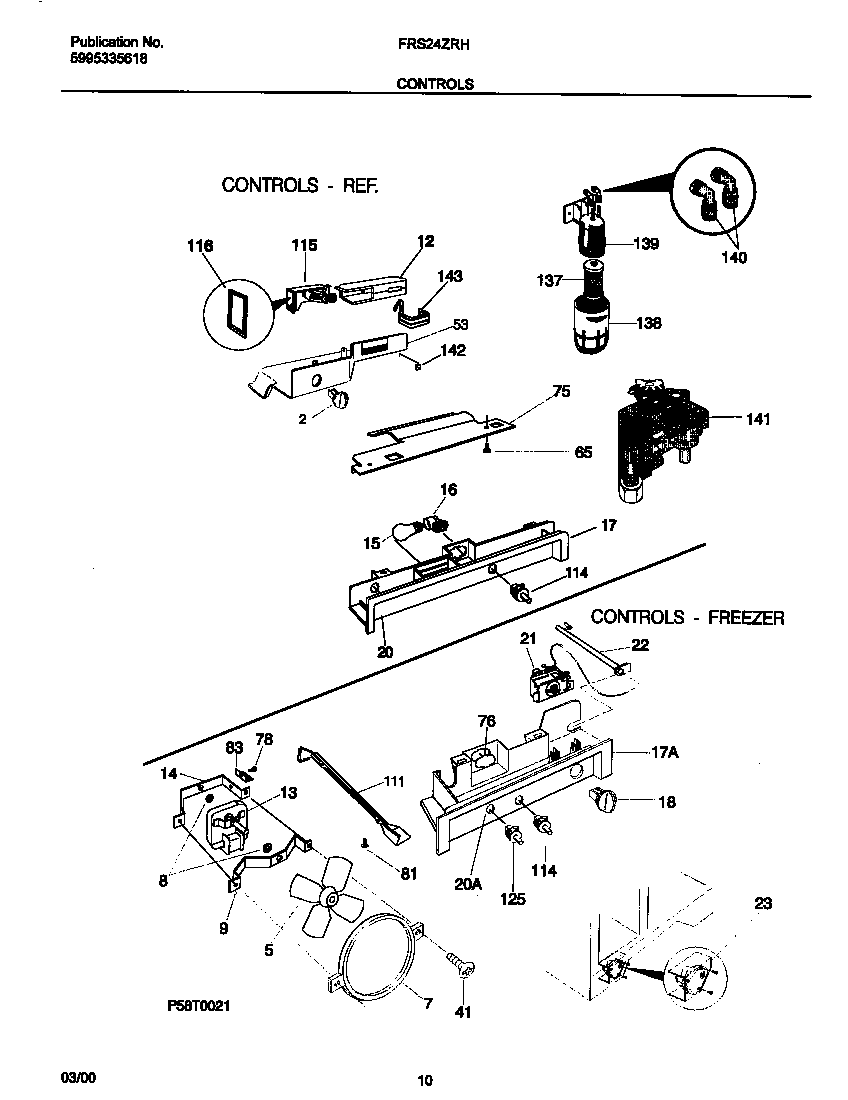

FRS24ZRHB3 06 – CONTROLS

FRS24ZRHB3 06 – CONTROLS

Written by

in

FRS24ZRHB3 06 – CONTROLS

Products

PositionProduct
*820615304455649 Frigidaire Refrigerator Screw
*82060COVER-DEFROST TIMER, TOP
*82059WCI 218731102
*82062SHIELD-DEFROST TIMR,BTM
*82063NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*82058215474201 Frigidaire Refrigerator Washer
2WCI 215028605
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
12WCI 215809600
13WCI 215426200
14BRACKET-MOTOR MTG, REAR
15316538904 Frigidaire Oven Lamp Light
16241559801 Frigidaire Light Socket Refrigerator
17BSCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000,REFR/FRZR
17ACONTROL BOX, FRZR
17WCI 5303296805
18WCI 5303308568
20WCI 5304411663
20WCI 5303308611
21WCI 5303300027
22WCI 5303319683
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
415308000039 Frigidaire Refrigerator Screw
53WCI 215809510
65WCI 5303001361
75WCI 218465101
76WCI 218225800
785304455651 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
111WCI 5303297842
1145303289051 Frigidaire Refrigerator Light Switch
115WCI 215011502
116WCI 215011400
137WCI 215334201
138240434401 Frigidaire Refrigerator Water Filter Cup Primary
139WCI 218893201
140WCI 218518700
141BScrew-solenoid valve,hx hd-slot wshr ,12-24 x 3/4
141A218832401 Frigidaire Water Inlet Valve
142WCI 218657701
143AWCI 218696700
143BWIRING HARNESS,FILTER HEATER
