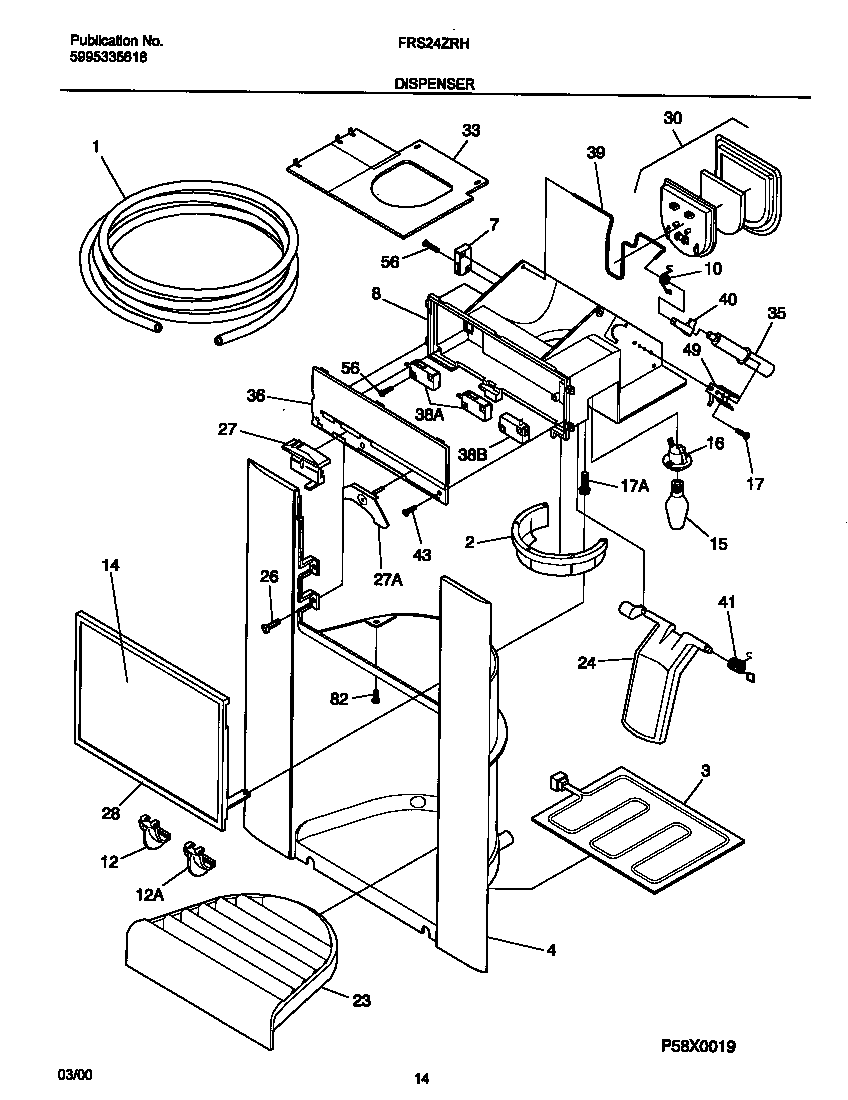

FRS24ZRHW3 08 – ICE DISPENSER

Products

Position	Product
*82079	WCI 218832301
*82081	WCI 218949201
*82080	WCI 218859901
*82083	WIRING HARNESS,DISP
*82082	SHIELD-MICRO SWITCH (NOT ILLUSTRATED)
1	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
2	WCI 218505301
3	WCI 215484300
4	WCI 218852401
7	WCI 218284800
8	WCI 218874901
10	WCI 218209800
12	WCI 218836201
12	WCI 218925401
12	WCI 218925501
14	WCI 218416188
15	WCI 218284900
16	240548901 Frigidaire Refrigerator P-1 Socket
17	WCI 215794400
17B	WASHER-FLAT
17A	WCI 215840700
23	WCI 5303297844
24	WCI 218921301
26	215503203 Frigidaire Refrigerator Door Handle Screw
27	WCI 218814901
27	WCI 218432600
28	WCI 218906201
30	DOOR ASSY-ICE CHUTE, W/GASKET, INSUL
33	WCI 218870201
35	WCI 218740003
36	WCI 218835601
38	WCI 218479900
38	241689106 Frigidaire Refrigerator Micro Switch
39	5304401778 Frigidaire Refrigerator Ice Door Wire
40	WCI 218284500
41	WCI 215765400
43	WCI 215760300
49	WCI 215794000
56	WCI 218434300
82	WCI 215296300
