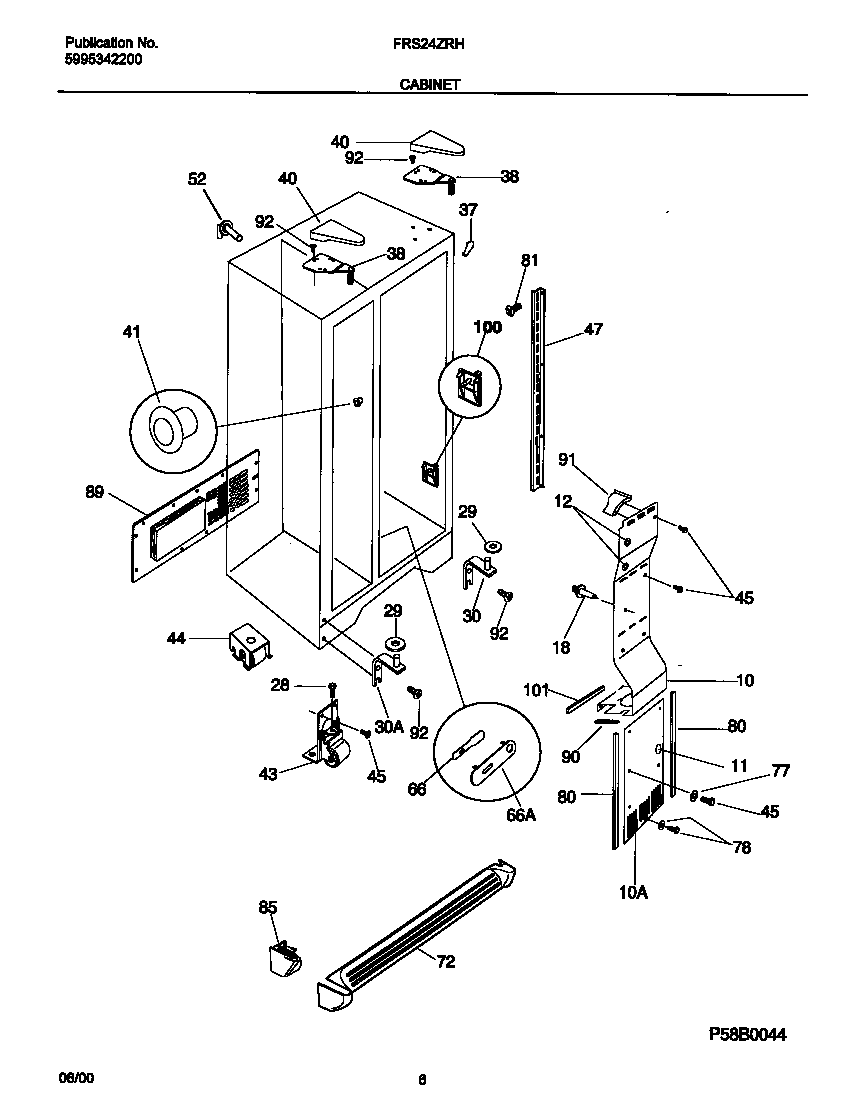

FRS24ZRHW4 04 – CABINET

Products

Position	Product
*49444	SUPPORT-AIR DUCT CVR,1.83“ LONG
*49446	WCI 218871201
*49451	WCI 218902101
*49447	WCI 218979701
*49445	WCI 215598900
*49449	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*49450	WCI 5303322647
*49443	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*49455	PLUG, BUTTON, CABINET LINER (NI)
*49454	5303321319 Frigidaire Refrigerator White Touch Up Paint
*49448	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
10B	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10A	WCI 215637402
10	WCI 215637602
11	5303208309 Frigidaire Refrigerator Plug Hole
12	5303001147 Frigidaire Refrigerator Plug-Harness Hole
18	WCI 5303289043
28	WCI 5303289062
29	WCI 215314301
30	BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30B	WCI 218979601
30A	WCI 215009000
37	WCI 5303321081
38A	WCI 218215241
38B	WCI 218215243
40	WCI 5303318773
41	5304509705 Frigidaire Refrigerator Grommet
43	WCI 218615300
44	WCI 218738300
45	5304455651 Frigidaire Refrigerator Screw
47	WCI 218659500
52	TUBE-WATER,ICE MOLD FILL ,ELBOW
66	WCI 215050201
66	WCI 218171301
72	WCI 218359601
77	WASHER-NYLON,3/16 X 5/8 OD
80	WCI 218249802
81	5304455650 Frigidaire Refrigerator Screw
85	WCI 218922701
89	WCI 218871501
90	WCI 215022602
91	WCI 218964701
92	241710601 Frigidaire Refrigerator Screw
100	SUPPORT-PAN COVER
101B	WCI 218663103
101A	WCI 215305702
