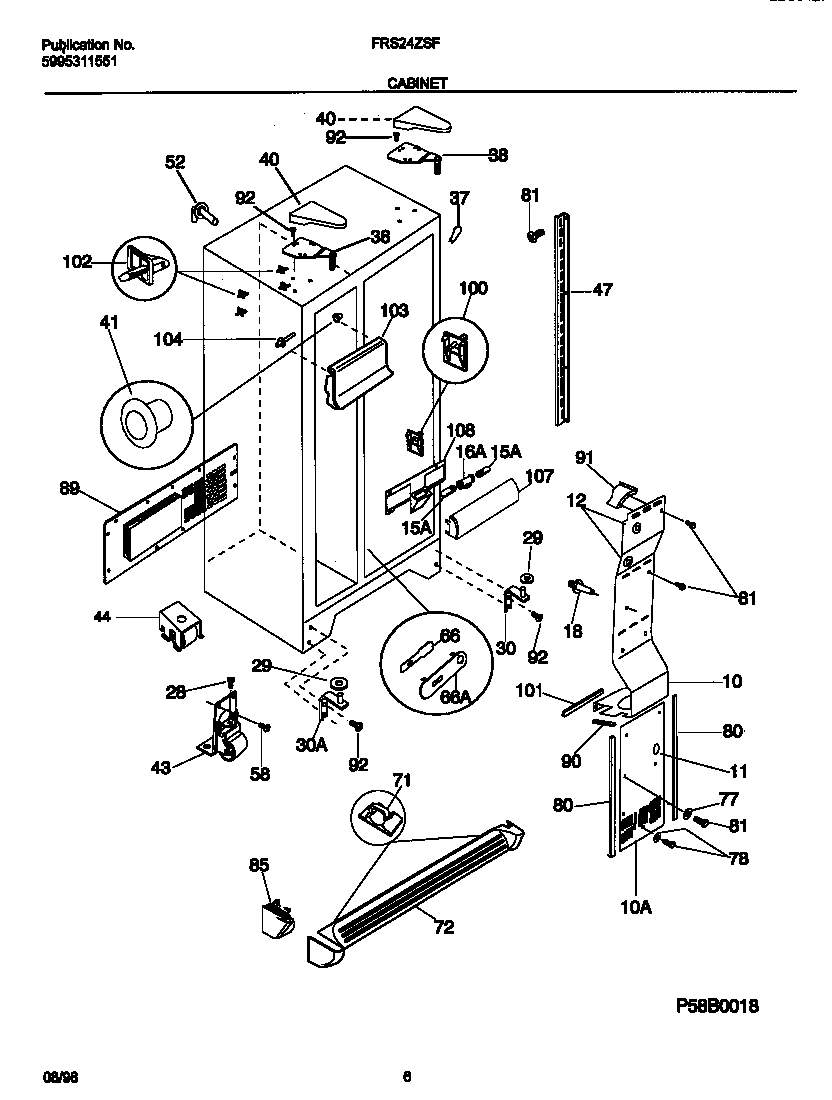

FRS24ZSFB1 04 – CABINET

FRS24ZSFB1 04 – CABINET

Written by

in

FRS24ZSFB1 04 – CABINET

Products

PositionProduct
*806925303321321 Frigidaire Refrigerator Black Touch-Up Paint
*80690SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*80688SUPPORT-AIR DUCT CVR,1.83“ LONG
*80693PLUG, BUTTON, CABINET LINER (NI)
*80691WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*80689WCI 218730800
10WCI 215637602
10WCI 215637400
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
15WCI 218708700
16WCI 5303299157
18WCI 5303289043
28WCI 5303289062
29WCI 215003200
29WCI 215314300
29WCI 215598900
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30WCI 218730700
30WCI 215009000
37WCI 5303321083
38WCI 218215214
38WCI 218215216
40WCI 218374409
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 218171301
66WCI 215050201
71218515401 Frigidaire Refrigerator Clip
72WCI 218359609
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218359805
89WCI 215176300
90WCI 215022602
91WCI 218770000
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101WCI 215305702
102SUPPORT, MOTOR BRKT, & SHELF
103WCI 215413100
104SCREW-ICE DR SUPT, CR SPCL PAN HD, 8-15(A) X 1-5/8 (NOTILLUSTRATED)
104SUPPORT-ICE ACCESS DR
107WCI 218188800
108WCI 218834202
