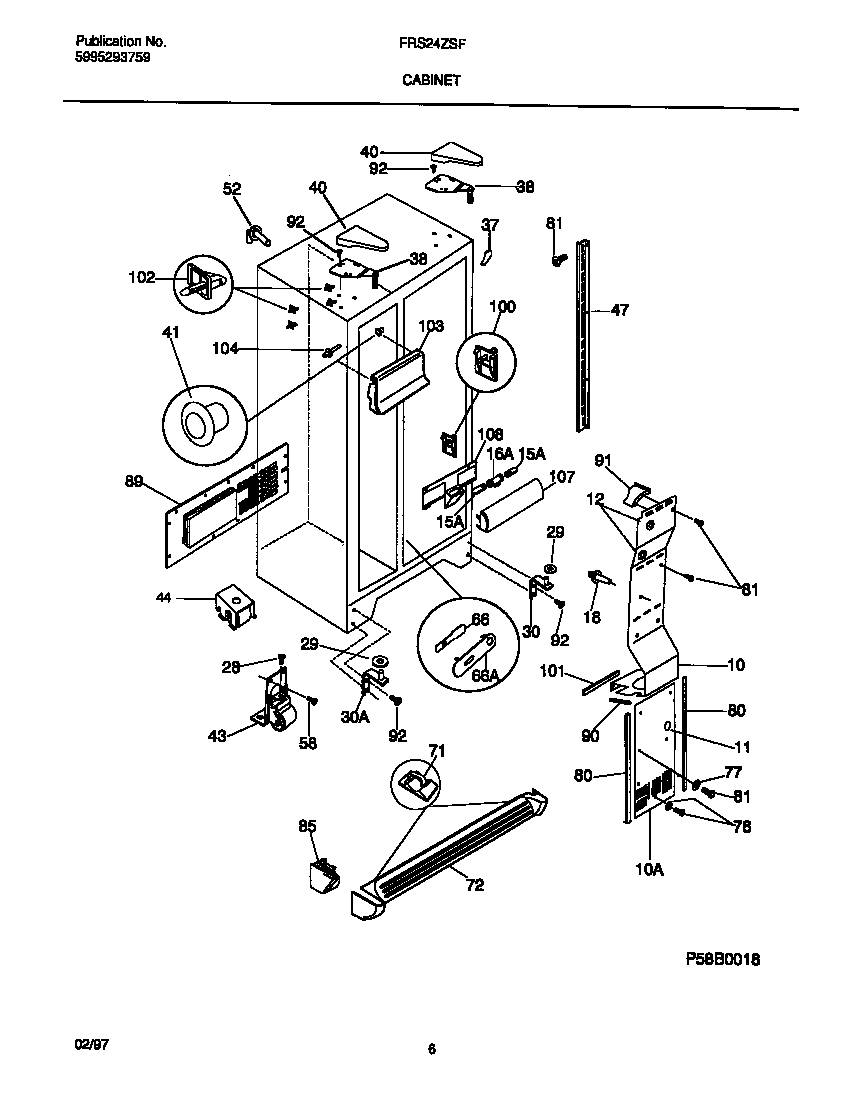

FRS24ZSFW0 04 – CABINET

FRS24ZSFW0 04 – CABINET

Written by

in

FRS24ZSFW0 04 – CABINET

Products

PositionProduct
*916515303321319 Frigidaire Refrigerator White Touch Up Paint
*91649PLUG, BUTTON, CABINET LINER (NI)
*91648WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10WCI 215637400
10WCI 215637602
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
15WCI 218708700
16WCI 5303299157
18AWCI 5303289043
18BSUPPORT-AIR DUCT CVR,1.83“ LONG
28WCI 5303289062
29AWCI 215003200
29CWCI 215598900
29BWCI 215314300
30AWCI 218730800
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30WCI 215009000
30BWCI 218730700
37WCI 5303321081
38BBRACKET-UPPER HINGE, WITH CLOSER, WHITE, LH
38AWCI 218215213
40WCI 218374404
415304509705 Frigidaire Refrigerator Grommet
43BSCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
43AWCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 218171301
66WCI 215050201
71218515401 Frigidaire Refrigerator Clip
72WCI 218359601
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218359801
89WCI 215176300
90WCI 215022602
91WCI 218770000
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101WCI 215305702
102SUPPORT, MOTOR BRKT, & SHELF
103WCI 215413100
104BSCREW-ICE DR SUPT, CR SPCL PAN HD, 8-15(A) X 1-5/8 (NOTILLUSTRATED)
104ASUPPORT-ICE ACCESS DR
107WCI 218188800
108WCI 218710800
