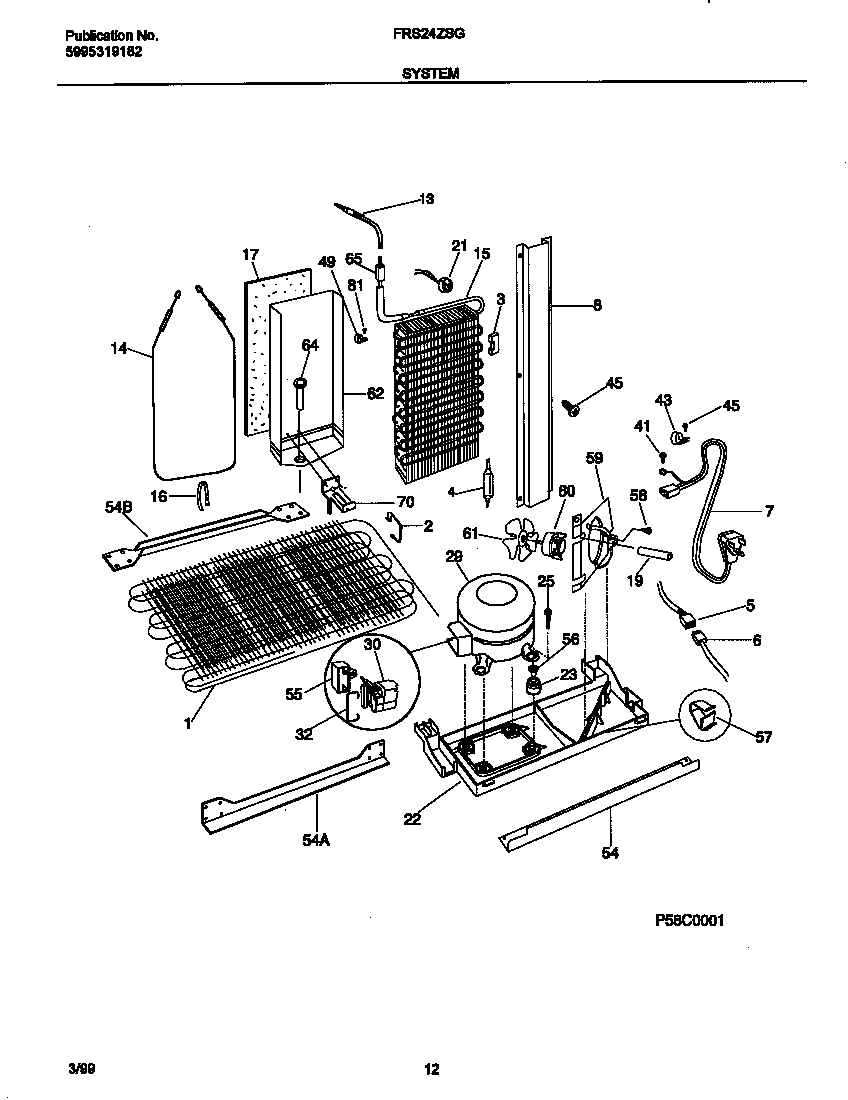

FRS24ZSGB0 07 – SYSTEM

Products

PositionProduct
*47801WCI 218463600
*47802WIRING HARNESS,FILTER HEATER
*47809WCI 215732700
*47799SPACER TUBE
*47800WIRING HARNESS,REFR CONTROLS
*47807SCREW,HEX HD SER WSHR ,8-18 X 0.375
*47803WIRING HARNESS,FRZR CONTROLS
*47812WCI 5303917166
*47804TUBE-INLET (NOT ILLUSTRATED)
*478085304455852 Frigidaire Refrigerator Screw
*47810WCI 215004700
*47811WCI 215004800
*478065308000133 Frigidaire Refrigerator Clamp
1WCI 218787900
2WCI 5303289029
3WCI 218679602
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 218646100
6WIRING HARNESS,MACHINE COMPT
7WCI 215459201
8WCI 218803400
13WCI 215746800
14218169802 Frigidaire Refrigerator Defrost Heater
15WCI 218691301
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5303289496
19WCI 218631200
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 218811100
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 218773500
29WCI 5303917933
30WCI 216008903
31WCI 5303322093
32218762900 Frigidaire CLAMP
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
45WCI 218769200
49WCI 215506900
54WCI 5303289027
54WCI 5303289292
54WCI 5303289311
555304464438 Frigidaire Compressor Run Capacitor
56WCI 218769300
57WCI 218247300
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 5303289031
60WCI 215501901
61WCI 5303289032
62WCI 215048701
64241957901 Frigidaire Refrigerator Tube-Drain
65WCI 5303289301
70WCI 5303289041
815304455650 Frigidaire Refrigerator Screw
