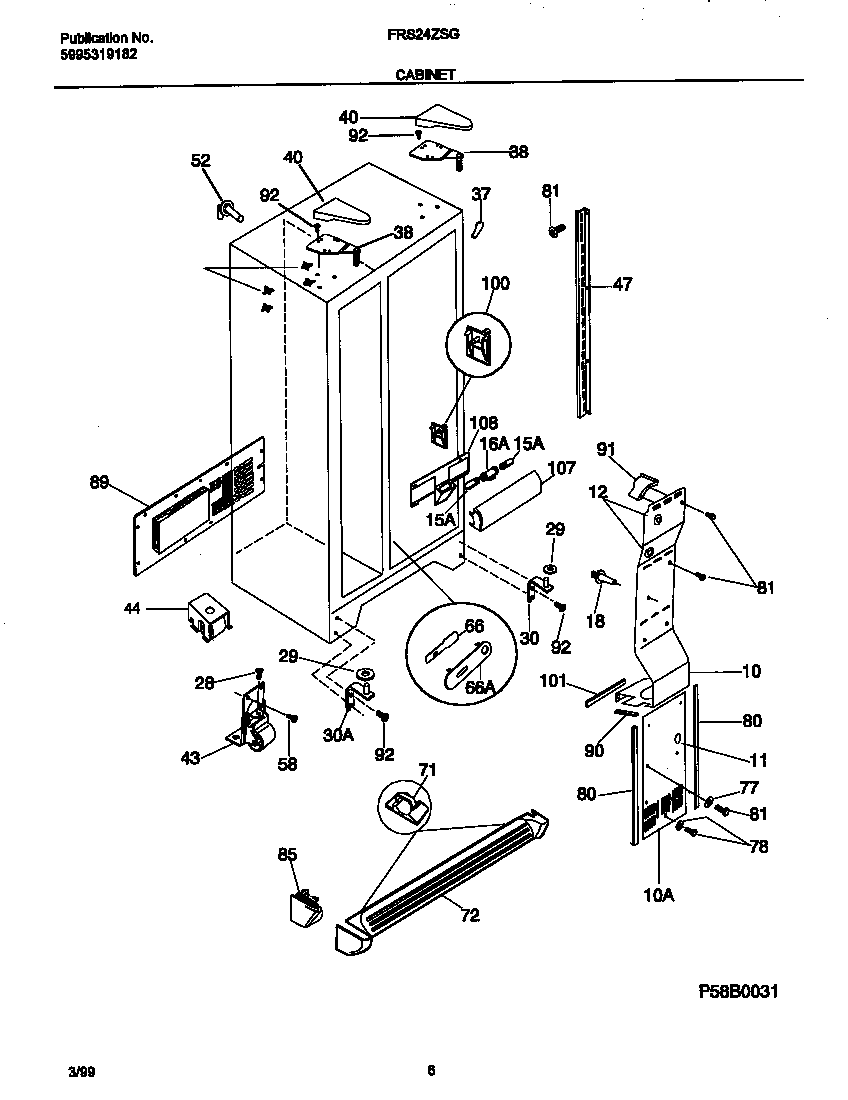

FRS24ZSGB1 04 – CABINET

FRS24ZSGB1 04 – CABINET

Written by

in

FRS24ZSGB1 04 – CABINET

Products

PositionProduct
*477795303321321 Frigidaire Refrigerator Black Touch-Up Paint
*47775WCI 218154003
*47778WASHER, .28 X .62 X .19, NYLON
*47770WCI 215314300
*47769WCI 215314301
*47772WCI 215598900
*47774SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*47776WCI 5303322647
*47768SUPPORT-AIR DUCT CVR,1.83“ LONG
*47781PLUG, BUTTON, CABINET LINER (NI)
*47777WCI 218902101
*47771WCI 218871201
*47773WCI 218730800
*47780WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10WCI 215637400
10WCI 215637602
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
15WCI 218708700
16WCI 5303299157
18WCI 5303289043
28WCI 5303289062
29WCI 215003200
30BWCI 218730700
30AWCI 215009000
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
37WCI 5303321083
38BWCI 218215216
38AWCI 218215214
40WCI 218374409
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 218171301
66WCI 215050201
71218515401 Frigidaire Refrigerator Clip
72WCI 218359609
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218359805
89WCI 215176300
90WCI 215022602
91WCI 218770000
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101WCI 215305702
101WCI 218663103
107WCI 218835901
108WCI 218834202
