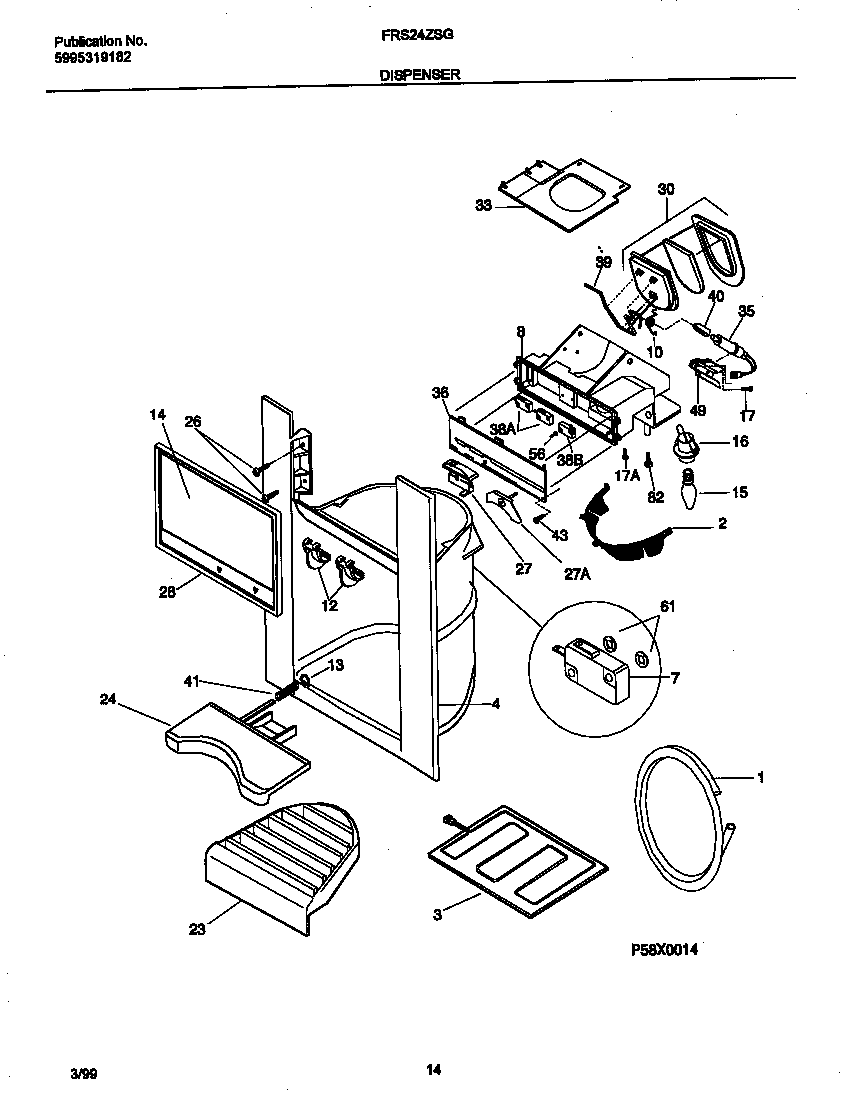

FRS24ZSGB2 08 – DISPENSER

Products

Position	Product
*47814	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
*47821	WCI 5300460947
*47819	WCI 215781700
*47816	WCI 218832301
*47820	WCI 218432501
*47817	WCI 215294101
*47818	SHIELD-MICRO SWITCH (NOT ILLUSTRATED)
2	WCI 218505303
3	WCI 215484300
4	WCI 218432103
7	WCI 218284800
8	WCI 218505201
10	WCI 218209800
12	WCI 215766503
13	WCI 215748101
14	WCI 218416166
15	WCI 218284900
16	240548901 Frigidaire Refrigerator P-1 Socket
17B	WASHER-FLAT
17A	WCI 215840700
17	WCI 215794400
23	WCI 5303299660
24	WCI 218746303
26	215503203 Frigidaire Refrigerator Door Handle Screw
27	WCI 218432600
27	WCI 218814901
28	WCI 218700603
30	DOOR ASSY-ICE CHUTE, W/GASKET, INSUL
33	WCI 218870201
35	WCI 218740003
36	WCI 218432400
38	WCI 218480000
38	WCI 218479900
39	5304401778 Frigidaire Refrigerator Ice Door Wire
40	WCI 218284500
41	WCI 215765400
43	WCI 215760300
49	WCI 215794000
56	WCI 218434300
61	WCI 215766000
82	WCI 215296300
