FRS24ZSGB3 06 – CONTROLS

FRS24ZSGB3 06 – CONTROLS

Written by

in

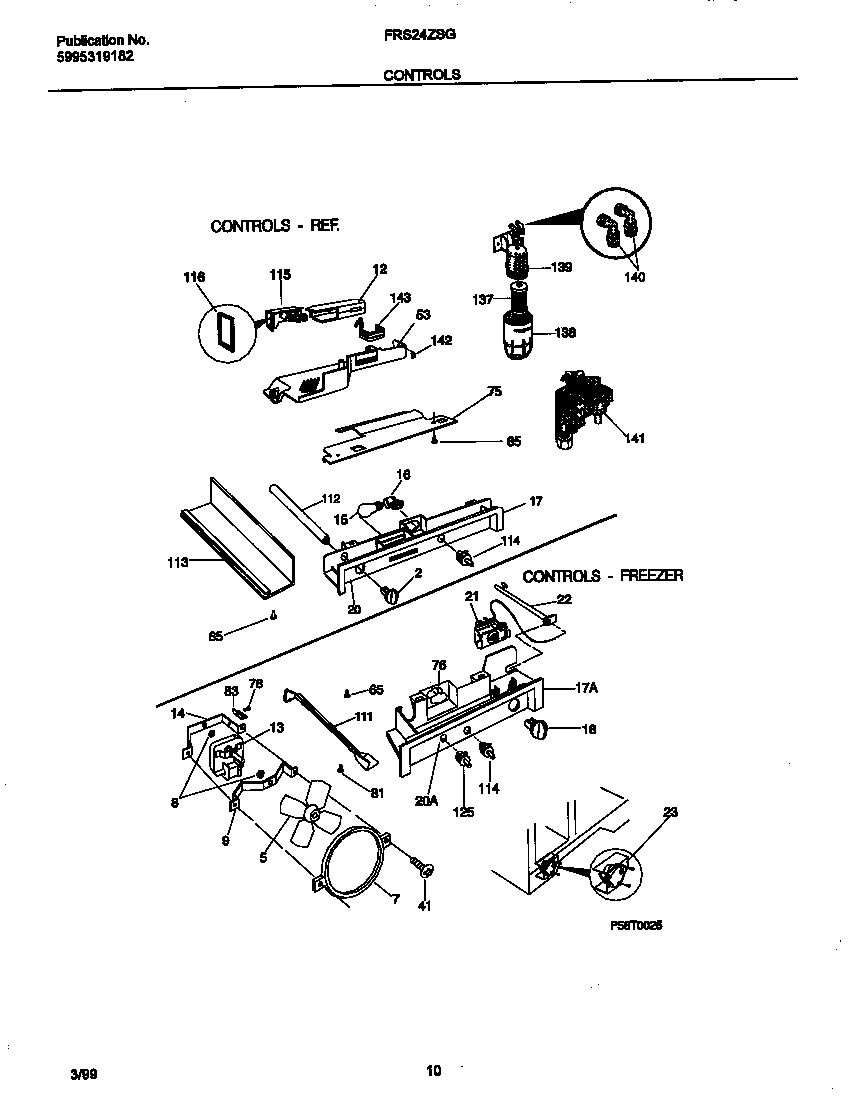

FRS24ZSGB3 06 – CONTROLS

Products

PositionProduct
*477935304455649 Frigidaire Refrigerator Screw
*47797WIRING HARNESS,FILTER HEATER
*47794SHIELD-DEFROST TIMR,BTM
*47789215474201 Frigidaire Refrigerator Washer
*47791WCI 218731102
*47790SCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000,REFR/FRZR
*47792COVER-DEFROST TIMER, TOP
*47796218710300 Frigidaire Refrigerator Water Filter Wrench
*47795NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*477983205266 Frigidaire Refrigerator Edge Protector
2WCI 5303307883
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
12WCI 215809600
13WCI 215426200
14BRACKET-MOTOR MTG, REAR
15316538904 Frigidaire Oven Lamp Light
16241559801 Frigidaire Light Socket Refrigerator
17WCI 218468701
17CONTROL BOX, FRZR
18WCI 5303307882
20WCI 5303307888
20WCI 5303307884
21WCI 5303300027
22WCI 5303319683
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
415308000039 Frigidaire Refrigerator Screw
53WCI 215809508
65WCI 5303001361
75WCI 218465100
76WCI 218225800
785304455651 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
111WCI 5303297842
112WCI 215277102
113COVER – DMPR ROD EXT
1145303289051 Frigidaire Refrigerator Light Switch
115WCI 215011502
116WCI 215011400
137WCI 215334201
138WCI 218657401
139HOUSING-WTR FILTER
140WCI 218518700
141Screw-solenoid valve,hx hd-slot wshr ,12-24 x 3/4
141218832401 Frigidaire Water Inlet Valve
142WCI 218657701
143WCI 218696700
