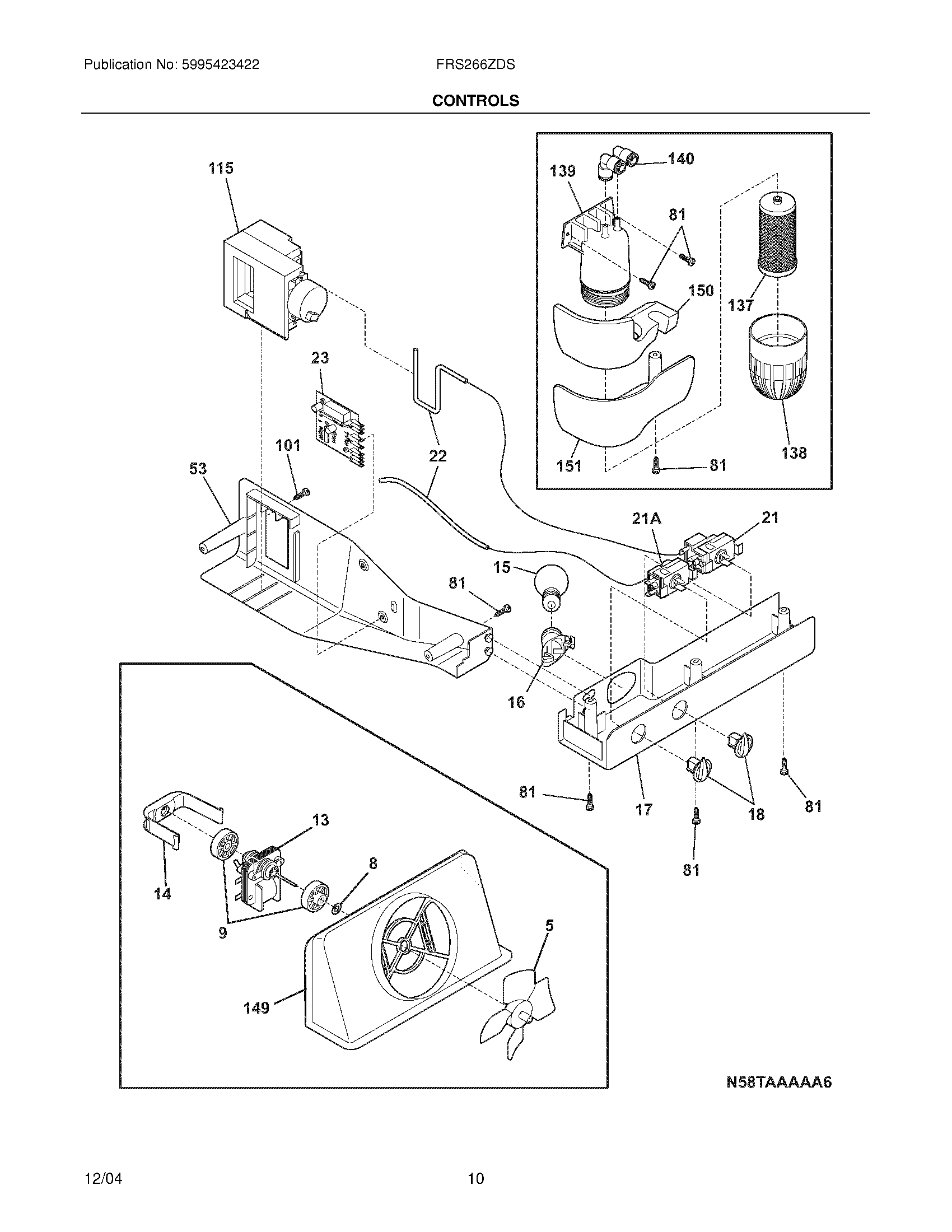

FRS266ZDSB1 11 – CONTROLS

Products

Position	Product
NI	5304455649 Frigidaire Refrigerator Screw
NI	WCI 241537802
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	215474201 Frigidaire Refrigerator Washer
9	241563601 Frigidaire Refrigerator Motor Mounting Bushing
13	EVAP MOTOR KIT
14	242135301 Frigidaire Refrigerator Evaporator Motor Clip, Freezer
15	316538904 Frigidaire Oven Lamp Light
16	218906802 Frigidaire Light Lamp Socket
17	WCI 240383301
18	Knob-control
21A	5304496561 Frigidaire Refrigerator Cold Temperature Control Thermostat
21	241537104 Frigidaire Refrigerator Thermostat
22	218660704 Frigidaire Refrigerator Tube-Insulator
23	WCI 241508001
53	240369501 Frigidaire Refrigerator Control Box
81	5304455650 Frigidaire Refrigerator Screw
101	218493101 Frigidaire Refrigerator Screw
115	241600902 Frigidaire Refrigerator Damper Control Assembly
137	WFCB WATER FILTER PURESOURCE 4"
137	218710300 Frigidaire Refrigerator Water Filter Wrench
138	218904301 Frigidaire Refrigerator O-Ring Cup P1
138	240434401 Frigidaire Refrigerator Water Filter Cup Primary
139	240434301 Frigidaire Water Filter Housing
140	240545201 Frigidaire Refrigerator Elbow P-1
149	242204506 Frigidaire Refrigerator Shroud Assembly
149	241528303 Frigidaire Refrigerator Seal
150	WCI 240394102
151	WCI 240376002
