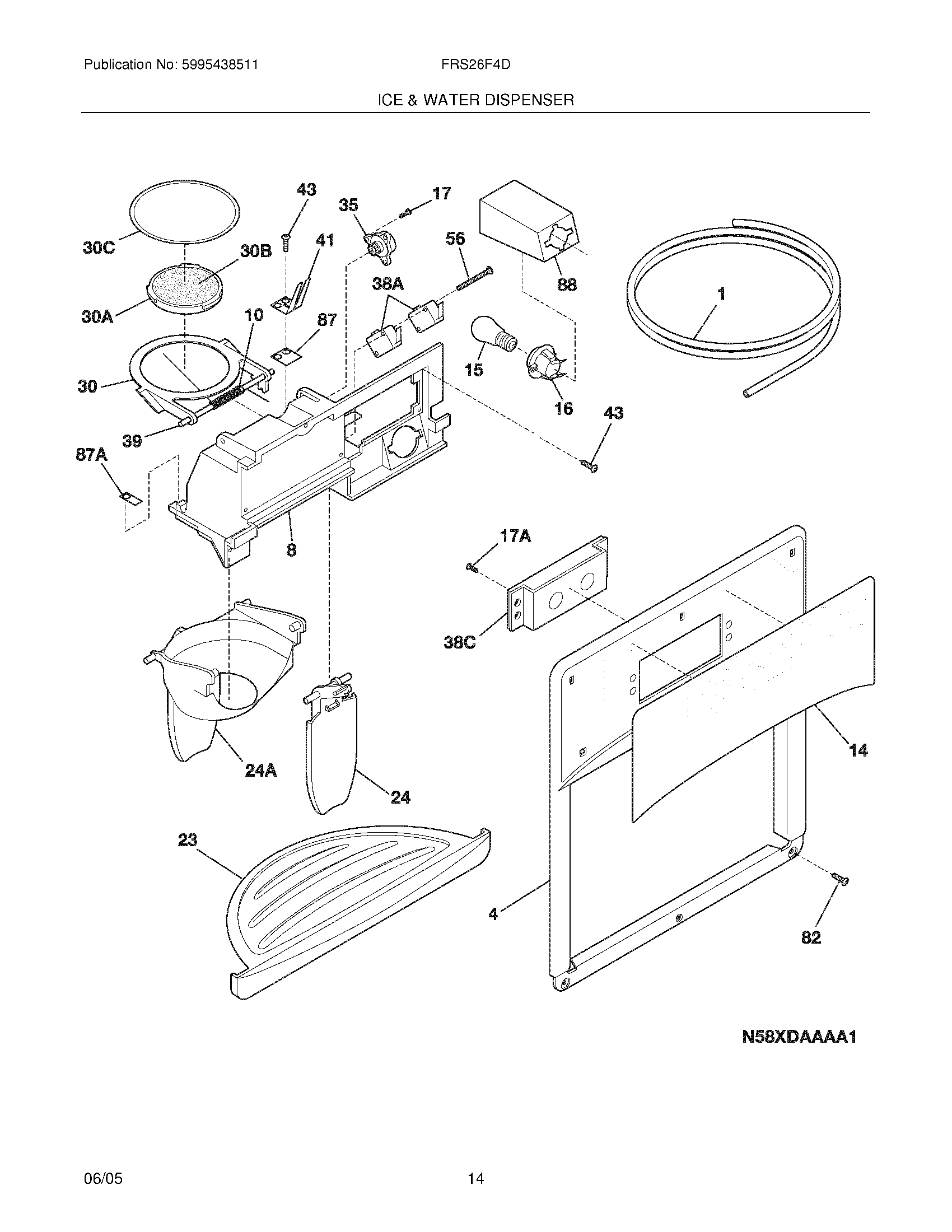

FRS26F4DB5 15 – ICE & WATER DISPENSER

FRS26F4DB5 15 – ICE & WATER DISPENSER

Written by

in

FRS26F4DB5 15 – ICE & WATER DISPENSER

Products

PositionProduct
NI218976901 Frigidaire Refrigerator P1-Water Inlet Tube
NI5303918256 Frigidaire Refrigerator Heater Kit Dispenser
NI240561701 Frigidaire Refrigerator Seal
NI218515401 Frigidaire Refrigerator Clip
NIWCI 218976907
NI218976903 Frigidaire Refrigerator Water Inlet Tube P-1
1218976409 Frigidaire Refrigerator Water Tube
4241679003 Frigidaire Dispenser Cover
8WCI 5304422013
10241688901 Frigidaire Refrigerator Torsion Spring
14240570237 Frigidaire Refrigerator Dispense Front Panel/Cover
15Light Bulb/Lamp
16240548901 Frigidaire Refrigerator P-1 Socket
17241679801 Frigidaire Screw
17A241679901 Frigidaire Refrigerator Screw
23241649003 Frigidaire Refrigerator Drip Tray
24A241681903 Frigidaire Refrigerator Ice Dispenser Actuator
24241682003 Frigidaire Refrigerator Black Water Dispenser Actuator
30C241688701 Frigidaire Refrigerator Door Seal
30B241688601 Frigidaire Refrigerator Door Insulation
30A241688501 Frigidaire Refrigerator Door Center
30241688401 Frigidaire Ice Door Bracket
35241689301 Frigidaire Refrigerator Rotary Damper
38A241679201 Frigidaire Refrigerator Wiring Harness
38A241689106 Frigidaire Refrigerator Micro Switch
38C5304521693 Frigidaire Refrigerator Harness-Facade W/Li
38C5304525097 Frigidaire Refrigerator 4 Button Switch Assembly
39241688801 Frigidaire Refrigerator Pin-Hinge
41241689001 Frigidaire Refrigerator Actuator Spring
43WCI 215296300
56241689201 Frigidaire Refrigerator Screw-Micro Switch
825304453707 Frigidaire Oven Screw
87A241688301 Frigidaire Refrigerator Bearing Plate
87241688302 Frigidaire Refrigerator Bearing Plate
88WCI 5304421615
