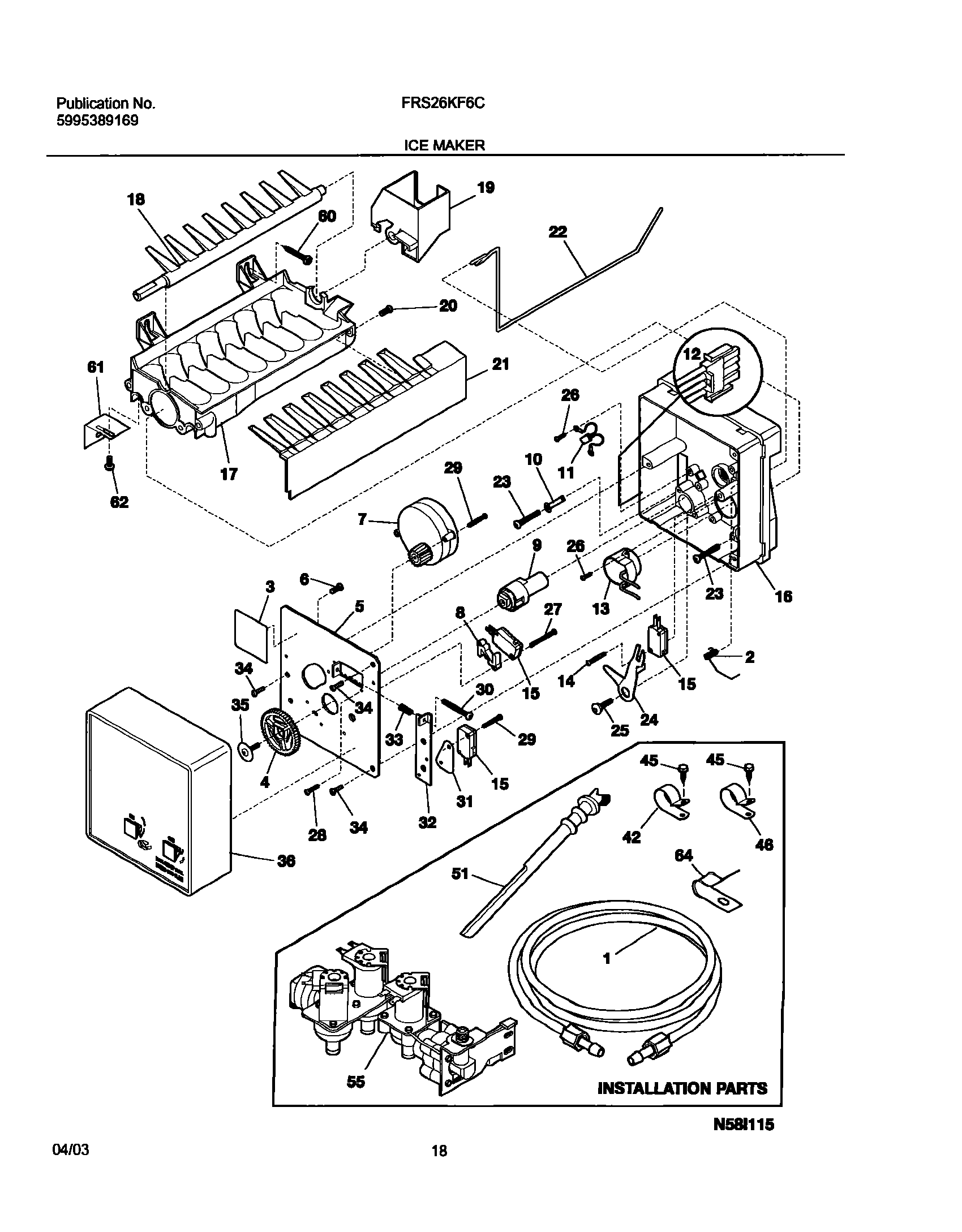

FRS26KF6CB0 19 – ICE MAKER

FRS26KF6CB0 19 – ICE MAKER

Written by

in

FRS26KF6CB0 19 – ICE MAKER

Products

PositionProduct
NI218976901 Frigidaire Refrigerator P1-Water Inlet Tube
NIWCI 218515402
NI5304458371 Frigidaire Refrigerator Ice Maker
NI218709101 Frigidaire Refrigerator Handle Mounting Screw
NIAdapter-water supply,nut & sleeve ,
NI5304455651 Frigidaire Refrigerator Screw
NI240542901 Frigidaire Water Valve Cap
NI240363602 Frigidaire Refrigerator Shoulder Screw
NIWCI 218976907
NI218976903 Frigidaire Refrigerator Water Inlet Tube P-1
NI240561701 Frigidaire Refrigerator Seal
1218976409 Frigidaire Refrigerator Water Tube
2WCI 5304420650
3Label,ID plate
45304469403 Frigidaire Gear
5WCI 3206303
6218359202 Frigidaire Refrigerator Screw
75303918277 Frigidaire Refrigerator Ice Maker Assembly
8SPACER-HOLD SWITCH
9WCI 3206313
10WCI 3206315
113206319 Frigidaire Refrigerator Thermal Cut-Off Assembly P1
12Wiring Harness,ice maker ,internal ,
13Thermostat Assy,ice maker
14WCI 5304420652
155304456667 Frigidaire Refrigerator Micro Switch
16WCI 5304420653
17241798231 Frigidaire Refrigerator Ice Maker Assembly
18EJECTOR-ICE
19WCI 3206330
20WCI 5304408581
21ICE STRIPPER
22SHUT-OFF ARM
23SCREW,8-32 X 0.875 ,MOLD-TO-SUPPORT ,
245304456675 Frigidaire Refrigerator Lever Arm
25SCREW,8-18 X 0.562 ,LEVER ARM/SPRT
26WCI 5304420654
27SCREW,4-40 X 1.000 ,HOLD SWITCH MTG ,
28Screw-timing stop`4-40 x 0.375
29SCREW,4-24 X 0.750 ,(6)
30SCREW-TIMING ADJ,8-32 X 1.000
31WCI 3206342
32WCI 3206343
33WCI 5304408583
34WCI 5304420655
35WCI 5304408585
36COVER-ICE MAKER
425303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455650 Frigidaire Refrigerator Screw
465303001193 Frigidaire Refrigerator Clamp
51241796405 Frigidaire Refrigerator Fill Water Tube
55242252702 Frigidaire Refrigerator Water Inlet Valve Triple Solenoid
605304455852 Frigidaire Refrigerator Screw
61218721500 Frigidaire Refrigerator Bracket-Leveling
62240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
645304455846 Frigidaire Refrigerator Clamp
