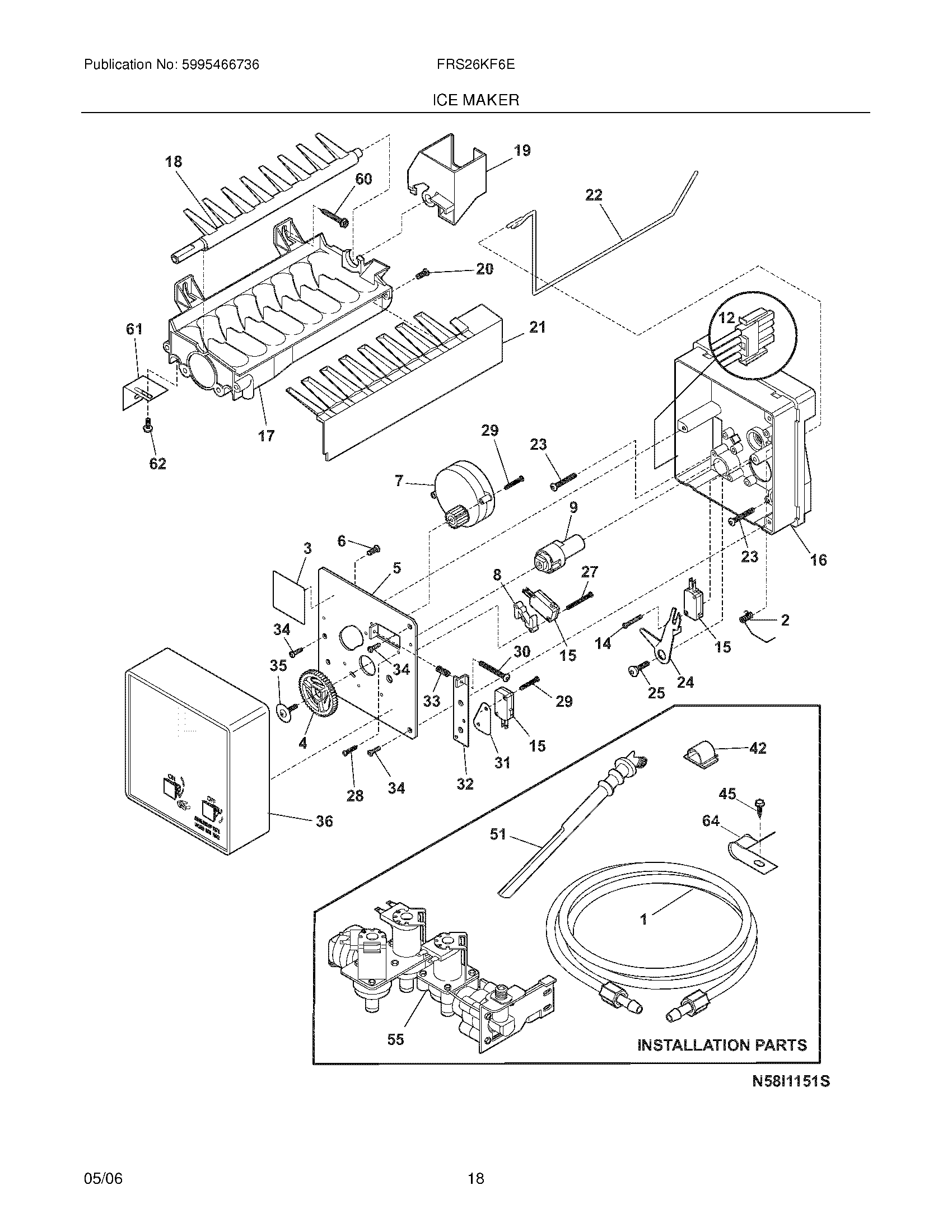

FRS26KF6EM3 19 – ICE MAKER

Products

PositionProduct
NI218976901 Frigidaire Refrigerator P1-Water Inlet Tube
NIWCI 241642601
NI218709101 Frigidaire Refrigerator Handle Mounting Screw
NI241798231 Frigidaire Refrigerator Ice Maker Assembly
NI5304445223 Frigidaire SPRING BEAM
NI240561701 Frigidaire Refrigerator Seal
NIAdapter-water supply,nut & sleeve ,
NI240542901 Frigidaire Water Valve Cap
NI240363602 Frigidaire Refrigerator Shoulder Screw
NIWCI 218976907
NI218976903 Frigidaire Refrigerator Water Inlet Tube P-1
1218976409 Frigidaire Refrigerator Water Tube
2WCI 5304420650
3Label,ID plate
45304469403 Frigidaire Gear
5WCI 5304455693
6218359202 Frigidaire Refrigerator Screw
8SPACER-HOLD SWITCH
9WCI 3206313
12WCI 5304420651
14WCI 5304455676
155304456667 Frigidaire Refrigerator Micro Switch
16WCI 5304420653
18EJECTOR-ICE
19WCI 3206330
205304455677 Frigidaire Screw
21ICE STRIPPER
22SHUT-OFF ARM
23WCI 5304455678
245304456675 Frigidaire Refrigerator Lever Arm
27WCI 5304455681
28Screw-timing stop`4-40 x 0.375
29WCI 5304455845
30WCI 5304455682
31WCI 3206342
32WCI 5304455683
33WCI 5304408583
34WCI 5304455684
35WCI 5304455685
36COVER-ICE MAKER
42WCI 218515402
455304455650 Frigidaire Refrigerator Screw
51241796405 Frigidaire Refrigerator Fill Water Tube
55242252702 Frigidaire Refrigerator Water Inlet Valve Triple Solenoid
605304455852 Frigidaire Refrigerator Screw
61218721500 Frigidaire Refrigerator Bracket-Leveling
62240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
645304455846 Frigidaire Refrigerator Clamp
