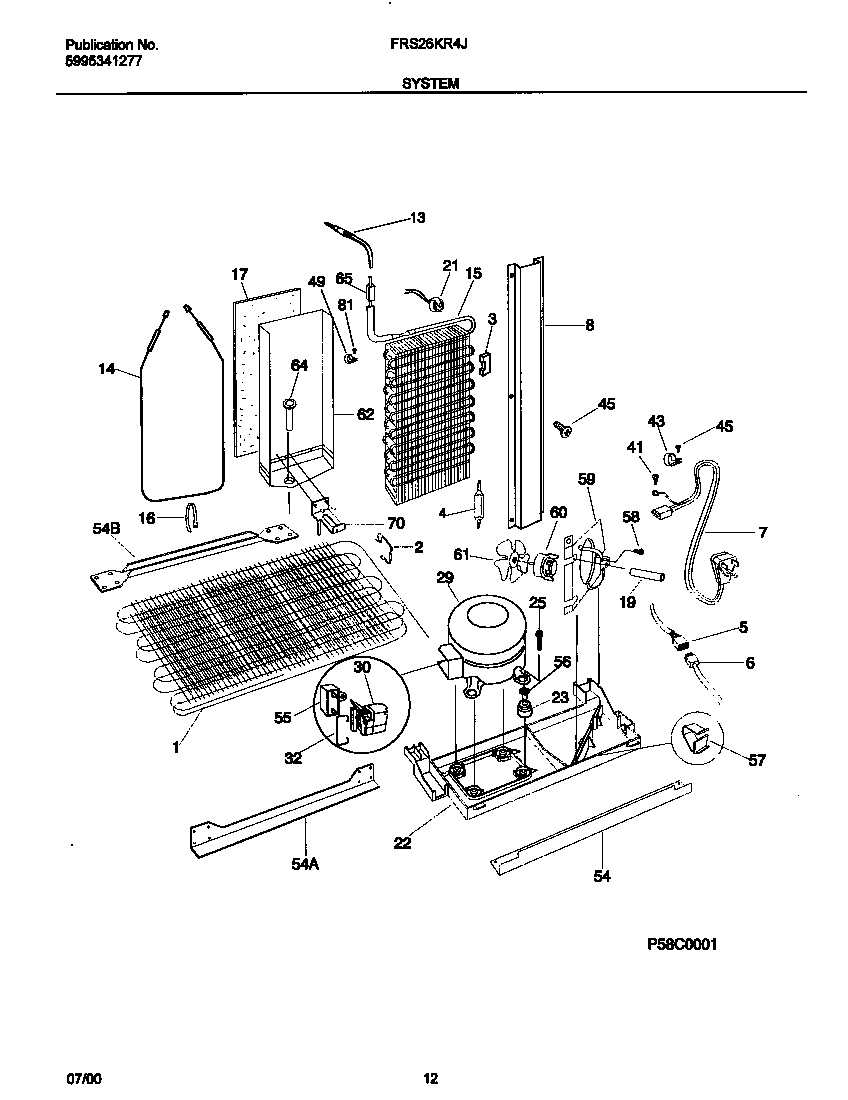

FRS26KR4JQ0 07 – SYSTEM

FRS26KR4JQ0 07 – SYSTEM

Written by

in

FRS26KR4JQ0 07 – SYSTEM

Products

PositionProduct
*25679WCI 215732700
*25672WIRING HARNESS,REFR CONTROLS
*25671WCI 5304406721
*25673WIRING HARNESS,FRZR CONTROLS
*25680WCI 218956701
*25681WCI 218956801
*25669SPACER-COND TUBE,BLACK
*25670SPACER TUBE
*256765308000133 Frigidaire Refrigerator Clamp
*256785304455852 Frigidaire Refrigerator Screw
*25682HOT TUBE REPAIR KIT, SERVICE
*25674TUBE-INLET (NOT ILLUSTRATED)
*25677WCI 218769200
1WCI 218787900
2WCI 5303289029
3WCI 218679603
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 218959901
6WCI 218960001
7WCI 215459201
8WCI 218803400
13WCI 215006701
14218169802 Frigidaire Refrigerator Defrost Heater
15WCI 218691301
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5304415956
19WCI 218631200
21297216600 Frigidaire Refrigerator Defrost Thermostat
22WCI 218811100
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 218773500
295304475102 Frigidaire Refrigerator Compressor Kit
30WCI 218721110
32WCI 216649100
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455651 Frigidaire Refrigerator Screw
49WCI 215506900
54WCI 5303289027
54WCI 5303289292
54WCI 5303289311
555304464438 Frigidaire Compressor Run Capacitor
56WCI 218769300
57WCI 218247300
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 218956601
60WCI 218956401
61WCI 218956501
62WCI 215048703
64241957901 Frigidaire Refrigerator Tube-Drain
65WCI 5303289301
70WCI 5303289041
815304455650 Frigidaire Refrigerator Screw
