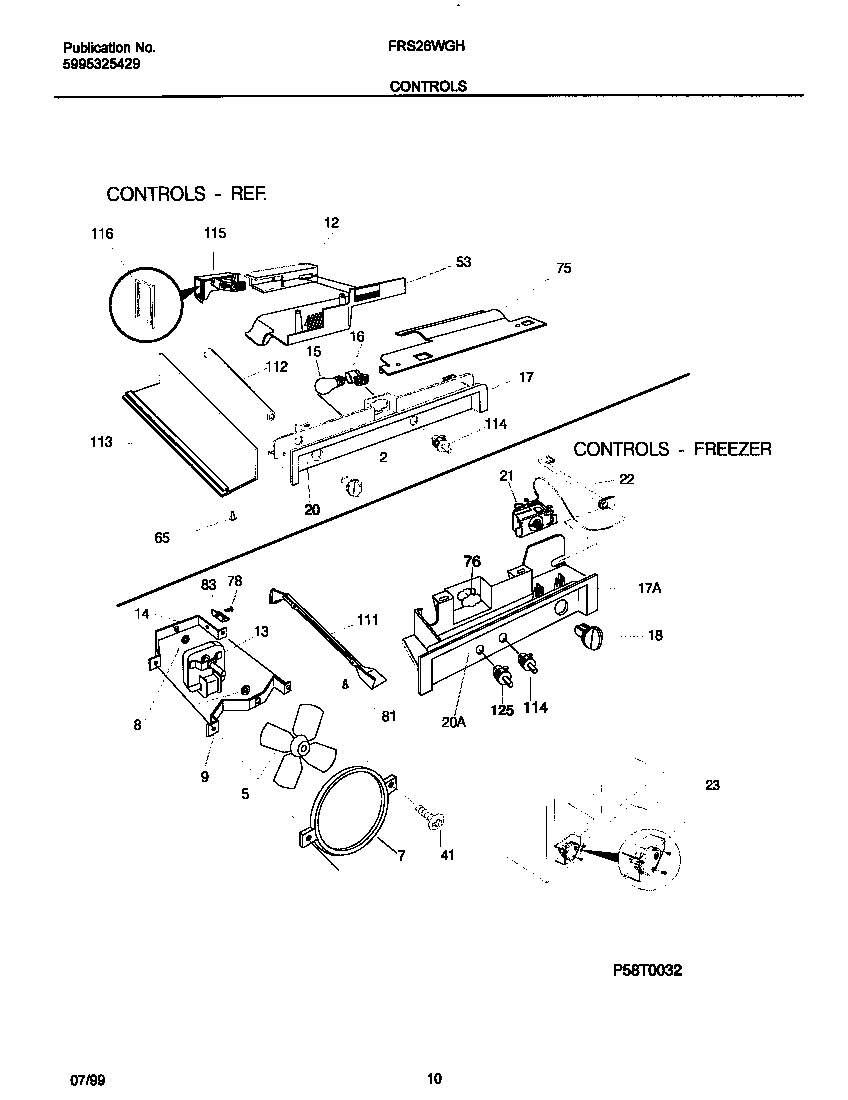

FRS26WGHW3 06 – CONTROLS

Products

Position	Product
*76790	5304455649 Frigidaire Refrigerator Screw
*76788	WCI 218731102
*76791	SHIELD-DEFROST TIMR,BTM
*76787	SCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000,REFR/FRZR
*76789	COVER-DEFROST TIMER, TOP
*76792	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*76786	215474201 Frigidaire Refrigerator Washer
2	WCI 215028605
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
12	WCI 215809600
13	WCI 215426200
14	BRACKET-MOTOR MTG, REAR
15	316538904 Frigidaire Oven Lamp Light
16	241559801 Frigidaire Light Socket Refrigerator
17	CONTROL BOX, FRZR
17	WCI 5303296805
18	WCI 5303307882
20	WCI 5303300433
20	WCI 5303308611
21	WCI 5303300027
22	WCI 5303319683
23	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
41	5308000039 Frigidaire Refrigerator Screw
53	WCI 215809505
65	WCI 5303001361
75	WCI 218465101
76	WCI 218225800
78	5304455651 Frigidaire Refrigerator Screw
81	5304455650 Frigidaire Refrigerator Screw
83	WCI 5308000107
111	WCI 5303297842
112	WCI 215277102
113	COVER – DMPR ROD EXT
114	5303289051 Frigidaire Refrigerator Light Switch
115	WCI 215011505
116	WCI 215011400
125	WCI 215334201
