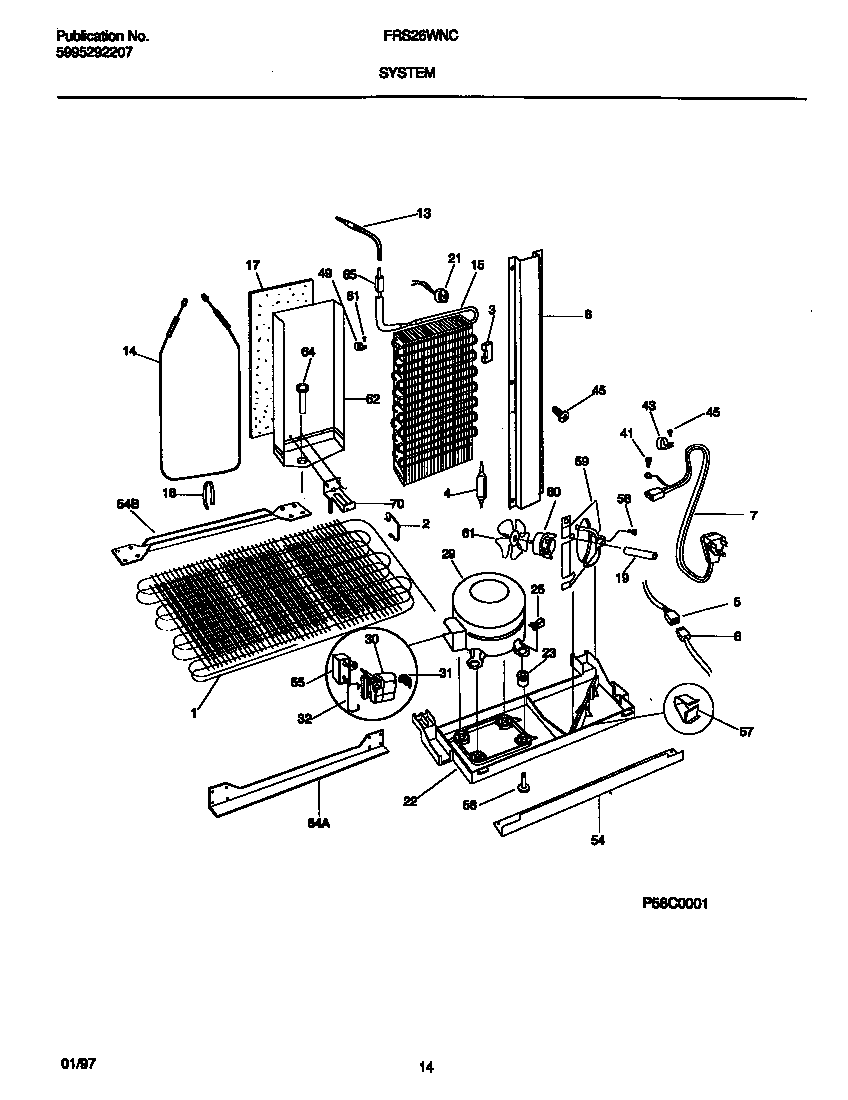

| *47052 | WCI 5303917166 |
| 1C | SPACER TUBE |
| 1B | SPACER-COND TUBE,BLACK |
| 1A | WCI 215408100 |
| 2 | WCI 5303289029 |
| 3 | WCI 218679602 |
| 4 | 5303305677 Frigidaire Replacement Filter Dryer Filters |
| 5C | WIRING HARNESS,REFR CONTROLS |
| 5A | WCI 218738500 |
| 5B | HARNESS-WIRING, FRZR CONTROLS (NON-ILLUSTRATED) |
| 6 | WCI 218741500 |
| 7 | WCI 215459201 |
| 8 | WCI 5303289033 |
| 13 | WCI 215746800 |
| 14 | 218169802 Frigidaire Refrigerator Defrost Heater |
| 15B | TUBE-INLET (NOT ILLUSTRATED) |
| 15A | WCI 218691301 |
| 16 | 5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap |
| 17 | WCI 5303289496 |
| 19 | WCI 218631200 |
| 21 | 5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit |
| 22 | WCI 5303289030 |
| 23 | 218513300 Frigidaire Refrigerator Compressor Mount Grommet |
| 25 | WCI 215014200 |
| 29 | WCI 5303917933 |
| 30 | WCI 216008903 |
| 31 | WCI 5303322093 |
| 32 | 218762900 Frigidaire CLAMP |
| 41 | 5308000039 Frigidaire Refrigerator Screw |
| 43A | 5303001199 Frigidaire Refrigerator Wiring Harness Clamp |
| 43C | 5308000133 Frigidaire Refrigerator Clamp |
| 45C | 5304455852 Frigidaire Refrigerator Screw |
| 45A | 5304455651 Frigidaire Refrigerator Screw |
| 49 | WCI 215506900 |
| 54 | WCI 5303289311 |
| 54 | WCI 5303289027 |
| 54 | WCI 5303289292 |
| 55 | CAPACITOR-RUN,210-230 VAC ,15 MICROFARAD |
| 56 | WCI 215014100 |
| 57 | WCI 218247300 |
| 58 | 240555002 Frigidaire Refrigerator Screw #8-32 X 3/8 |
| 59 | WCI 5303289031 |
| 60 | WCI 215501901 |
| 61B | WCI 215004700 |
| 61A | WCI 5303289032 |
| 61C | WCI 215004800 |
| 62 | WCI 215048701 |
| 64 | 241957901 Frigidaire Refrigerator Tube-Drain |
| 65 | WCI 5303289301 |
| 70 | WCI 5303289041 |
| 81 | 5304455650 Frigidaire Refrigerator Screw |
