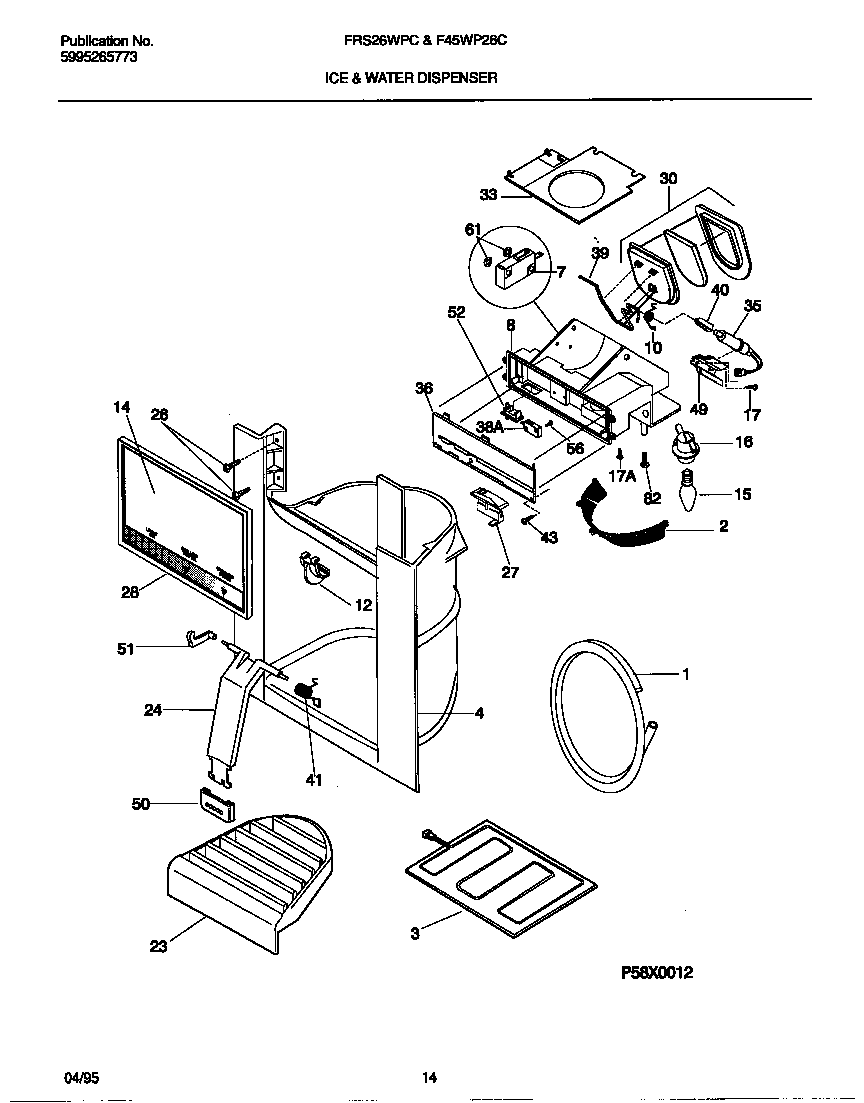

FRS26WPCW0 08 – ICE AND WATER DISPENSER

Products

Position	Product
*36973	WCI 215781700
*36972	WCI 218493601
1B	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
1A	WCI 215294101
2	WCI 218232500
2	WCI 215732101
3	WCI 215484300
3	WCI 218232300
4B	LABEL-ICE CONTAINER (NOT ILLUSTRATED)
4A	WCI 218216800
4	WCI 215922301
5	WCI 215748105
6	WCI 215752800
7	WCI 218284800
7	WCI 215421603
8	WCI 218432302
9	WCI 215419700
10	WCI 218209800
10	WCI 218232800
10	241726501 Frigidaire Refrigerator Drive Bar
11	WCI 215755200
12	WCI 215627201
13	WCI 218285200
14	WCI 215475100
14	WCI 215419900
15	WCI 218284900
15	316538904 Frigidaire Oven Lamp Light
16	240548901 Frigidaire Refrigerator P-1 Socket
16	218906802 Frigidaire Light Lamp Socket
17A	WCI 215840700
17	WCI 215794400
17	WCI 215754800
17B	WASHER-FLAT
18A	5304462594 Frigidaire Refrigerator Motor-Auger
18B	HARNESS-WIRING, AUGER MOTOR (NOT ILLUSTRATED)
20	WCI 215285301
23B	RING-RETAINER (NOT ILLUSTRATED)
23	WCI 215447001
23A	WCI 215755300
23C	STUD (NOT ILLUSTRATED)
24	WCI 215918001
25	WCI 215421400
26	215503203 Frigidaire Refrigerator Door Handle Screw
27	WCI 215748400
27	WCI 218432600
28	WCI 215447101
29	WCI 215757501
30	WCI 215757300
30	DOOR ASSY-ICE CHUTE, W/GASKET, INSUL
33	WCI 218379901
35	WCI 218284700
36	WCI 218432400
38	WCI 218270100
38	WCI 218479900
39	WCI 215757000
39	5304401778 Frigidaire Refrigerator Ice Door Wire
40	WCI 215363000
40	WCI 218284500
41	WCI 218270200
41	WCI 215917800
43	WCI 215760300
43	WCI 215635000
44	WCI 218359200
49	WCI 215794000
50	WCI 215918101
51	WCI 215922200
52	WCI 218497200
56	WCI 218434300
61	WCI 215766000
82	WCI 215296300
