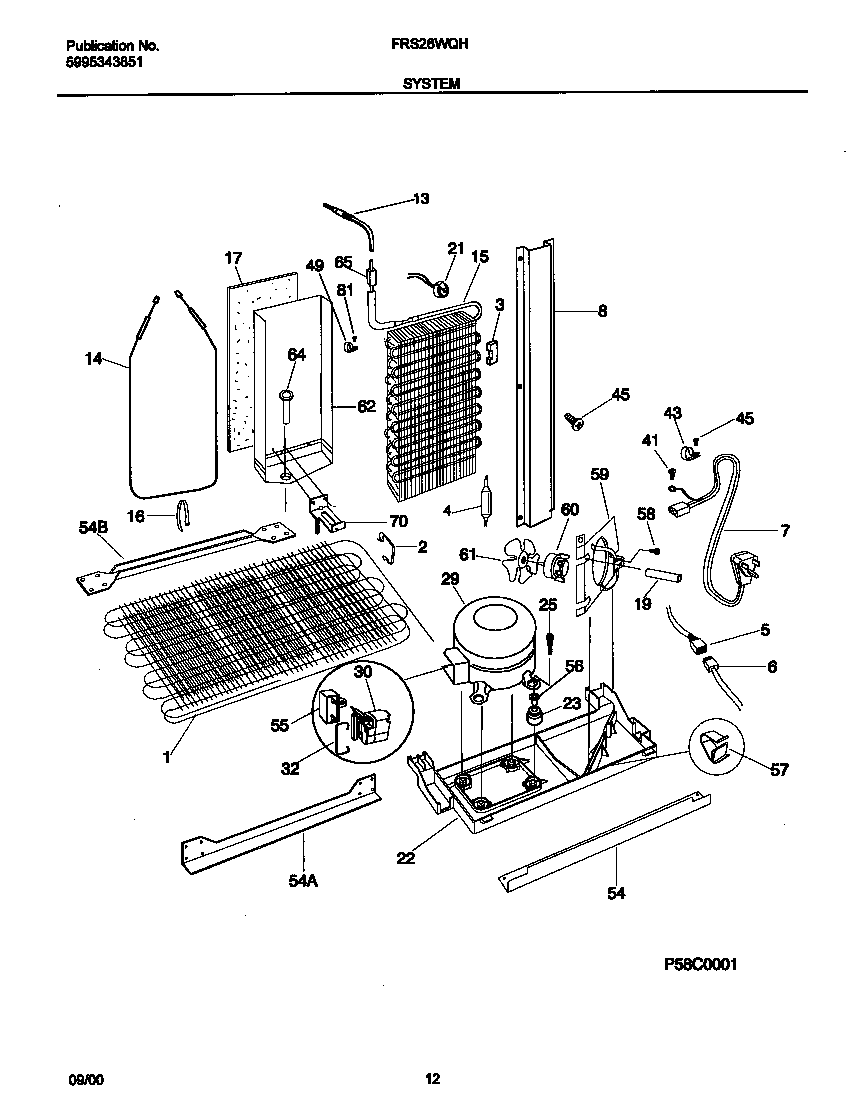

FRS26WQHD2 07 – SYSTEM

Products

PositionProduct
*45585WCI 5304406721
*45587WIRING HARNESS,REFR CONTROLS
*45586WCI 218679605
*45591SCREW,HEX HD SER WSHR ,8-18 X 0.375
*455905308000133 Frigidaire Refrigerator Clamp
*45588WIRING HARNESS,FRZR CONTROLS
*45594WCI 218956801
*45583SPACER-COND TUBE,BLACK
*45593WCI 218956701
*45584SPACER TUBE
*45592WCI 218769200
*45595WCI 5303917166
1WCI 218787900
2WCI 5303289029
3WCI 218679608
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 218959901
6WCI 218960001
7WCI 215459201
8WCI 218803400
13WCI 215006701
14218169805 Frigidaire Refrigerator Defrost Heater
15240553101 Frigidaire Refrigerator Evaporator
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5304415956
19WCI 218631200
21297216600 Frigidaire Refrigerator Defrost Thermostat
22WCI 218811100
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 218773500
295304475102 Frigidaire Refrigerator Compressor Kit
30WCI 218721110
32WCI 216649100
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455651 Frigidaire Refrigerator Screw
49218990801 Frigidaire Refrigerator Evaporator/Cover Mount Bracket
54WCI 5303289027
54BWCI 215732700
54AWCI 5303289311
54WCI 5303289292
555304464438 Frigidaire Compressor Run Capacitor
56WCI 218769300
57WCI 218247300
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 218956601
60WCI 218956401
61WCI 218956501
62WCI 215048703
64241957901 Frigidaire Refrigerator Tube-Drain
65WCI 5303289301
70WCI 5303289041
815304455650 Frigidaire Refrigerator Screw
