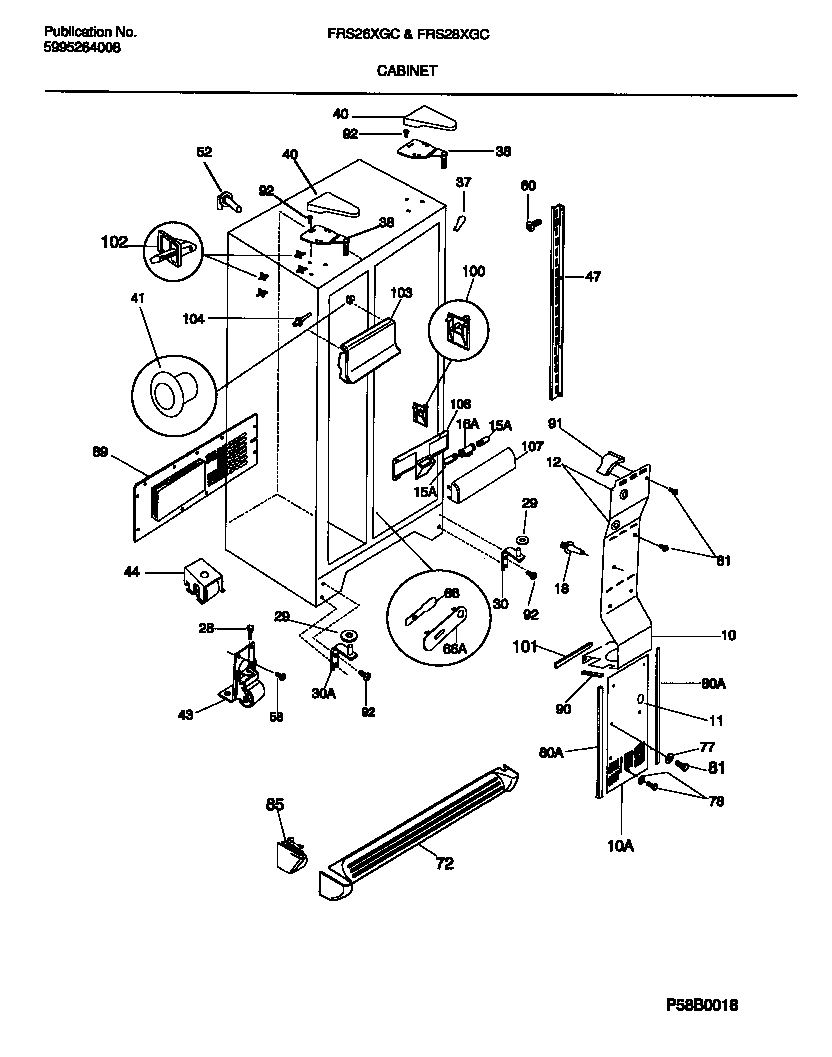

FRS26XGCB0 04 – CABINET

FRS26XGCB0 04 – CABINET

Written by

in

FRS26XGCB0 04 – CABINET

Products

PositionProduct
*144095303321321 Frigidaire Refrigerator Black Touch-Up Paint
*14408CLIP-CABLE
10WCI 215637400
10WCI 215637602
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
15WCI 218188900
16WCI 5303299157
18BSUPPORT-AIR DUCT CVR,1.83“ LONG
18AWCI 5303289043
28WCI 5303289062
29AWCI 215003200
29BWCI 215598900
30WCI 215009100
30BTAPPING PLATE, LH (NOT ILLUSTRATED)
30WCI 215008900
30ATAPPING PLATE, RH (NOT ILLUSTRATED)
37WCI 5303272428
38WCI 218215206
40WCI 218374403
415304509705 Frigidaire Refrigerator Grommet
43BSCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
43AWCI 5303289059
44WCI 215163900
47WCI 5303288974
52TUBE-WATER,ICE MOLD FILL ,ELBOW
605304455852 Frigidaire Refrigerator Screw
66WCI 218171301
66WCI 215050201
72WCI 218359609
77WASHER-NYLON,3/16 X 5/8 OD
78BWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
78A5304455651 Frigidaire Refrigerator Screw
80WCI 218249801
815304455650 Frigidaire Refrigerator Screw
85WCI 218359806
89WCI 215176300
90WCI 215022602
91WCI 215177600
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101WCI 215305702
102SUPPORT, MOTOR BRKT, & SHELF
103WCI 218368301
104BSCREW-ICE DR SUPT, CR SPCL PAN HD, 8-15(A) X 1-5/8 (NOTILLUSTRATED)
104ASUPPORT-ICE ACCESS DR
107WCI 218188800
108WCI 218476800
