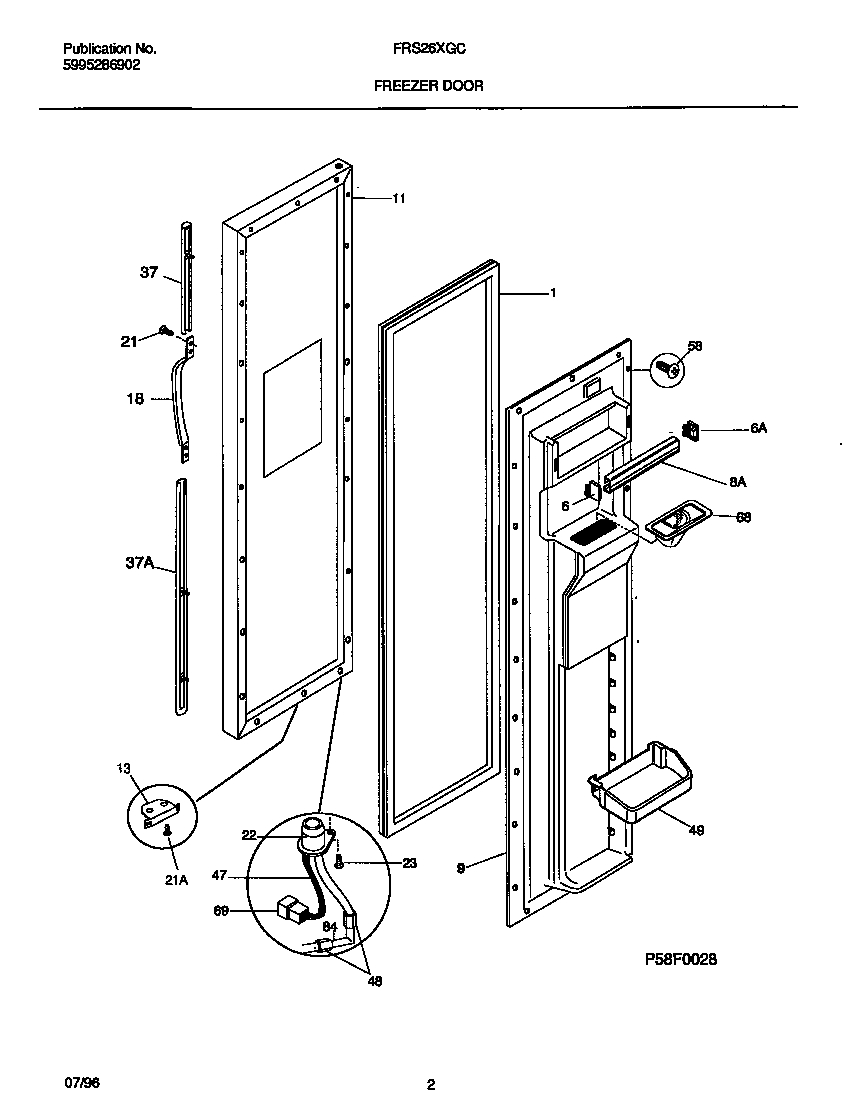

FRS26XGCW3 02 – FREEZER DOOR

FRS26XGCW3 02 – FREEZER DOOR

Written by

in

FRS26XGCW3 02 – FREEZER DOOR

Products

PositionProduct
*38524INSULATION
*38522WCI 215940700
*38521WCI 215782300
*38520WCI 215598900
*38523WCI 218676002
1215734313 Frigidaire Refrigerator Door Gasket
6WCI 5303297813
6WCI 5303297814
8WCI 215474039
9WCI 218470101
11WCI 5303917665
13WCI 5303289522
18WCI 218025201
21218843801 Frigidaire Refrigerator Screw
21218578600 Frigidaire Refrigerator Door Stop Mounting Screw
22WCI 215615300
23WCI 5303001020
37TRIM-HANDLE,WHITE ,LOWER ,W/DEC GOLD BAND,AND SNAP LOCKS
37TRIM-HANDLE,WHITE ,UPPER ,W/DEC GOLD BAND,AND SNAP LOCK
47WCI 218485100
48NUT, 7/16 X 20, NYLON
49WCI 218592301
58216858001 Frigidaire Refrigerator Screw
68WCI 218495200
69CONNECTOR-DOOR HARN
84WCI 5308010289
