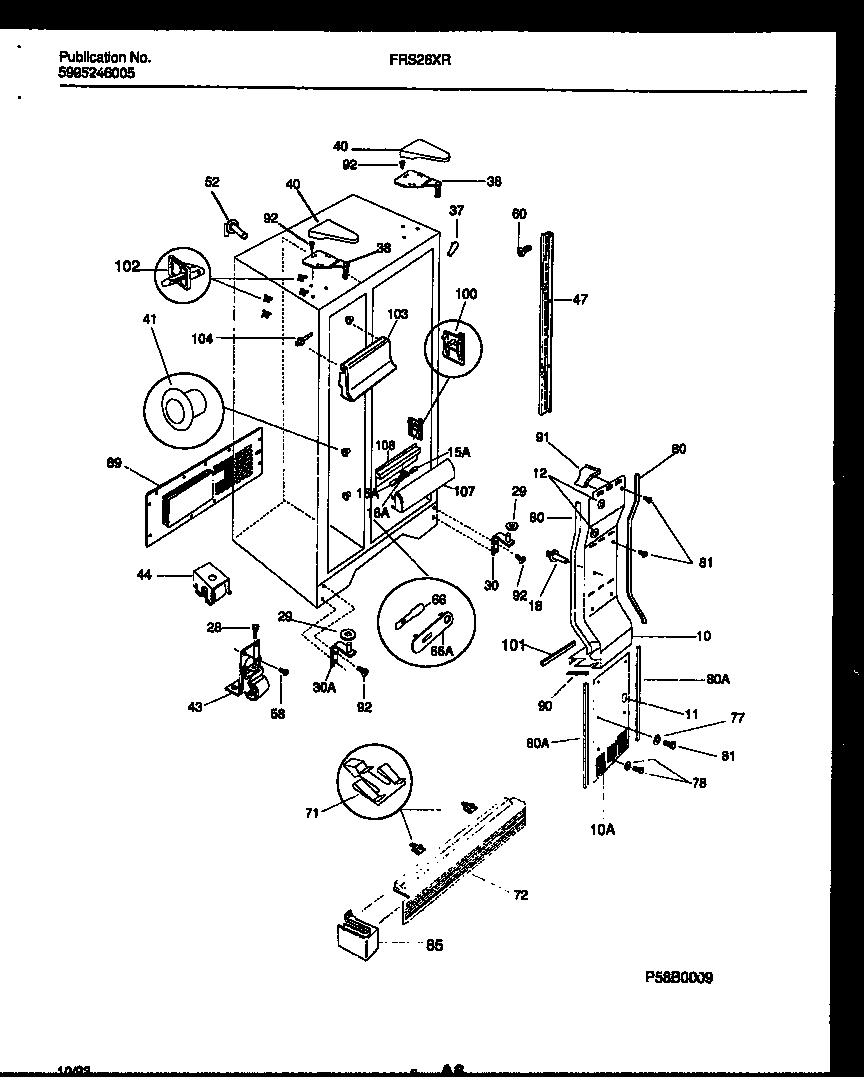

FRS26XRAB0 04 – CABINET PARTS

Products

Position	Product
*88393	5304455651 Frigidaire Refrigerator Screw
10	WCI 5303297838
10A	WCI 5303289494
11	5303208309 Frigidaire Refrigerator Plug Hole
12	5303001147 Frigidaire Refrigerator Plug-Harness Hole
15A	WCI 215507900
16A	WCI 5303299157
18	WCI 5303289043
18A	SUPPORT-AIR DUCT CVR,1.83“ LONG
28	WCI 5303289062
29	WCI 215003200
29	WCI 215598900
30B	TAPPING PLATE, RH (NOT ILLUSTRATED)
30C	TAPPING PLATE, LH (NOT ILLUSTRATED)
30	WCI 215008900
30A	WCI 215009100
37	WCI 5303272428
38	WCI 215004502
38	BRACKET-UPPER HINGE, W/ CLOSER, BLACK, (2)
40	WCI 5303299155
41	5304509705 Frigidaire Refrigerator Grommet
43A	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
43	WCI 5303289059
44	WCI 215163900
47	WCI 5303288974
52	WCI 5303289294
60	5304455852 Frigidaire Refrigerator Screw
66	WCI 215050201
66A	WCI 215050101
71A	SCREW-CLIP/GRILLE, PAN HEAD, 6-20AB X 1/4 (NOT ILLUSTRATED)
71	WCI 215003300
72	WCI 5303299298
77	WASHER-NYLON,3/16 X 5/8 OD
78A	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
80	WCI 5303289037
80A	WCI 5303289036
81	5304455650 Frigidaire Refrigerator Screw
85	WCI 215003806
89	WCI 215176300
