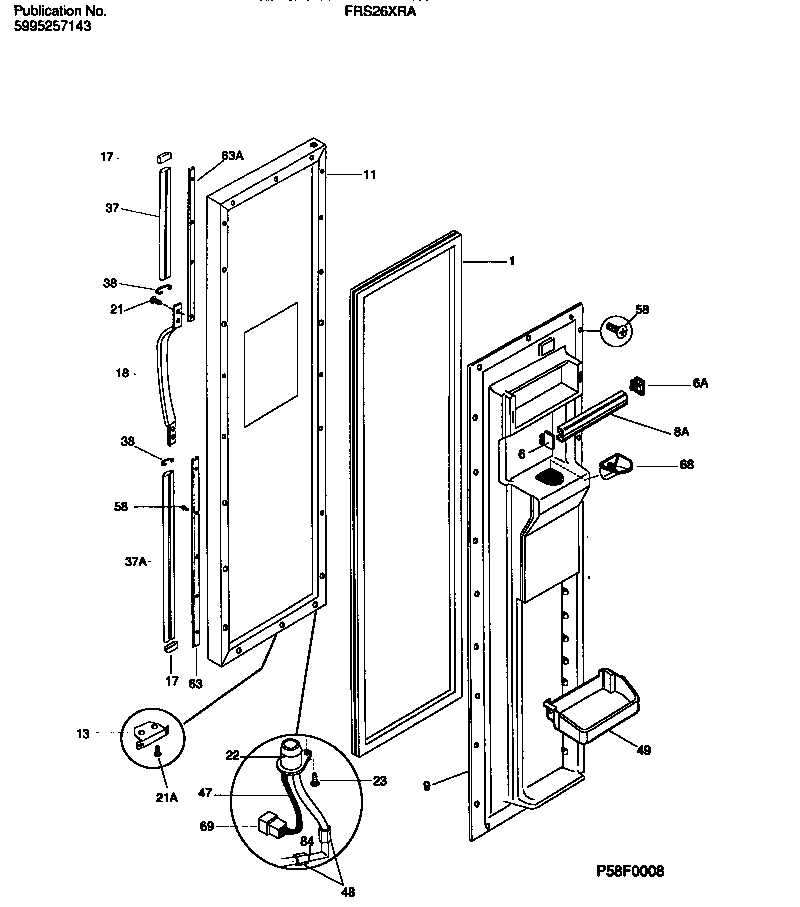

FRS26XRAD1 02 – FREEZER DOOR SECTION

FRS26XRAD1 02 – FREEZER DOOR SECTION

Written by

in

FRS26XRAD1 02 – FREEZER DOOR SECTION

Products

PositionProduct
*78204INSULATION
1WCI 215734303
6AWCI 5303297814
6WCI 5303297813
8AWCI 215474033
9WCI 215434201
11WCI 215781211
13WCI 5303289522
17WCI 218025302
18WCI 218025202
215308000039 Frigidaire Refrigerator Screw
21AWCI 215218600
22AWCI 215598900
22WCI 215615300
23WCI 5303001020
37AWCI 218025403
37WCI 218025404
38WCI 215117301
47WCI 215667300
48NUT, 7/16 X 20, NYLON
49WCI 215390505
585304455651 Frigidaire Refrigerator Screw
63RAIL-HANDLE TRIM MTG, 26.43“, LOWER
63ARAIL-HANDLE TRIM MTG, 11.95“, UPPER
68WCI 215327001
69CONNECTOR-DOOR HARN
84WCI 5308010289
