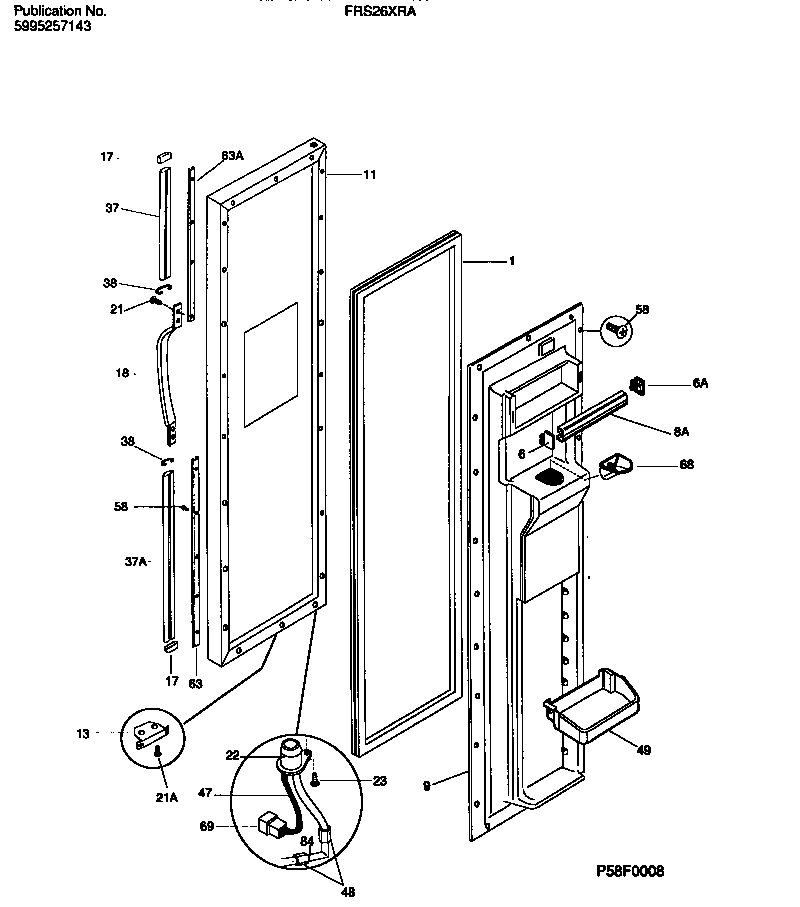

FRS26XRAD2 02 – FREEZER DOOR SECTION

FRS26XRAD2 02 – FREEZER DOOR SECTION

Written by

in

FRS26XRAD2 02 – FREEZER DOOR SECTION

Products

PositionProduct
*78204INSULATION
1WCI 215734303
6WCI 5303297813
6AWCI 5303297814
8AWCI 215474033
9WCI 215434201
11WCI 5303917492
13WCI 5303289522
18WCI 218025202
21218843801 Frigidaire Refrigerator Screw
21AWCI 215218600
22WCI 215615300
22AWCI 215598900
23WCI 5303001020
37WCI 215867005
37ATRIM, HANDLE, 29.84“, DARK PUTTY, LOWER, W/CHROME BAND,
47WCI 215667300
48NUT, 7/16 X 20, NYLON
49WCI 215390505
585304455651 Frigidaire Refrigerator Screw
68WCI 215327001
69CONNECTOR-DOOR HARN
84WCI 5308010289
