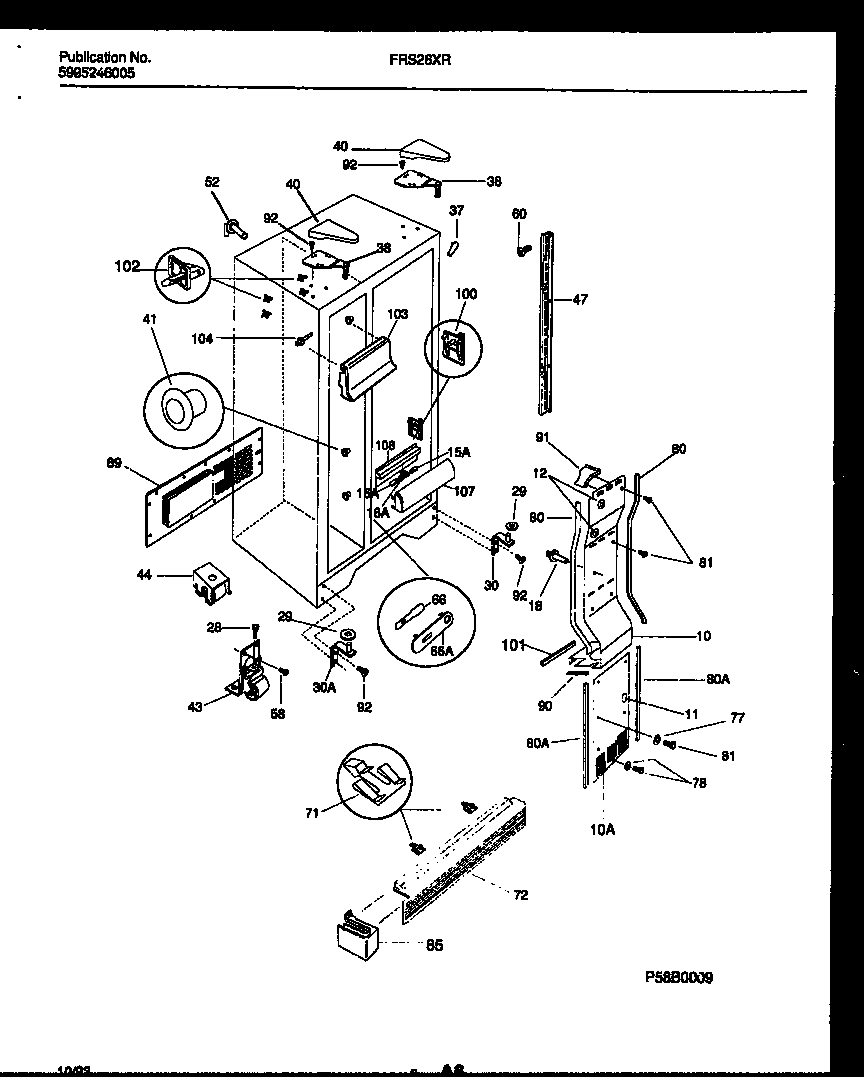

FRS26XRAW0 04 – CABINET PARTS

FRS26XRAW0 04 – CABINET PARTS

Written by

in

FRS26XRAW0 04 – CABINET PARTS

Products

PositionProduct
*883935304455651 Frigidaire Refrigerator Screw
10AWCI 5303289494
10WCI 5303297838
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
15AWCI 215507900
16AWCI 5303299157
18ASUPPORT-AIR DUCT CVR,1.83“ LONG
18WCI 5303289043
28WCI 5303289062
29WCI 215003200
29WCI 215598900
30WCI 215008900
30AWCI 215009100
30CTAPPING PLATE, LH (NOT ILLUSTRATED)
30BTAPPING PLATE, RH (NOT ILLUSTRATED)
37TRIM-CABINET CORNER, WHITE
38WCI 215004501
38WCI 215595701
40WCI 5303288945
415304509705 Frigidaire Refrigerator Grommet
43ASCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
43WCI 5303289059
44WCI 215163900
47WCI 5303288974
52WCI 5303289294
605304455852 Frigidaire Refrigerator Screw
66WCI 215050201
66AWCI 215050101
71ASCREW-CLIP/GRILLE, PAN HEAD, 6-20AB X 1/4 (NOT ILLUSTRATED)
71WCI 215003300
72WCI 5303295757
77WASHER-NYLON,3/16 X 5/8 OD
78AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
80WCI 5303289037
80AWCI 5303289036
815304455650 Frigidaire Refrigerator Screw
85WCI 215003802
89WCI 215176300
