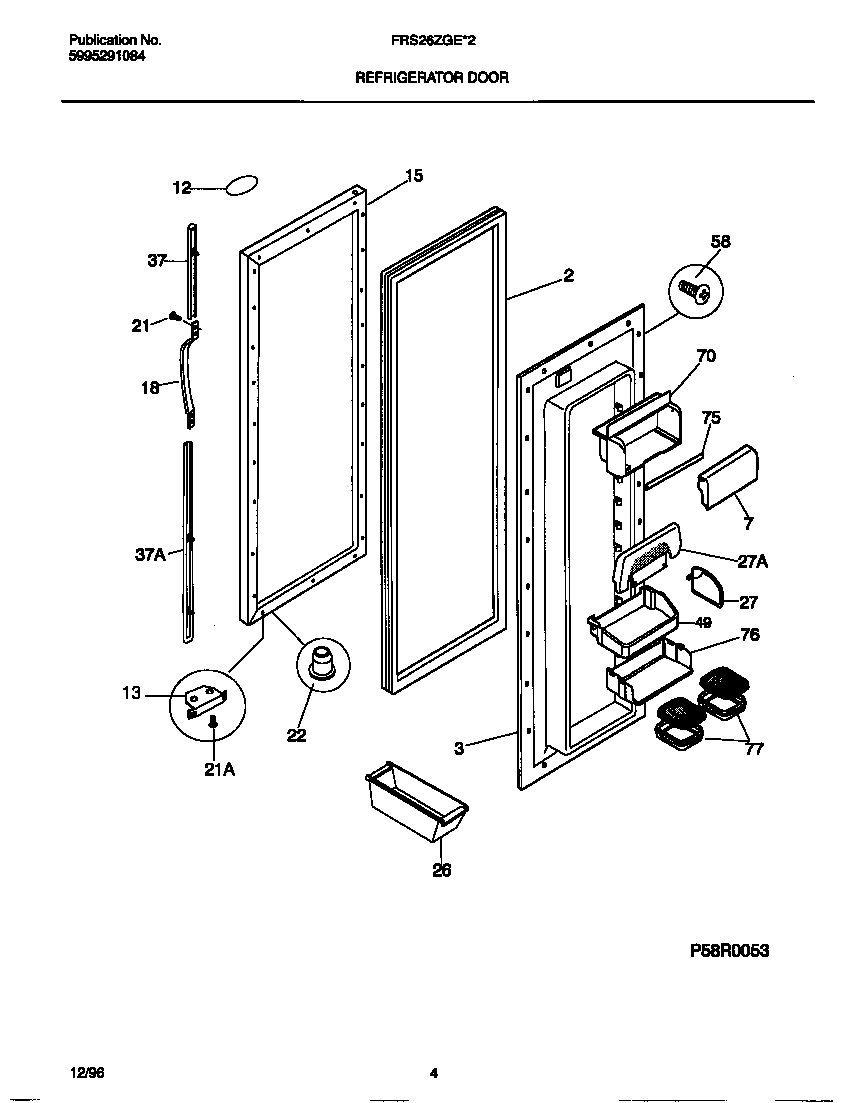

FRS26ZGEW2 03 – REFRIGERATOR DOOR

FRS26ZGEW2 03 – REFRIGERATOR DOOR

Written by

in

FRS26ZGEW2 03 – REFRIGERATOR DOOR

Products

PositionProduct
*08922INSULATION
2WCI 215734314
3WCI 215434301
7WCI 218383101
12WCI 215008604
12WCI 218364004
12TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
13WCI 5303289522
15WCI 5303917488
18WCI 218025201
21218578600 Frigidaire Refrigerator Door Stop Mounting Screw
21218843801 Frigidaire Refrigerator Screw
22WCI 5303289320
26WCI 3204522
27SNUGGER-DOOR BIN, “PADDLE TYPE“, GALLON DOOR BIN
27WCI 218714201
37TRIM-HANDLE,WHITE ,LOWER ,W/DEC GOLD BAND,AND SNAP LOCKS
37CWCI 218676002
37BWCI 215940700
37AWCI 215782300
37TRIM-HANDLE,WHITE ,UPPER ,W/DEC GOLD BAND,AND SNAP LOCK
49WCI 218592303
58Screw,No.10 pan hd ,8-18 x .5
70WCI 218383202
75WCI 218431100
76WCI 218423600
77WCI 218423501
