FRS26ZGGB6 07 – SYSTEM

FRS26ZGGB6 07 – SYSTEM

Written by

in

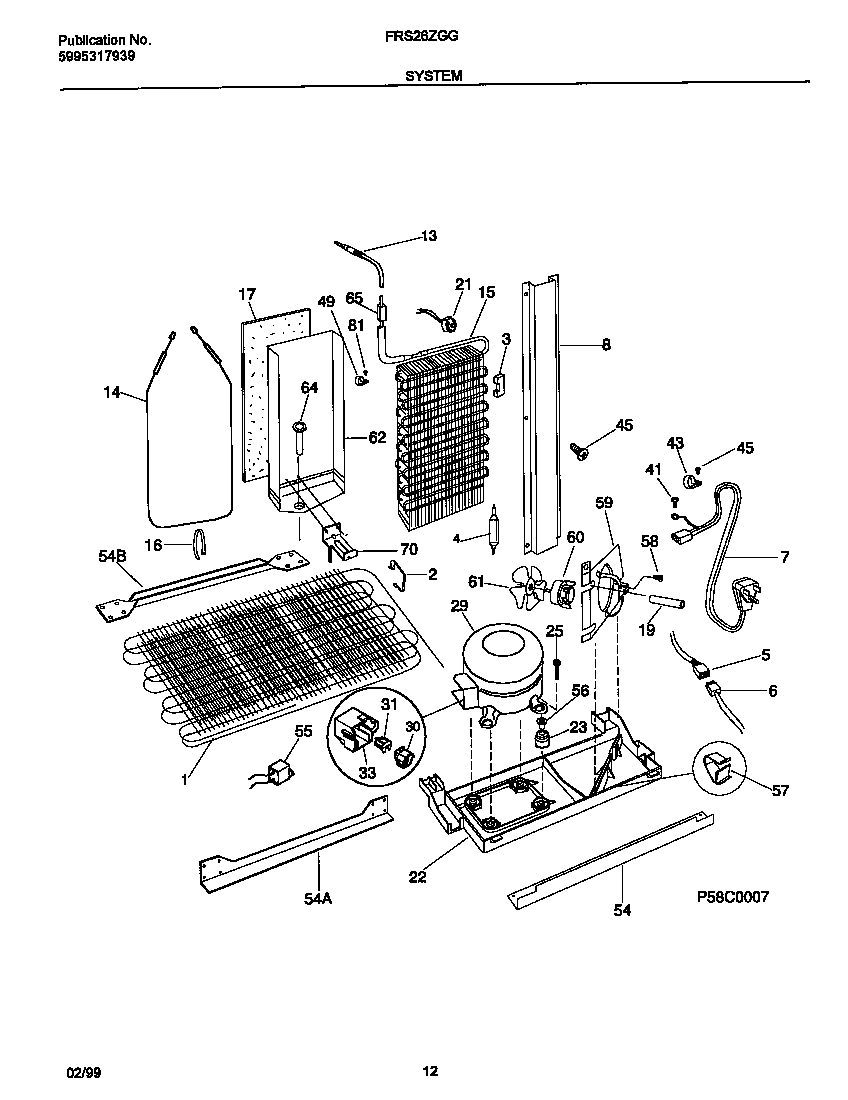

FRS26ZGGB6 07 – SYSTEM

Products

PositionProduct
*130455308000133 Frigidaire Refrigerator Clamp
*13035WCI 215732700
*13039WIRING HARNESS,FILTER HEATER
*13037WIRING HARNESS,REFR CONTROLS
*130435304500008 Frigidaire Oven Screw
*13036SPACER TUBE
*13046WCI 218897001
*13049WCI 5303917166
*13042TUBE-INLET (NOT ILLUSTRATED)
*13040WIRING HARNESS,FRZR CONTROLS
*13038WCI 218463600
*13041WCI 218895301
*130445303001199 Frigidaire Refrigerator Wiring Harness Clamp
*13047WCI 215004700
*13048WCI 215004800
1WCI 218787900
2WCI 5303289029
3WCI 218679603
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 218646100
6WCI 218896001
7WCI 215459201
8WCI 218803400
13WCI 215006701
14218169802 Frigidaire Refrigerator Defrost Heater
15WCI 218691301
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5303289496
19WCI 218631200
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 218811100
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 218773500
295304475102 Frigidaire Refrigerator Compressor Kit
305304410951 Frigidaire Refrigerator Electric Relay Assembly
31WCI 5304407495
32218762900 Frigidaire CLAMP
33WCI 218895701
41SCREW,HEX HD SER WSHR ,8-18 X 0.375
45C5304455651 Frigidaire Refrigerator Screw
45B5304455852 Frigidaire Refrigerator Screw
45AWCI 218769200
49WCI 215506900
54WCI 5303289027
54WCI 5303289292
54WCI 5303289311
55WCI 218492303
56WCI 218769300
57WCI 218247300
58A240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
58BScrew,No.10 pan hd ,8-18 x .5
59WCI 5303289031
60BWCI 215501901
61WCI 5303289032
62WCI 215048701
64241957901 Frigidaire Refrigerator Tube-Drain
65WCI 5303289301
70WCI 5303289041
785308000039 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
