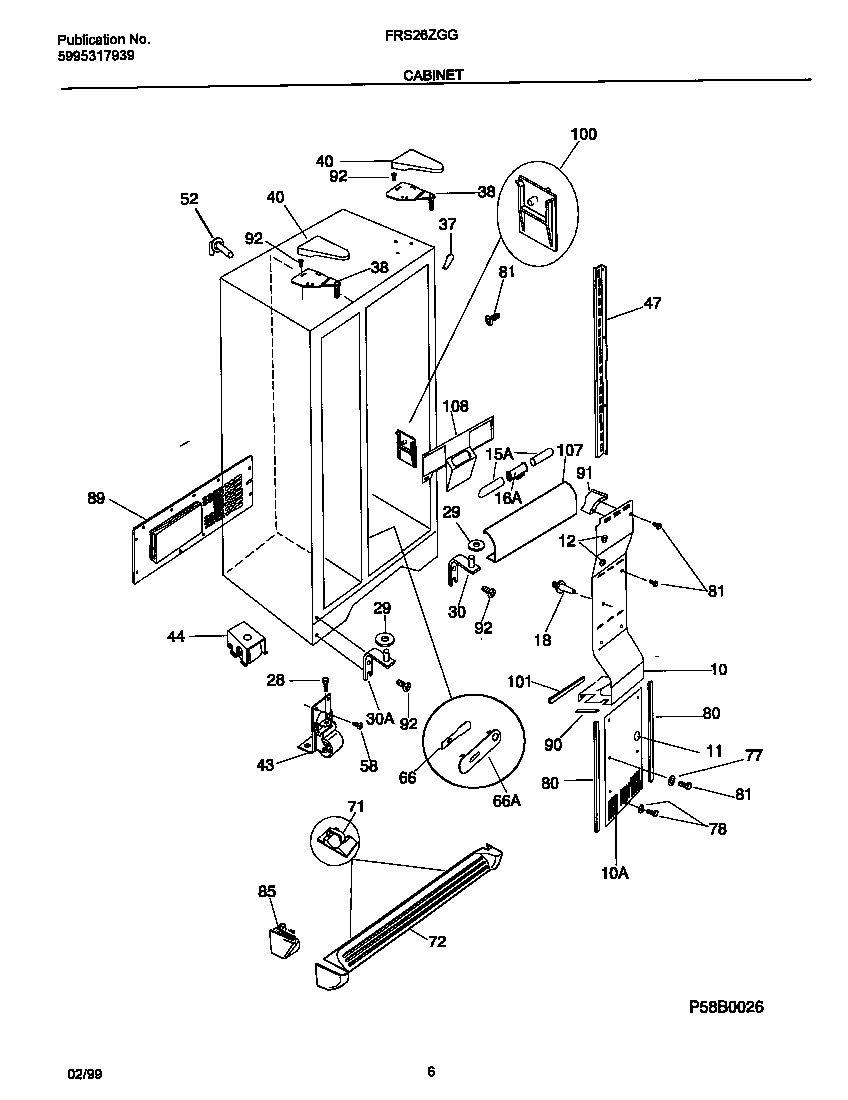

FRS26ZGGD5 04 – CABINET

Products

PositionProduct
*13011WCI 218730800
*13017WCI 218902101
*13009WCI 218871201
*13015WCI 5303289037
*13018WASHER, .28 X .62 X .19, NYLON
*13010WCI 218730700
*13014WCI 5303289036
*13012SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*13016WCI 5303322647
*13008SUPPORT-AIR DUCT CVR,1.83“ LONG
*13007NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*13022PLUG, BUTTON, CABINET LINER (NI)
*13013WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*13020TOUCH, UP PAINT, ALMOND (NI)
10WCI 215637401
10WCI 215637602
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
15WCI 218708700
16WCI 5303299157
18WCI 5303289043
28WCI 5303289062
29BWCI 215598900
29AWCI 215314301
30WCI 215008900
30WCI 215009100
37WCI 5303321082
38BWCI 218215224
38AWCI 218215222
40WCI 5303318774
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 218171301
66WCI 215050201
71218515401 Frigidaire Refrigerator Clip
72WCI 218359605
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218359804
89WCI 218871501
90WCI 215022602
91WCI 218770000
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101BWCI 218663103
101AWCI 215305702
107WCI 218835901
108WCI 218834202
