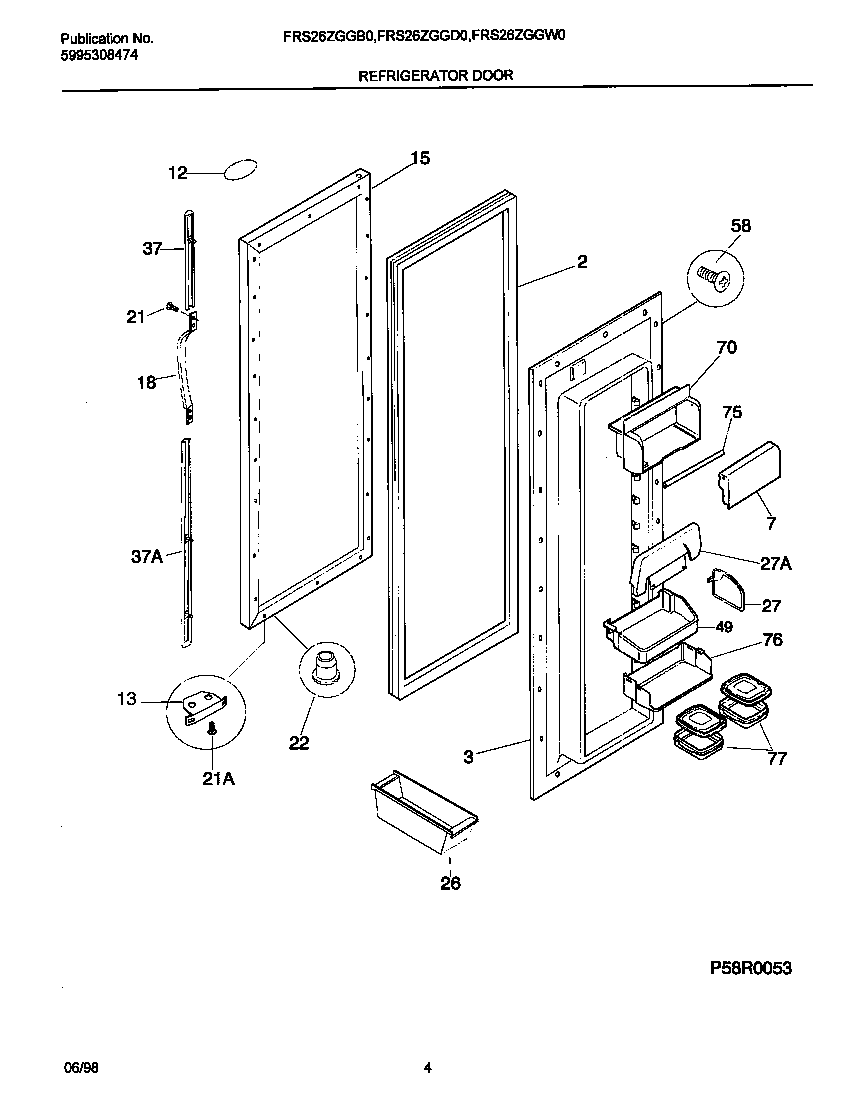

FRS26ZGGW0 03 – REFRIGERATOR DOOR

FRS26ZGGW0 03 – REFRIGERATOR DOOR

Written by

in

FRS26ZGGW0 03 – REFRIGERATOR DOOR

Products

PositionProduct
*69684WCI 215008604
*69686WCI 215782300
*69687WCI 215940700
*69685TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
*69688INSULATION
2WCI 215734314
3WCI 215434301
7WCI 218383101
12WCI 218364004
13WCI 5303289522
15WCI 5303917488
18WCI 218025201
21218578600 Frigidaire Refrigerator Door Stop Mounting Screw
21218843801 Frigidaire Refrigerator Screw
22WCI 5303289320
26WCI 3204522
27WCI 218714201
27SNUGGER-DOOR BIN, “PADDLE TYPE“, GALLON DOOR BIN
37TRIM-HANDLE,WHITE ,LOWER ,W/DEC GOLD BAND,AND SNAP LOCKS
37WCI 218676003
37TRIM-HANDLE,WHITE ,UPPER ,W/DEC GOLD BAND,AND SNAP LOCK
49WCI 218592303
58Screw,No.10 pan hd ,8-18 x .5
70WCI 218836302
75WCI 218716300
76WCI 218423600
77WCI 218423501
