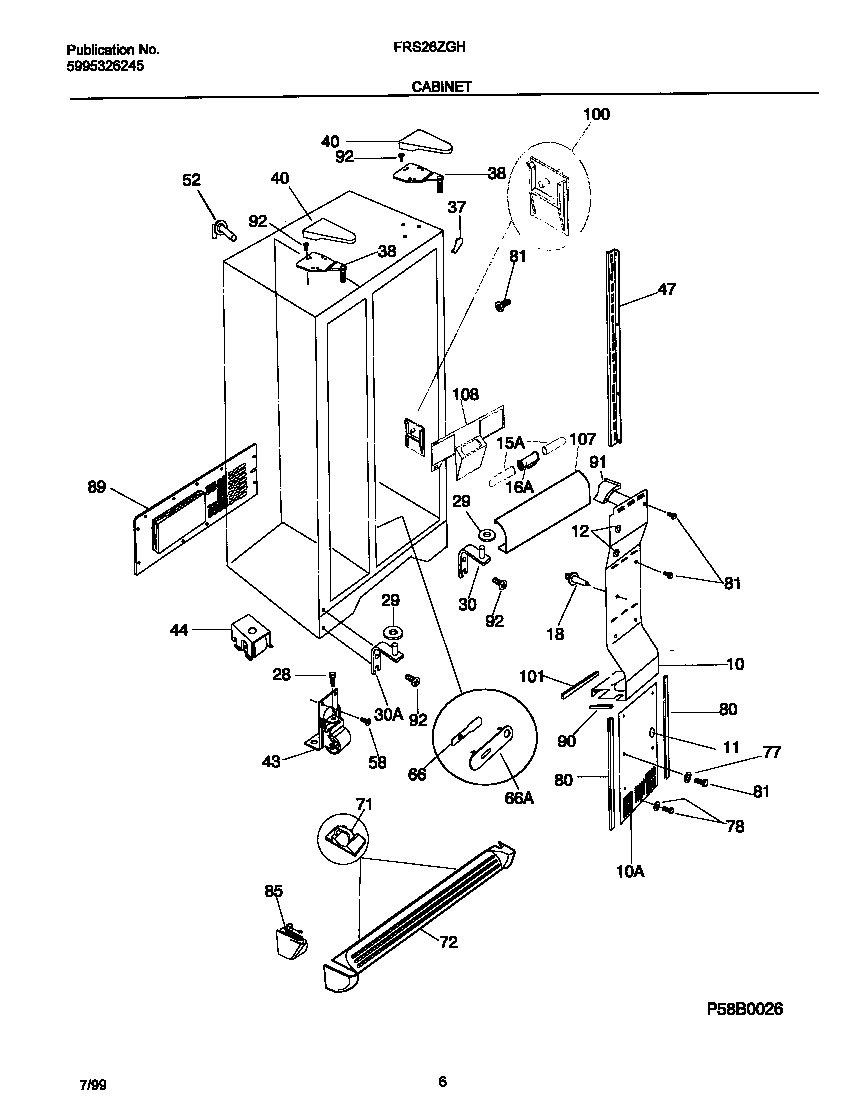

FRS26ZGHB1 04 – CABINET

FRS26ZGHB1 04 – CABINET

Written by

in

FRS26ZGHB1 04 – CABINET

Products

PositionProduct
*817405303321321 Frigidaire Refrigerator Black Touch-Up Paint
*81737WCI 218902101
*81731WCI 218730800
*81734WCI 5303289036
*81735WCI 5303289037
*81729WCI 215314301
*81730WCI 218871201
*81732SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*81736WCI 5303322647
*81728SUPPORT-AIR DUCT CVR,1.83“ LONG
*81727NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*81733WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10WCI 215637401
10WCI 215637602
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
15WCI 218708700
16WCI 5303299157
18WCI 5303289043
28WCI 5303289062
29WCI 215003200
30BWCI 218730700
30AWCI 215009100
30WCI 215008900
37WCI 5303321083
38AWCI 218215218
38BWCI 218215220
40WCI 5303323268
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 215050201
66WCI 218171301
71218515401 Frigidaire Refrigerator Clip
72WCI 218359609
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218922706
89WCI 218871501
90WCI 215022602
91WCI 218770000
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101AWCI 215305702
101BWCI 218663103
107WCI 218835901
108WCI 218834202
