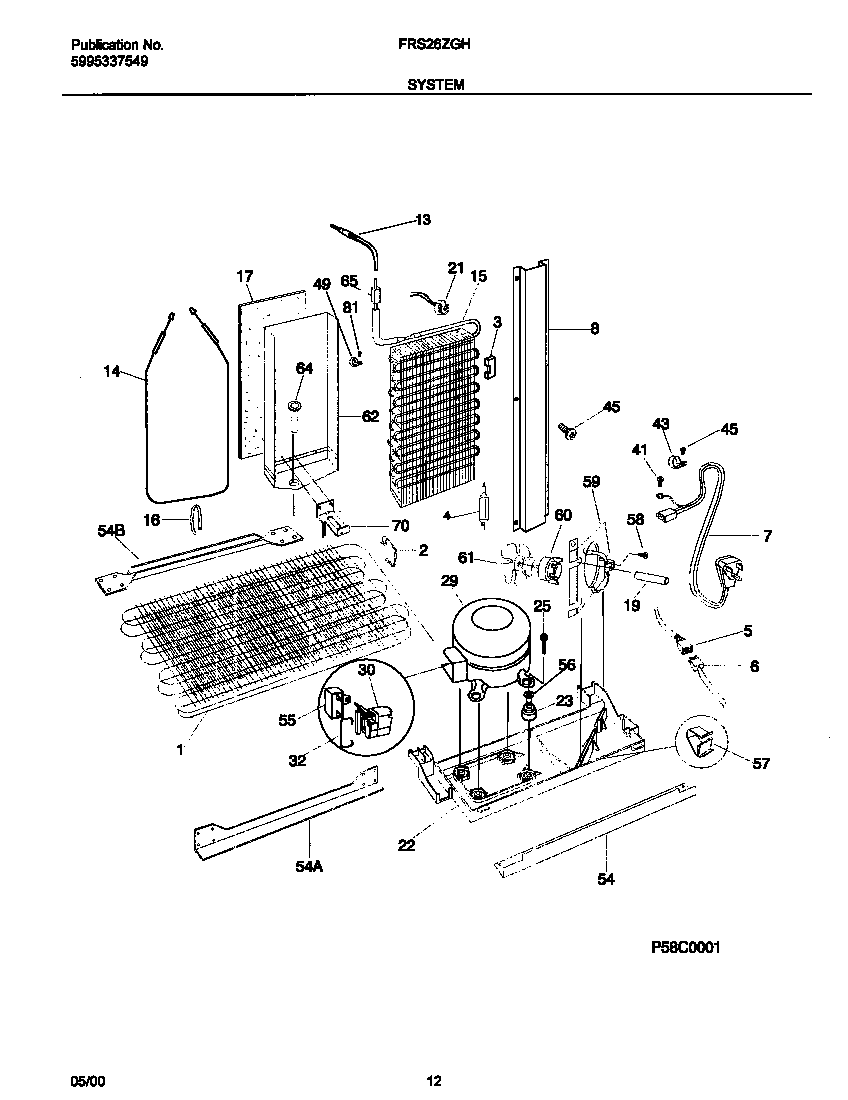

FRS26ZGHB3 07 – SYSTEM

FRS26ZGHB3 07 – SYSTEM

Written by

in

FRS26ZGHB3 07 – SYSTEM

Products

PositionProduct
*604855308000133 Frigidaire Refrigerator Clamp
*60479SPACER TUBE
*604885304455852 Frigidaire Refrigerator Screw
*60489WCI 218897001
*60484TUBE-INLET (NOT ILLUSTRATED)
*60487WCI 218769200
*60478SPACER-COND TUBE,BLACK
*60483WIRING HARNESS,FRZR CONTROLS
*60491WCI 215004800
*60490WCI 215004700
*60486SCREW,HEX HD SER WSHR ,8-18 X 0.375
*60480WCI 5304406721
*60481WIRING HARNESS,REFR CONTROLS
*60482WCI 218463600
*60492WCI 5303917166
1WCI 218787900
2WCI 5303289029
3WCI 218679603
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 218959901
6WIRING HARNESS,MACHINE COMPT ,W/SNUBBER CAP.
7WCI 215459201
8WCI 218803400
13WCI 215006701
14218169802 Frigidaire Refrigerator Defrost Heater
15WCI 218691301
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5304415956
19WCI 218631200
21297216600 Frigidaire Refrigerator Defrost Thermostat
22WCI 218811100
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 218773500
295304475102 Frigidaire Refrigerator Compressor Kit
30WCI 218721110
32WCI 216649100
415308000039 Frigidaire Refrigerator Screw
43A5303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455651 Frigidaire Refrigerator Screw
49WCI 215506900
54WCI 5303289027
54BWCI 215732700
54WCI 5303289292
54AWCI 5303289311
555304464438 Frigidaire Compressor Run Capacitor
56WCI 218769300
57WCI 218247300
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 5303289031
60WCI 215501901
61WCI 5303289032
62WCI 215048703
64241957901 Frigidaire Refrigerator Tube-Drain
65WCI 5303289301
70WCI 5303289041
815304455650 Frigidaire Refrigerator Screw
