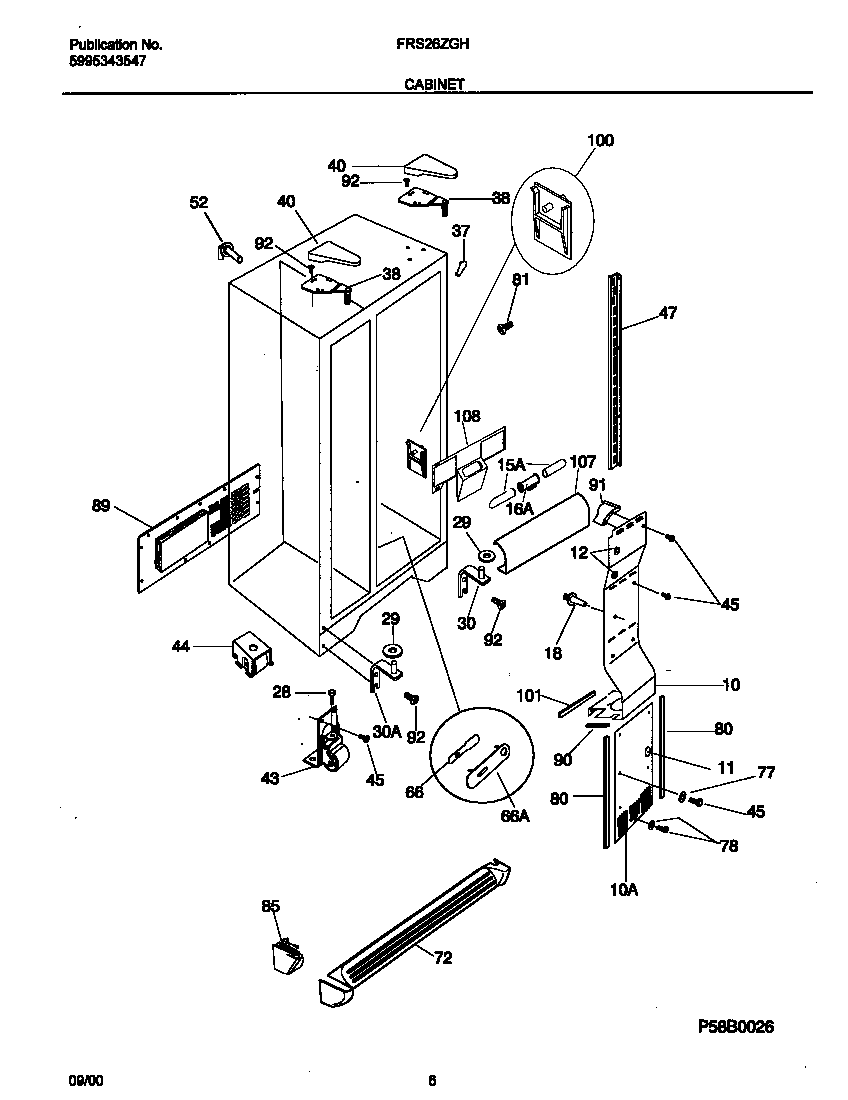

FRS26ZGHD4 04 – CABINET

Products

Position	Product
*16046	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*16051	SCREW,HEX HD SER WSHR ,8-18 X 0.375
*16055	WCI 218902101
*16048	WCI 218871201
*16049	WCI 218979701
*16050	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*16053	WCI 5303322647
*16047	SUPPORT-AIR DUCT CVR,1.83“ LONG
*16057	TOUCH, UP PAINT, ALMOND (NI)
*16054	WCI 215598900
*16052	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10	WCI 215637602
10	WCI 215637402
11	5303208309 Frigidaire Refrigerator Plug Hole
12	5303001147 Frigidaire Refrigerator Plug-Harness Hole
15	WCI 218708700
16	WCI 5303299157
18	WCI 5303289043
28	WCI 5303289062
29	WCI 215314301
30A	WCI 218993601
30	WCI 218993801
30B	WCI 218979601
37	WCI 5303321082
38A	WCI 218215250
38B	WCI 218215252
40	WCI 5303318774
43	WCI 218615300
44	WCI 218738300
45	5304455651 Frigidaire Refrigerator Screw
47	WCI 218659500
52	TUBE-WATER,ICE MOLD FILL ,ELBOW
66	WCI 218171301
66	WCI 215050201
72	WCI 218359605
77	WASHER-NYLON,3/16 X 5/8 OD
80	WCI 218249802
81	5304455650 Frigidaire Refrigerator Screw
85	WCI 218922704
89	WCI 218871501
90	WCI 215022602
91	WCI 218964701
92	241710601 Frigidaire Refrigerator Screw
100	SUPPORT-PAN COVER
101A	WCI 215305702
101B	WCI 218663103
107	WCI 218835901
108	WCI 218834202
