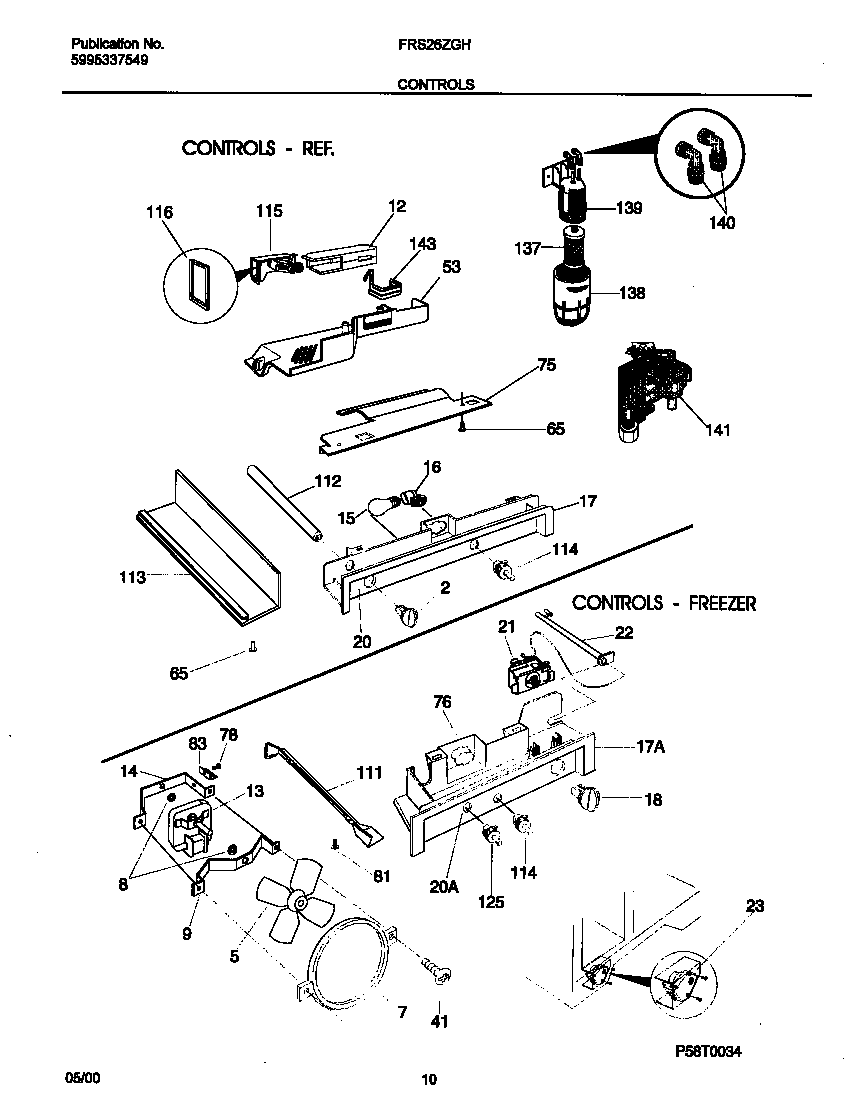

FRS26ZGHW3 06 – CONTROLS

FRS26ZGHW3 06 – CONTROLS

Written by

in

FRS26ZGHW3 06 – CONTROLS

Products

PositionProduct
*604735304455649 Frigidaire Refrigerator Screw
*60477WIRING HARNESS,FILTER HEATER
*60471WCI 218731102
*60474SHIELD-DEFROST TIMR,BTM
*60470215474201 Frigidaire Refrigerator Washer
*60472COVER-DEFROST TIMER, TOP
*60476218904301 Frigidaire Refrigerator O-Ring Cup P1
*60475NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
2WCI 5303307883
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
12WCI 215809600
13WCI 215426200
14BRACKET-MOTOR MTG, REAR
15316538904 Frigidaire Oven Lamp Light
16241559801 Frigidaire Light Socket Refrigerator
17ACONTROL BOX, FRZR
17WCI 218468701
17BSCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000,REFR/FRZR
18WCI 5303307882
20WCI 5303307888
20WCI 5303307884
21WCI 5303300027
22WCI 5303319683
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
415308000039 Frigidaire Refrigerator Screw
53WCI 215809511
65WCI 5303001361
75WCI 218465101
76WCI 218225800
785304455651 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
111WCI 5303297842
112WCI 215277102
113COVER – DMPR ROD EXT
1145303289051 Frigidaire Refrigerator Light Switch
115WCI 215011505
116WCI 215011400
137WCI 215334201
138240434401 Frigidaire Refrigerator Water Filter Cup Primary
139WCI 218893201
140WCI 218518700
141BScrew-solenoid valve,hx hd-slot wshr ,12-24 x 3/4
141A218832401 Frigidaire Water Inlet Valve
143WCI 218696700
