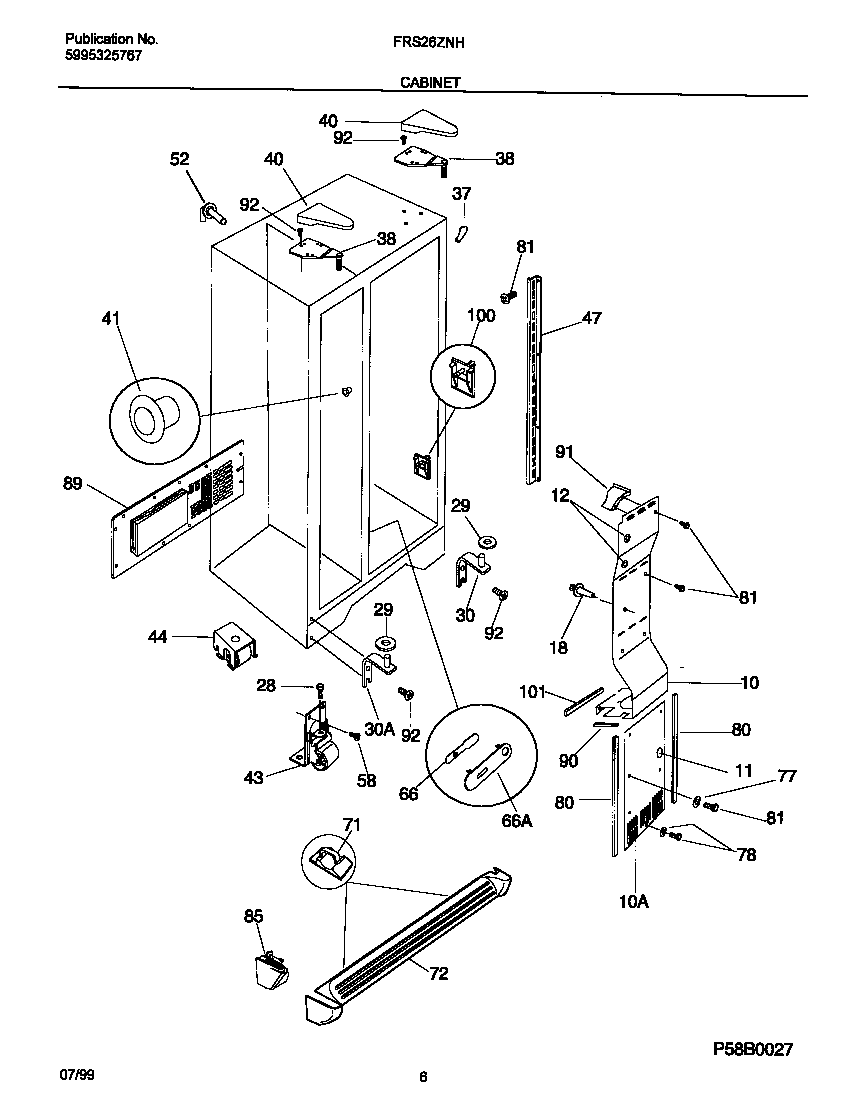

FRS26ZNHD1 04 – CABINET

FRS26ZNHD1 04 – CABINET

Written by

in

FRS26ZNHD1 04 – CABINET

Products

PositionProduct
*04088SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*04085WCI 218871201
*04092WCI 218902101
*04091WCI 5303322647
*04084SUPPORT-AIR DUCT CVR,1.83“ LONG
*04083NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*04094TOUCH, UP PAINT, ALMOND (NI)
*04089WCI 5303289036
*04086WCI 218730800
*040875304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*04090WCI 5303289037
10BWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10AWCI 215637401
10WCI 215637602
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
28WCI 5303289062
29AWCI 215314301
29BWCI 215598900
30BWCI 218730700
30AWCI 215009100
30WCI 215008900
37WCI 5303321082
38BWCI 218215224
38AWCI 218215222
40WCI 5303318774
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 215050201
66WCI 218171301
71218515401 Frigidaire Refrigerator Clip
72WCI 218359605
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218922704
89WCI 218871501
90WCI 215022602
91WCI 218770000
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101AWCI 215305702
101BWCI 218663103
