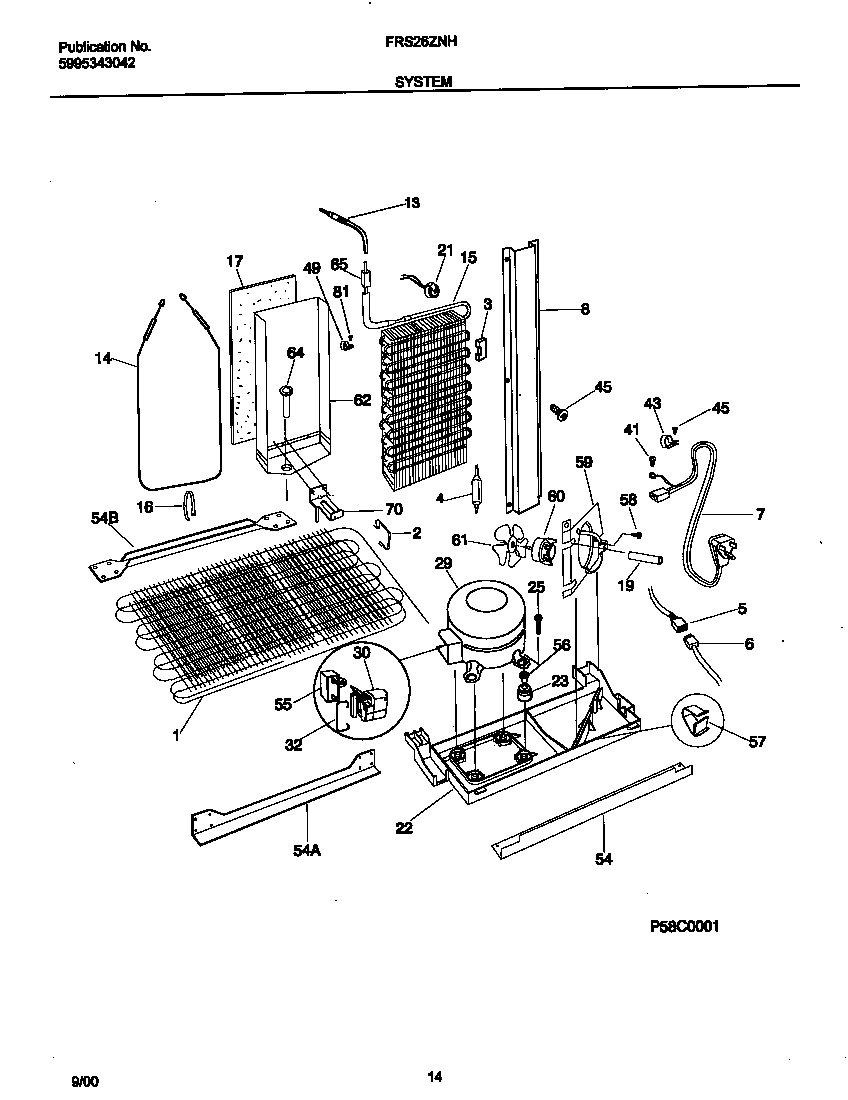

FRS26ZNHD4 07 – SYSTEM

Products

PositionProduct
*924795308000133 Frigidaire Refrigerator Clamp
*92473WCI 5304406721
*92480WCI 218769200
*92485WIRING HARNESS,FILTER HEATER
*92475WIRING HARNESS,REFR CONTROLS
*924815304455852 Frigidaire Refrigerator Screw
*92482WCI 218897001
*92474WCI 218679605
*92476WIRING HARNESS,FRZR CONTROLS
*92484WCI 218956801
*92477TUBE-INLET (NOT ILLUSTRATED)
*92486WCI 5303917166
*92472SPACER TUBE
*92471SPACER-COND TUBE,BLACK
*92483WCI 218956701
1WCI 218787900
2WCI 5303289029
3WCI 218679608
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 218959901
6WCI 218960201
7WCI 215459201
8WCI 218803400
13WCI 215006701
14218169805 Frigidaire Refrigerator Defrost Heater
15240553101 Frigidaire Refrigerator Evaporator
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5304415956
19WCI 218631200
21297216600 Frigidaire Refrigerator Defrost Thermostat
22WCI 218811100
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 218773500
295304475102 Frigidaire Refrigerator Compressor Kit
30WCI 218721110
32WCI 216649100
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455651 Frigidaire Refrigerator Screw
49218990801 Frigidaire Refrigerator Evaporator/Cover Mount Bracket
54WCI 5303289292
54WCI 5303289311
54WCI 5303289027
555304464438 Frigidaire Compressor Run Capacitor
56WCI 218769300
57WCI 218247300
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 218956601
60WCI 218956401
61WCI 218956501
62WCI 215048703
64241957901 Frigidaire Refrigerator Tube-Drain
65WCI 5303289301
70WCI 5303289041
815304455650 Frigidaire Refrigerator Screw
