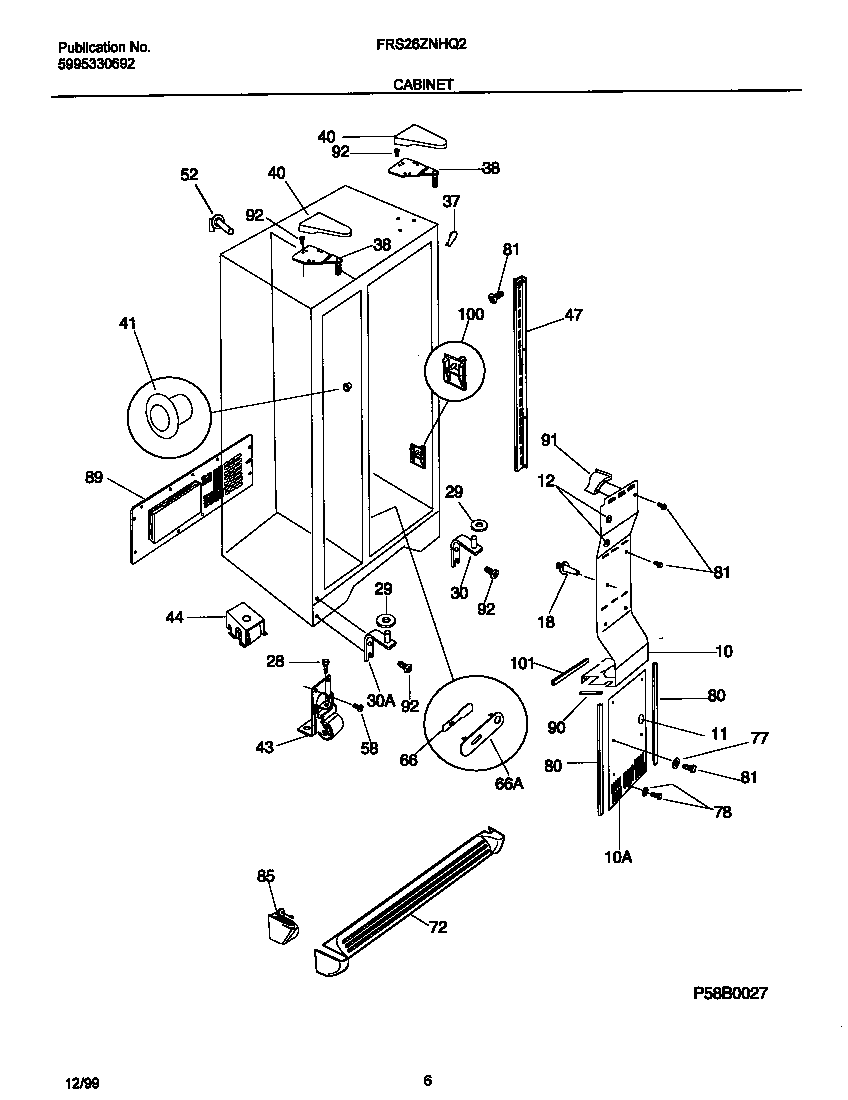

FRS26ZNHQ2 04 – CABINET

FRS26ZNHQ2 04 – CABINET

Written by

in

FRS26ZNHQ2 04 – CABINET

Products

PositionProduct
*820545304414035 Frigidaire Refrigerator Touch Up Paint Bisque
*82053WCI 218902101
*82045WCI 215598900
*82047WCI 218730800
*82049SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*82050WCI 5303289036
*82044SUPPORT-AIR DUCT CVR,1.83“ LONG
*82043NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*82046WCI 218871201
*82052WCI 5303322647
*82051WCI 5303289037
*820485304500407 Frigidaire Refrigerator Shelf Mounting Grommet
10WCI 215637401
10WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10WCI 215637602
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
28WCI 5303289062
29WCI 215314301
30WCI 215009100
30WCI 215008900
30WCI 218730700
37WCI 5304413167
38WCI 218215229
38WCI 218215231
40WCI 5304414819
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 218171301
66WCI 215050201
72WCI 218359616
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218922708
89WCI 218871501
90WCI 215022602
91WCI 218770000
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101WCI 218663103
101WCI 215305702
