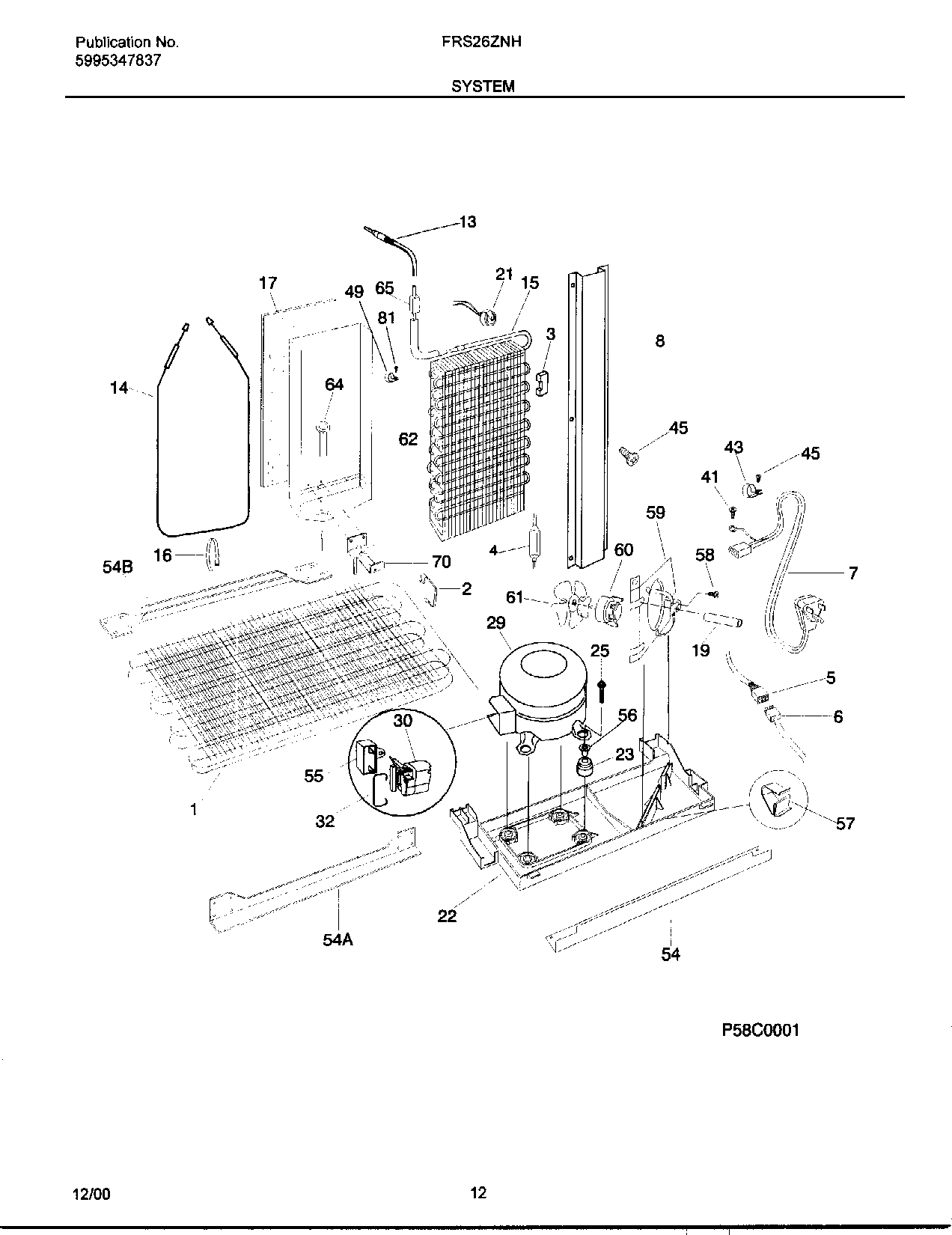

FRS26ZNHW5 12 – SYSTEM

Products

Position	Product
NI	5308000133 Frigidaire Refrigerator Clamp
NI	WCI 218769200
NI	WCI 5304406721
NI	WIRING HARNESS,REFR CONTROLS
NI	5304455852 Frigidaire Refrigerator Screw
NI	WCI 218897001
NI	WCI 218679605
NI	WIRING HARNESS,FRZR CONTROLS
NI	WCI 218956801
NI	TUBE-INLET (NOT ILLUSTRATED)
NI	WCI 5303917166
NI	SPACER TUBE
NI	SPACER-COND TUBE,BLACK
NI	WCI 218956701
1	WCI 218787900
2	WCI 5303289029
3	WCI 218679608
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	WCI 218959901
6	WCI 218960201
7	WCI 215459201
8	WCI 218803400
13	WCI 215006701
14	218169805 Frigidaire Refrigerator Defrost Heater
15	240553101 Frigidaire Refrigerator Evaporator
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	WCI 5304415956
19	WCI 218631200
21	297216600 Frigidaire Refrigerator Defrost Thermostat
22	WCI 218811100
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	WCI 218773500
29	5304475102 Frigidaire Refrigerator Compressor Kit
30	WCI 218721110
32	WCI 216649100
41	5308000039 Frigidaire Refrigerator Screw
43	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
45	5304455651 Frigidaire Refrigerator Screw
49	218990801 Frigidaire Refrigerator Evaporator/Cover Mount Bracket
54A	WCI 215732700
54A	WCI 5303289311
54B	WCI 5303289292
54	WCI 5303289027
55	5304464438 Frigidaire Compressor Run Capacitor
56	WCI 218769300
57	WCI 218247300
58	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59	WCI 218956601
60	WCI 218956401
61	WCI 218956501
62	WCI 215048703
64	241957901 Frigidaire Refrigerator Tube-Drain
65	WCI 5303289301
70	WCI 5303289041
81	5304455650 Frigidaire Refrigerator Screw
