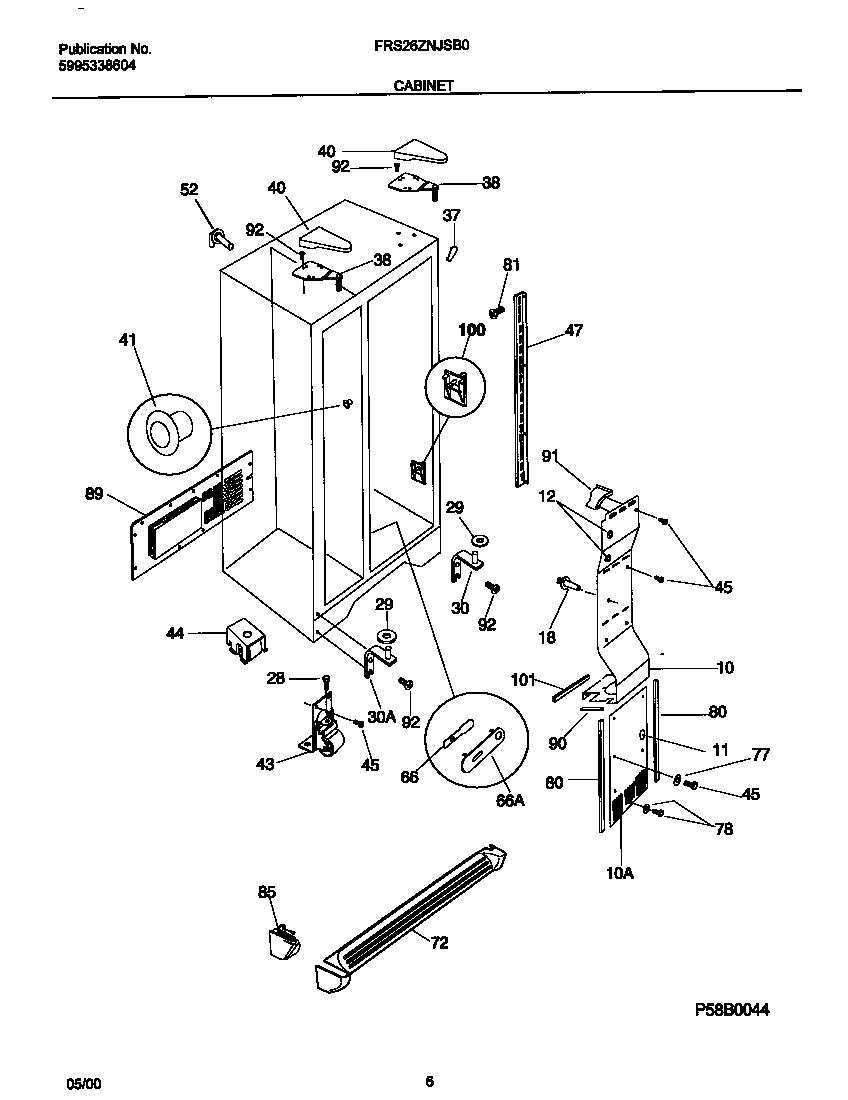

FRS26ZNJSB0 04 – CABINET

FRS26ZNJSB0 04 – CABINET

Written by

in

FRS26ZNJSB0 04 – CABINET

Products

PositionProduct
*862555303321321 Frigidaire Refrigerator Black Touch-Up Paint
*86247SUPPORT-AIR DUCT CVR,1.83“ LONG
*86246NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*86254WCI 218902101
*86253WCI 5303322647
*86249WCI 218871201
*862515304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*86248WCI 215598900
*86250WCI 218979701
*86252SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
10WCI 215637602
10WCI 215637401
10WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
28WCI 5303289062
29WCI 215314301
30WCI 215009100
30WCI 218979601
30WCI 215008900
37WCI 5303321083
38WCI 218215248
38WCI 218215246
40WCI 5303323268
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
455304455651 Frigidaire Refrigerator Screw
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 218171301
66WCI 215050201
72WCI 218359609
77WASHER-NYLON,3/16 X 5/8 OD
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218922706
89WCI 218871501
90WCI 215022602
91WCI 218964701
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101WCI 215305702
101WCI 218663103
