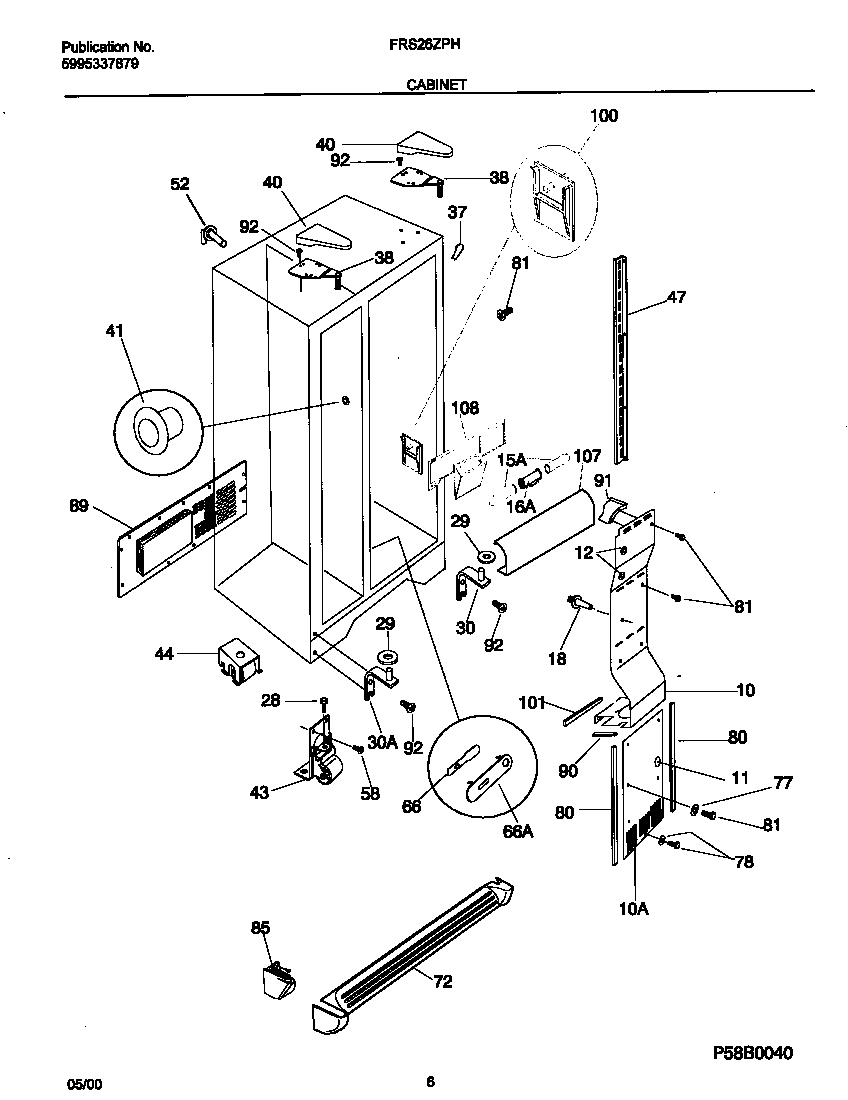

FRS26ZPHW2 04 – CABINET

FRS26ZPHW2 04 – CABINET

Written by

in

FRS26ZPHW2 04 – CABINET

Products

PositionProduct
*91565WCI 218871201
*91564WCI 215314301
*91566WCI 218979701
*91569WCI 5303289036
*91570WCI 5303289037
*91568SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*91571WCI 5303322647
*91563SUPPORT-AIR DUCT CVR,1.83“ LONG
*91562NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*915735303321319 Frigidaire Refrigerator White Touch Up Paint
*91572WCI 218902101
*915675304500407 Frigidaire Refrigerator Shelf Mounting Grommet
10BWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10WCI 215637602
10AWCI 215637401
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
15WCI 218708700
16WCI 5303299157
18WCI 5303289043
28WCI 5303289062
29WCI 215598900
30BWCI 218979601
30AWCI 215009100
30WCI 215008900
37WCI 5303321081
38BWCI 218215247
38AWCI 218215245
40WCI 5303318773
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 218171301
66WCI 215050201
72WCI 218359601
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218922702
89WCI 218871501
90WCI 215022602
91WCI 218964701
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101AWCI 215305702
101BWCI 218663103
107WCI 218835901
108WCI 218834202
