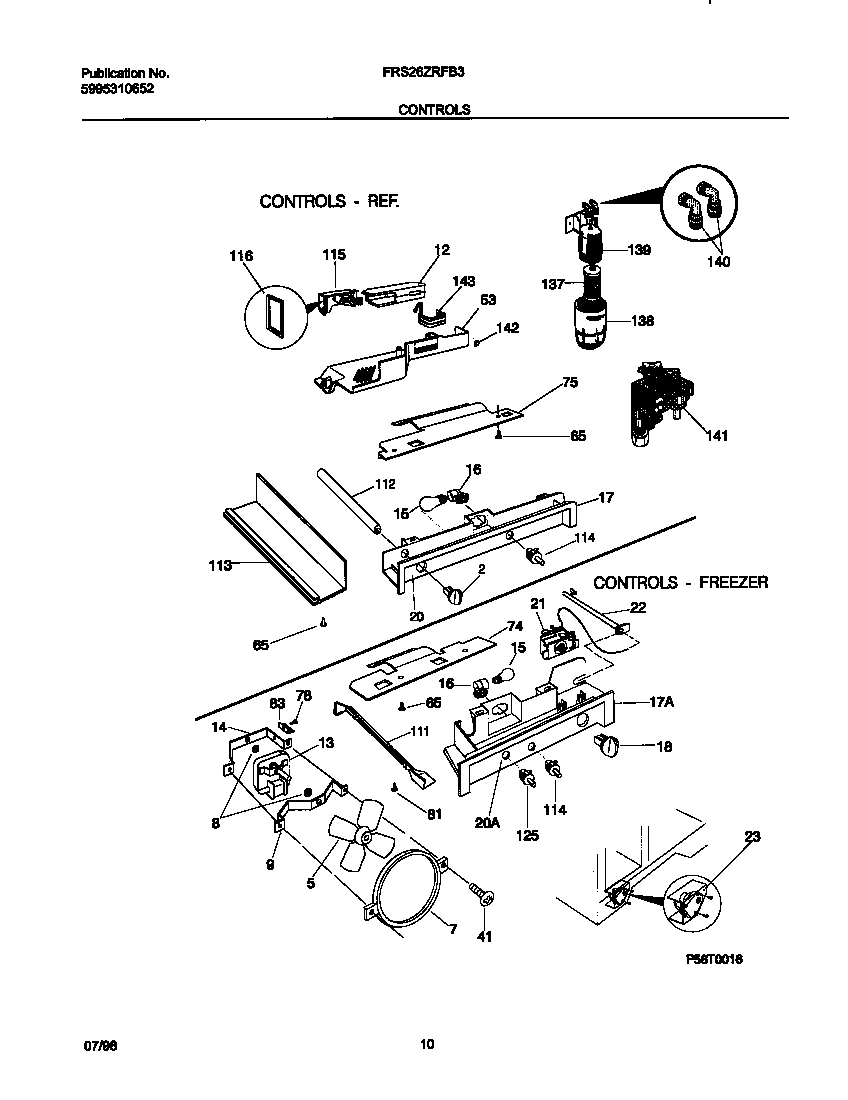

FRS26ZRFB3 06 – CONTROLS

Products

PositionProduct
*281445304455649 Frigidaire Refrigerator Screw
*28143COVER-DEFROST TIMER, TOP
*28149WIRING HARNESS,FILTER HEATER
*28145SHIELD-DEFROST TIMR,BTM
*28142WCI 218731102
*28141SCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000,REFR/FRZR
*28148Screw-solenoid valve,hx hd-slot wshr ,12-24 x 3/4
*28140215474201 Frigidaire Refrigerator Washer
*28147218710300 Frigidaire Refrigerator Water Filter Wrench
*28146NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
2WCI 5303308569
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
12WCI 215809600
13WCI 215426200
14BRACKET-MOTOR MTG, REAR
15316538904 Frigidaire Oven Lamp Light
16241559801 Frigidaire Light Socket Refrigerator
17BOX – CONTROL, REFR
17CONTROL BOX, FRZR
18WCI 5303308568
20WCI 5303308611
20WCI 5303308610
21WCI 5303300027
22WCI 5303319683
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
415308000039 Frigidaire Refrigerator Screw
53WCI 215809508
65WCI 5303001361
74WCI 218465000
75WCI 218465100
785304455651 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
111WCI 5303297842
112WCI 215277102
113COVER – DMPR ROD EXT
1145303289051 Frigidaire Refrigerator Light Switch
115WCI 215011502
116WCI 215011400
125WCI 218904602
137WFCB WATER FILTER PURESOURCE 4"
138WCI 218657401
139HOUSING-WTR FILTER
140WCI 218518700
141VALVE-WATER,DUAL SOLENOID ,115 V ,W/NUT
142WCI 218657701
143WCI 218696700
