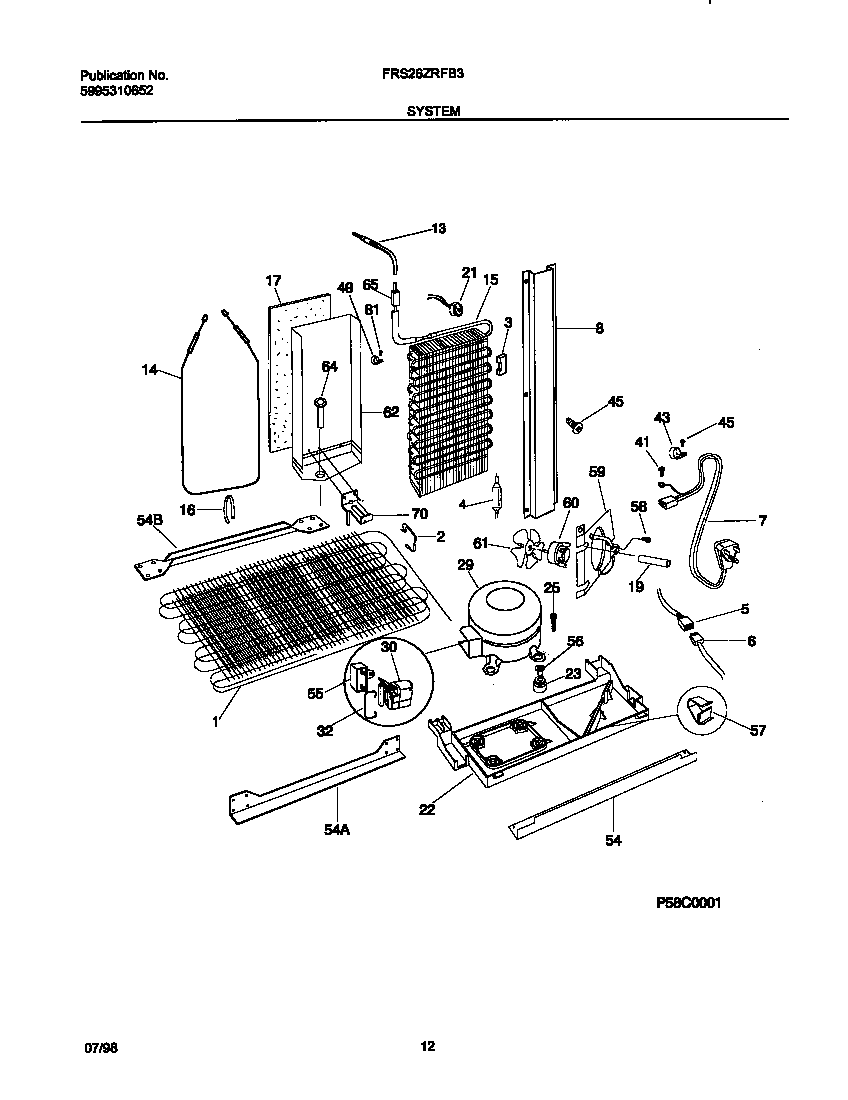

FRS26ZRFB3 07 – SYSTEM

FRS26ZRFB3 07 – SYSTEM

Written by

in

FRS26ZRFB3 07 – SYSTEM

Products

PositionProduct
*281585304455852 Frigidaire Refrigerator Screw
*28153WIRING HARNESS,FILTER HEATER
*28159WCI 218773500
*281565308000133 Frigidaire Refrigerator Clamp
*28152WIRING HARNESS,REFR CONTROLS
*28150SPACER TUBE
*28163WCI 5303917166
*28154TUBE-INLET (NOT ILLUSTRATED)
*28162WCI 215004800
*28161WCI 215004700
*28157WCI 218769200
*28151HARNESS-WIRING, FRZR CONTROLS (NON-ILLUSTRATED)
1WCI 218787900
2WCI 5303289029
3WCI 218679602
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 218646100
6WIRING HARNESS,MACHINE COMPT
7WCI 215459201
8WCI 218803400
13WCI 215006701
14218169802 Frigidaire Refrigerator Defrost Heater
15WCI 218691301
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5303289496
19WCI 218631200
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 218811100
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 215014200
295304475102 Frigidaire Refrigerator Compressor Kit
30WCI 216008900
31WCI 5303308603
32WCI 215012000
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455651 Frigidaire Refrigerator Screw
49WCI 215506900
54WCI 5303289027
54WCI 5303289311
54WCI 5303289292
555304464438 Frigidaire Compressor Run Capacitor
56WCI 215014100
57WCI 218247300
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 5303289031
60WCI 215501901
61WCI 5303289032
62WCI 215048701
64241957901 Frigidaire Refrigerator Tube-Drain
65WCI 5303289301
70WCI 5303289041
815304455650 Frigidaire Refrigerator Screw
