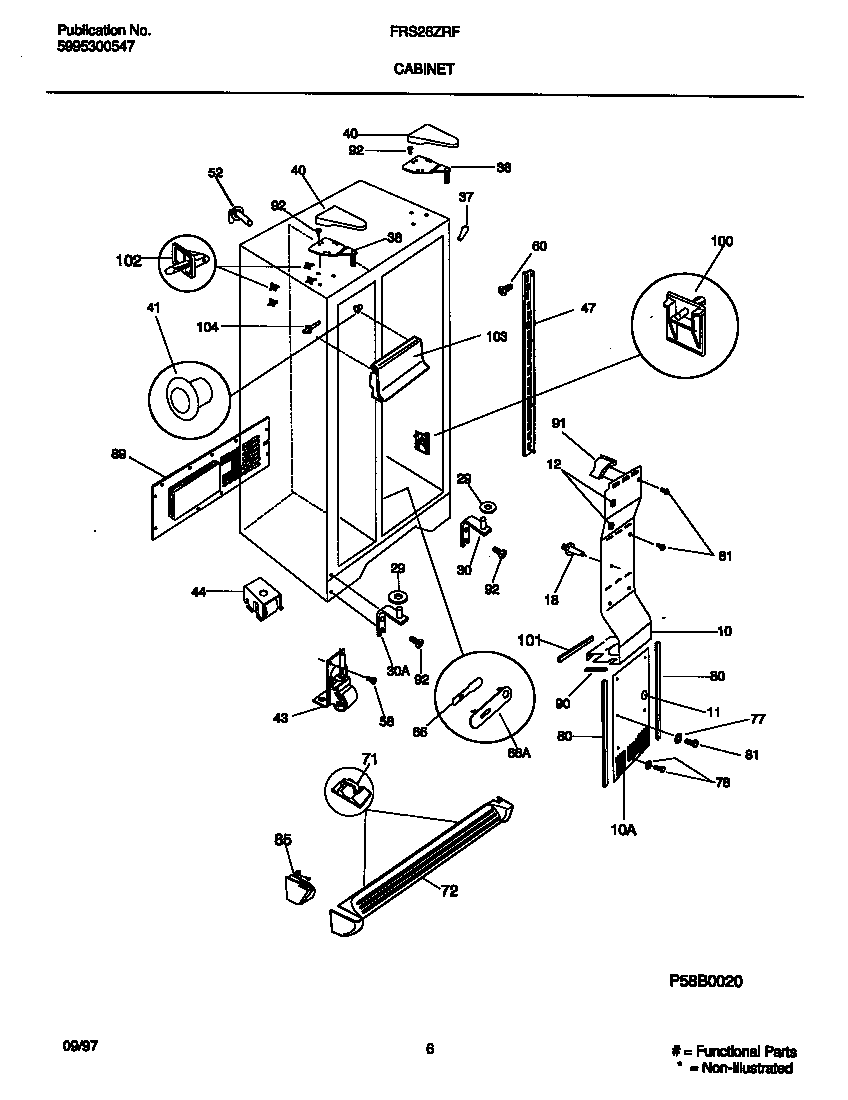

FRS26ZRFW3 04 – CABINET

FRS26ZRFW3 04 – CABINET

Written by

in

FRS26ZRFW3 04 – CABINET

Products

PositionProduct
*59843WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*598465303321319 Frigidaire Refrigerator White Touch Up Paint
*59844PLUG, BUTTON, CABINET LINER (NI)
10WCI 215637602
10WCI 215637400
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18BSUPPORT-AIR DUCT CVR,1.83“ LONG
18AWCI 5303289043
29BWCI 215314300
29CWCI 215598900
29AWCI 215003200
30AWCI 218730700
30WCI 215009100
30WCI 215008900
30CWCI 218730900
30BWCI 218730800
37WCI 5303321081
38BWCI 218215217
38AWCI 218215219
40WCI 5303318773
41A5304509705 Frigidaire Refrigerator Grommet
41B5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
43AWCI 218615300
43BWCI 5303289062
43CSCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
605304455852 Frigidaire Refrigerator Screw
66WCI 215050201
66WCI 218171301
71218515401 Frigidaire Refrigerator Clip
72WCI 218359601
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218359802
89WCI 215176300
90AWCI 215022602
90BWCI 5303322647
91WCI 218770000
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101WCI 215305702
102SUPPORT, MOTOR BRKT, & SHELF
103WCI 215413100
104BSCREW-ICE DR SUPT, CR SPCL PAN HD, 8-15(A) X 1-5/8 (NOTILLUSTRATED)
104ASUPPORT-ICE ACCESS DR
