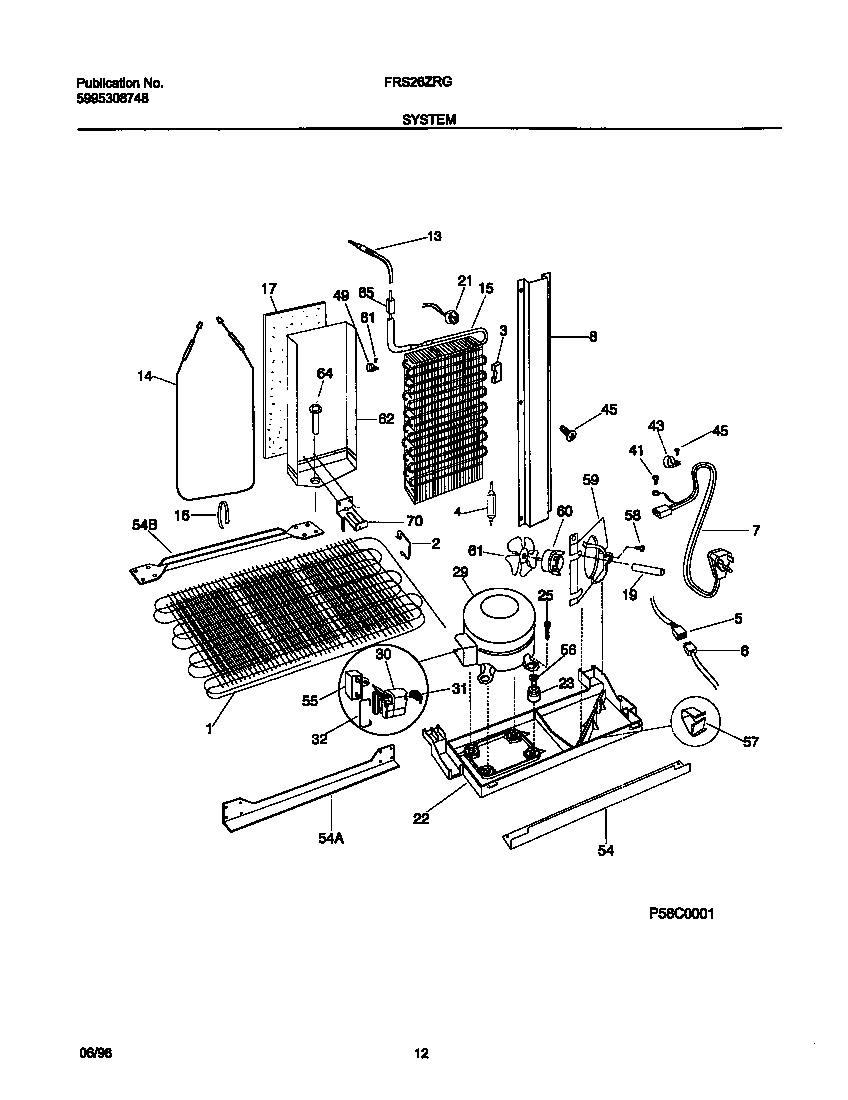

FRS26ZRGB0 07 – SYSTEM

FRS26ZRGB0 07 – SYSTEM

Written by

in

FRS26ZRGB0 07 – SYSTEM

Products

PositionProduct
*746415308000133 Frigidaire Refrigerator Clamp
*74636WIRING HARNESS,FRZR CONTROLS
*74634SPACER TUBE
*74637WIRING HARNESS,FILTER HEATER
*74647WCI 5303917166
*74635WIRING HARNESS,REFR CONTROLS
*74639TUBE-INLET (NOT ILLUSTRATED)
*746435304455852 Frigidaire Refrigerator Screw
*74642WCI 218769200
*74638SCREW,HEX HD SER WSHR ,8-18 X 0.375
*74646WCI 215004800
*74645WCI 215004700
1WCI 218787900
2WCI 5303289029
3WCI 218679603
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 218646100
6WIRING HARNESS,MACHINE COMPT
7WCI 215459201
8WCI 218803400
13WCI 215006701
14218169802 Frigidaire Refrigerator Defrost Heater
15WCI 218691301
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5303289496
19WCI 218631200
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 218811100
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 218773500
295304475102 Frigidaire Refrigerator Compressor Kit
30WCI 216008902
31WCI 5303308603
32WCI 215012000
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455651 Frigidaire Refrigerator Screw
49WCI 215506900
54WCI 5303289292
54WCI 5303289027
54WCI 5303289311
55CAPACITOR-RUN,210-230 VAC ,15 MICROFARAD
56WCI 218769300
57WCI 218247300
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 5303289031
60WCI 215501901
61WCI 5303289032
62WCI 215048701
64241957901 Frigidaire Refrigerator Tube-Drain
65WCI 5303289301
70WCI 5303289041
815304455650 Frigidaire Refrigerator Screw
