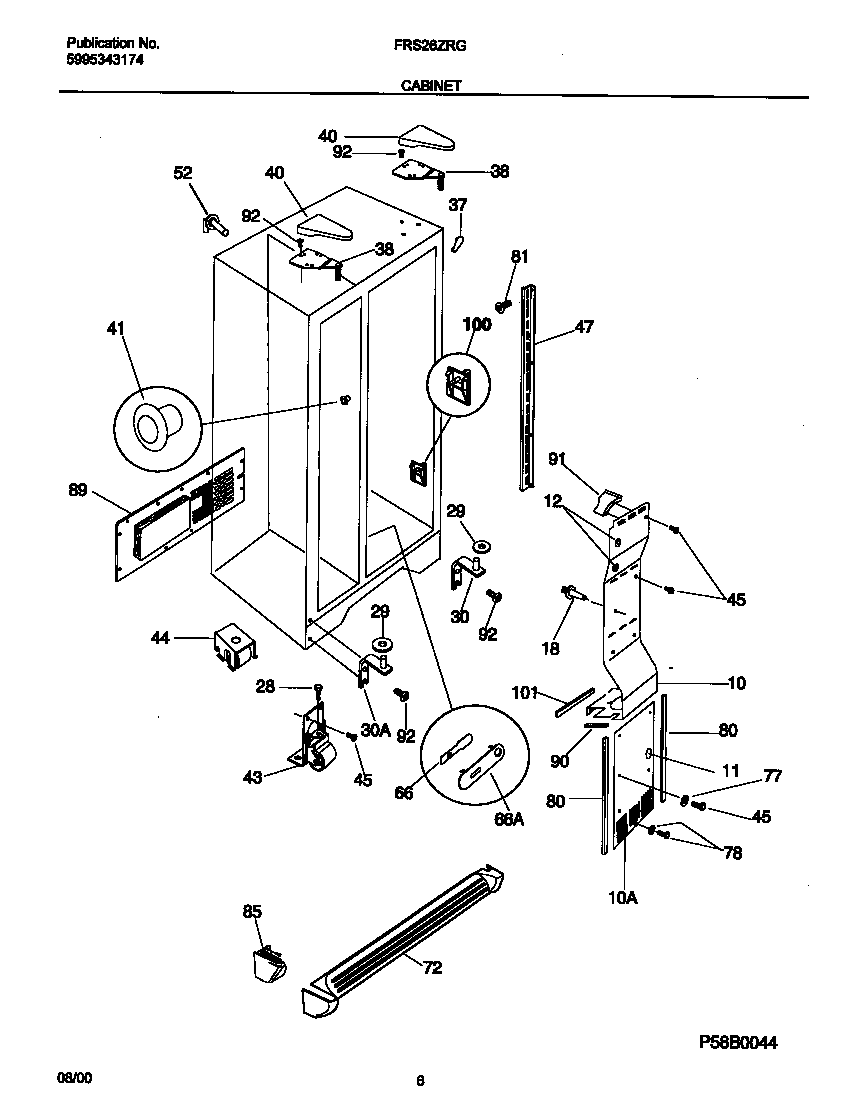

FRS26ZRGBB 04 – CABINET

FRS26ZRGBB 04 – CABINET

Written by

in

FRS26ZRGBB 04 – CABINET

Products

PositionProduct
*15689WCI 218902101
*15684WCI 218871201
*15685WCI 218979701
*15687SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*15683SUPPORT-AIR DUCT CVR,1.83“ LONG
*15682NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*156905303321321 Frigidaire Refrigerator Black Touch-Up Paint
*15688WCI 5303322647
*156865304500407 Frigidaire Refrigerator Shelf Mounting Grommet
10BWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10WCI 215637602
10AWCI 215637402
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
28WCI 5303289062
29WCI 215314301
30WCI 218993801
30AWCI 218993601
30BWCI 218979601
37WCI 5303321083
38BWCI 218215248
38AWCI 218215246
40WCI 5303323268
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
455304455651 Frigidaire Refrigerator Screw
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 218171301
66WCI 215050201
72WCI 218359609
77WASHER-NYLON,3/16 X 5/8 OD
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218922706
89WCI 218871501
90WCI 215022602
91WCI 218964701
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101AWCI 215305702
101BWCI 218663103
