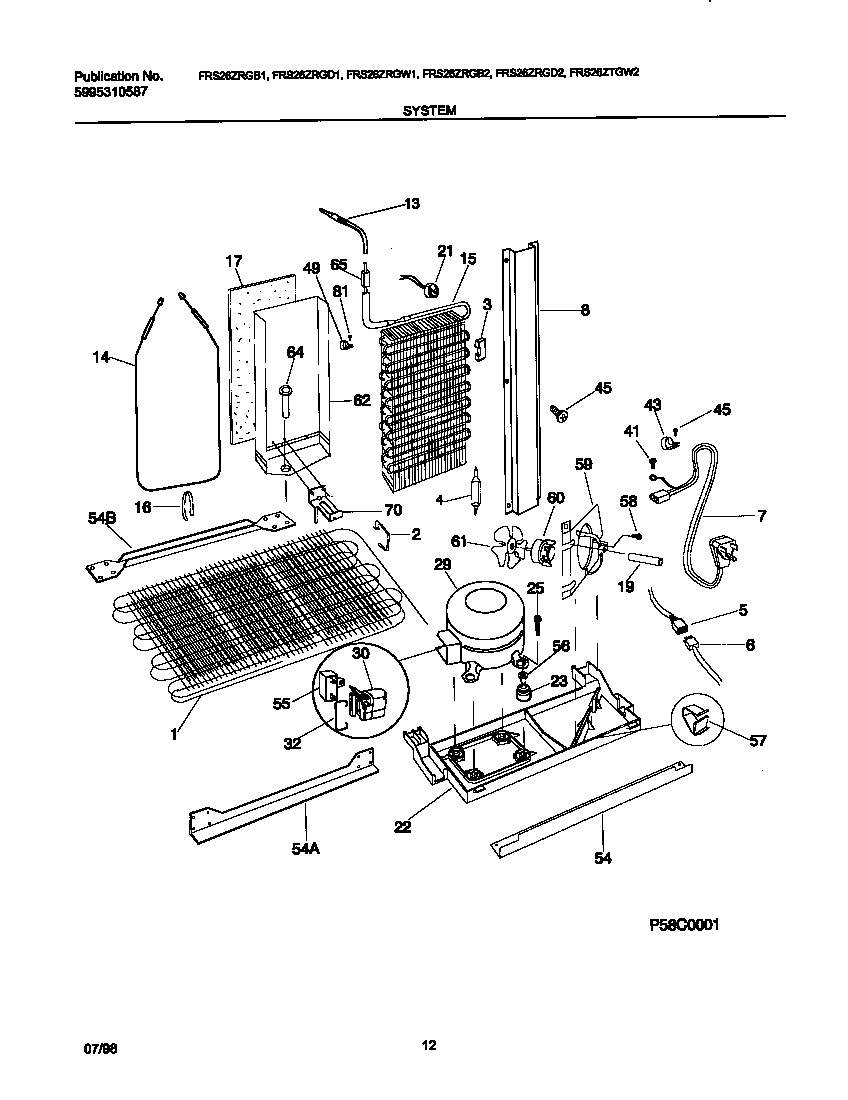

FRS26ZRGD2 07 – SYSTEM

FRS26ZRGD2 07 – SYSTEM

Written by

in

FRS26ZRGD2 07 – SYSTEM

Products

PositionProduct
*03077WIRING HARNESS,FILTER HEATER
*03079SCREW,HEX HD SER WSHR ,8-18 X 0.375
*03075SPACER TUBE
*03088WCI 5303917166
*03080TUBE-INLET (NOT ILLUSTRATED)
*03083WCI 218769200
*03078WIRING HARNESS,FRZR CONTROLS
*03076WIRING HARNESS,REFR CONTROLS
*030825308000133 Frigidaire Refrigerator Clamp
*030845304455852 Frigidaire Refrigerator Screw
*03086WCI 215004700
*03087WCI 215004800
1WCI 218787900
2WCI 5303289029
3WCI 218679603
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 218646100
6Wiring Harness,w/valve diodes
7WCI 215459201
8WCI 218803400
13WCI 215006701
14218169802 Frigidaire Refrigerator Defrost Heater
15WCI 218691301
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5303289496
19WCI 218631200
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 218811100
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 218773500
29WCI 5303917933
30WCI 216008903
31WCI 5303322093
32218762900 Frigidaire CLAMP
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455651 Frigidaire Refrigerator Screw
49WCI 215506900
54WCI 5303289292
54WCI 5303289311
54WCI 5303289027
55CAPACITOR-RUN,210-230 VAC ,15 MICROFARAD
56WCI 218769300
57WCI 218247300
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 5303289031
60WCI 215501901
61WCI 5303289032
62WCI 215048701
64241957901 Frigidaire Refrigerator Tube-Drain
65WCI 5303289301
70WCI 5303289041
815304455650 Frigidaire Refrigerator Screw
