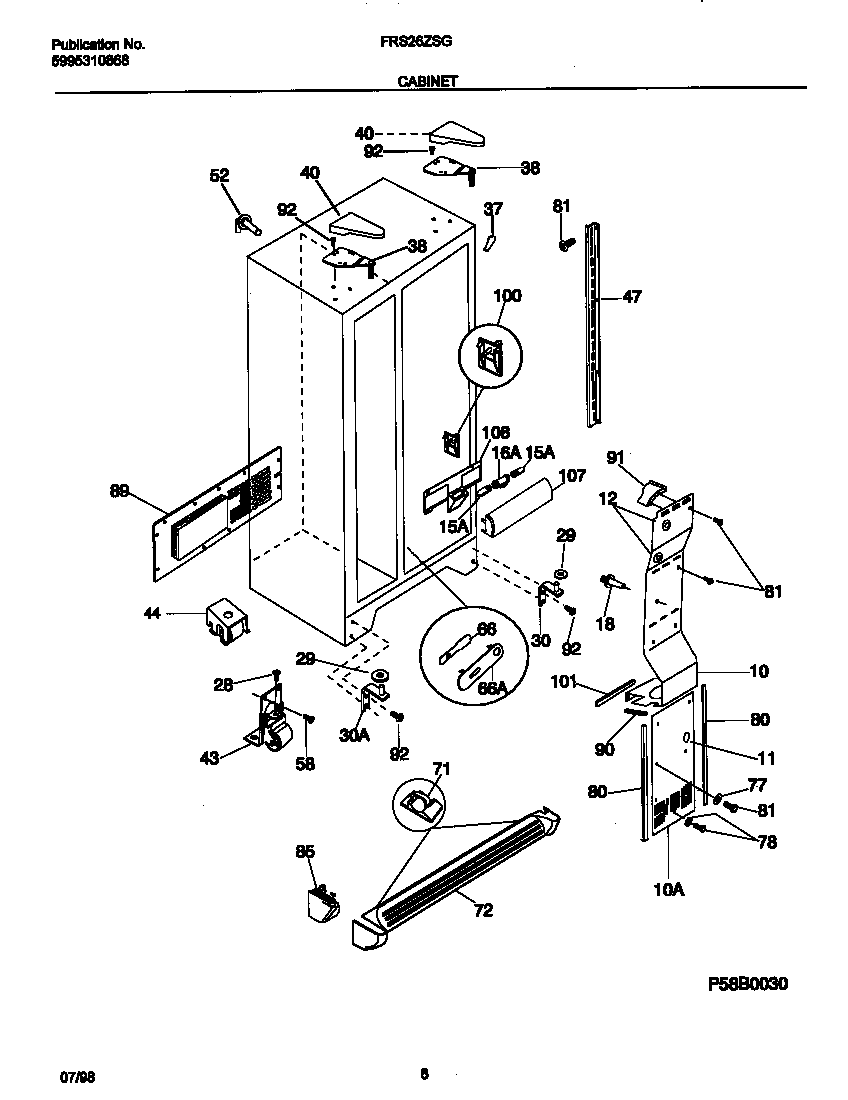

FRS26ZSGB2 04 – CABINET

FRS26ZSGB2 04 – CABINET

Written by

in

FRS26ZSGB2 04 – CABINET

Products

PositionProduct
*046195303321321 Frigidaire Refrigerator Black Touch-Up Paint
*04617WASHER, .28 X .62 X .19, NYLON
*04616WCI 215598900
*04610WCI 218871201
*04614SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*04615WCI 5303322647
*04609SUPPORT-AIR DUCT CVR,1.83“ LONG
*04608NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*04620PLUG, BUTTON, CABINET LINER (NI)
*04613WCI 218730900
*04611WCI 218730700
*04612WCI 218730800
10AWCI 215637401
10WCI 215637602
10BWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
15WCI 218708700
16WCI 5303299157
18WCI 5303289043
28WCI 5303289062
29WCI 215314301
30WCI 215008900
30WCI 215009100
37WCI 5303321083
38WCI 218215220
38WCI 218215218
40WCI 218374406
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 215050201
66WCI 218171301
71218515401 Frigidaire Refrigerator Clip
72WCI 218359609
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218359806
89WCI 215176300
90WCI 215022602
91WCI 218836401
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101WCI 215305702
107WCI 218835901
108WCI 218834202
