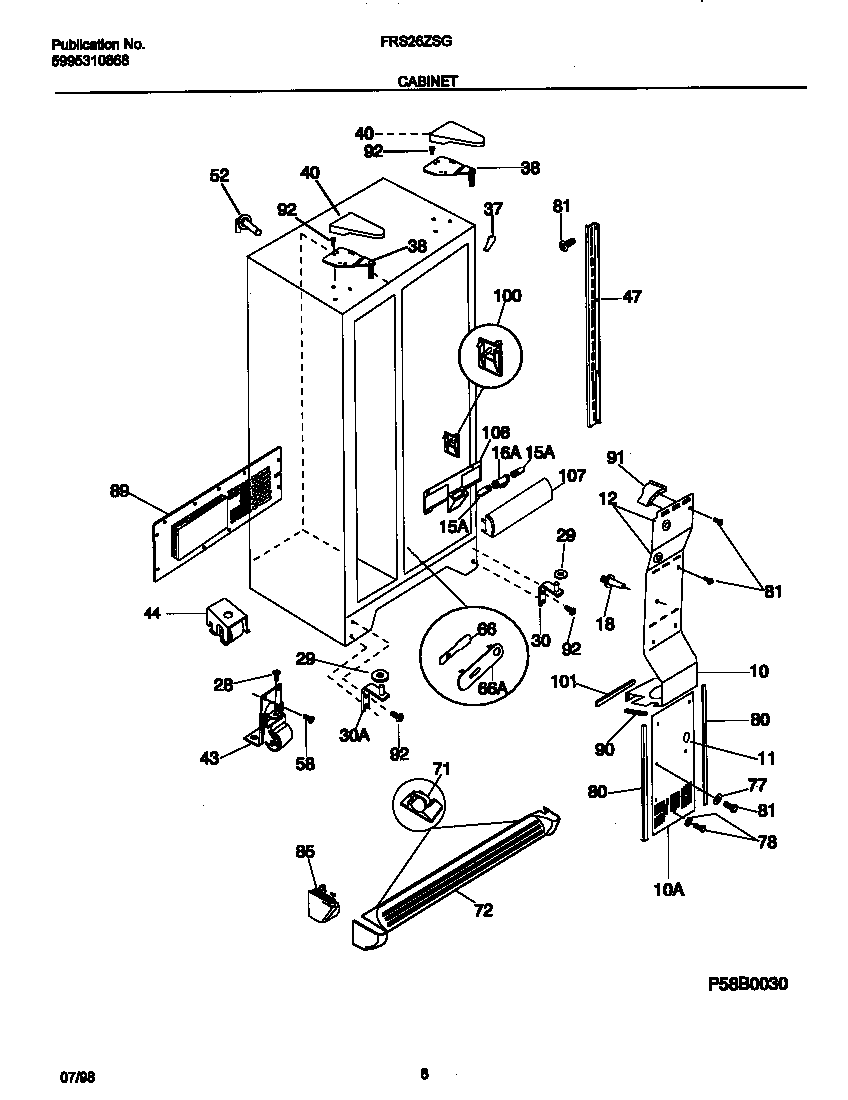

FRS26ZSGW2 04 – CABINET

FRS26ZSGW2 04 – CABINET

Written by

in

FRS26ZSGW2 04 – CABINET

Products

PositionProduct
*04617WASHER, .28 X .62 X .19, NYLON
*04616WCI 215598900
*04610WCI 218871201
*04612WCI 218730800
*04611WCI 218730700
*04614SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*04615WCI 5303322647
*04609SUPPORT-AIR DUCT CVR,1.83“ LONG
*04608NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*04620PLUG, BUTTON, CABINET LINER (NI)
*046185303321319 Frigidaire Refrigerator White Touch Up Paint
*04613WCI 218730900
10AWCI 215637401
10BWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10WCI 215637602
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
15WCI 218708700
16WCI 5303299157
18WCI 5303289043
28WCI 5303289062
29WCI 215314301
30WCI 215009100
30WCI 215008900
37WCI 5303321081
38WCI 218215219
38WCI 218215217
40WCI 218374407
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 215050201
66WCI 218171301
71218515401 Frigidaire Refrigerator Clip
72WCI 218359601
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218359802
89WCI 215176300
90WCI 215022602
91WCI 218836401
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101WCI 215305702
107WCI 218835901
108WCI 218834202
